Product Description

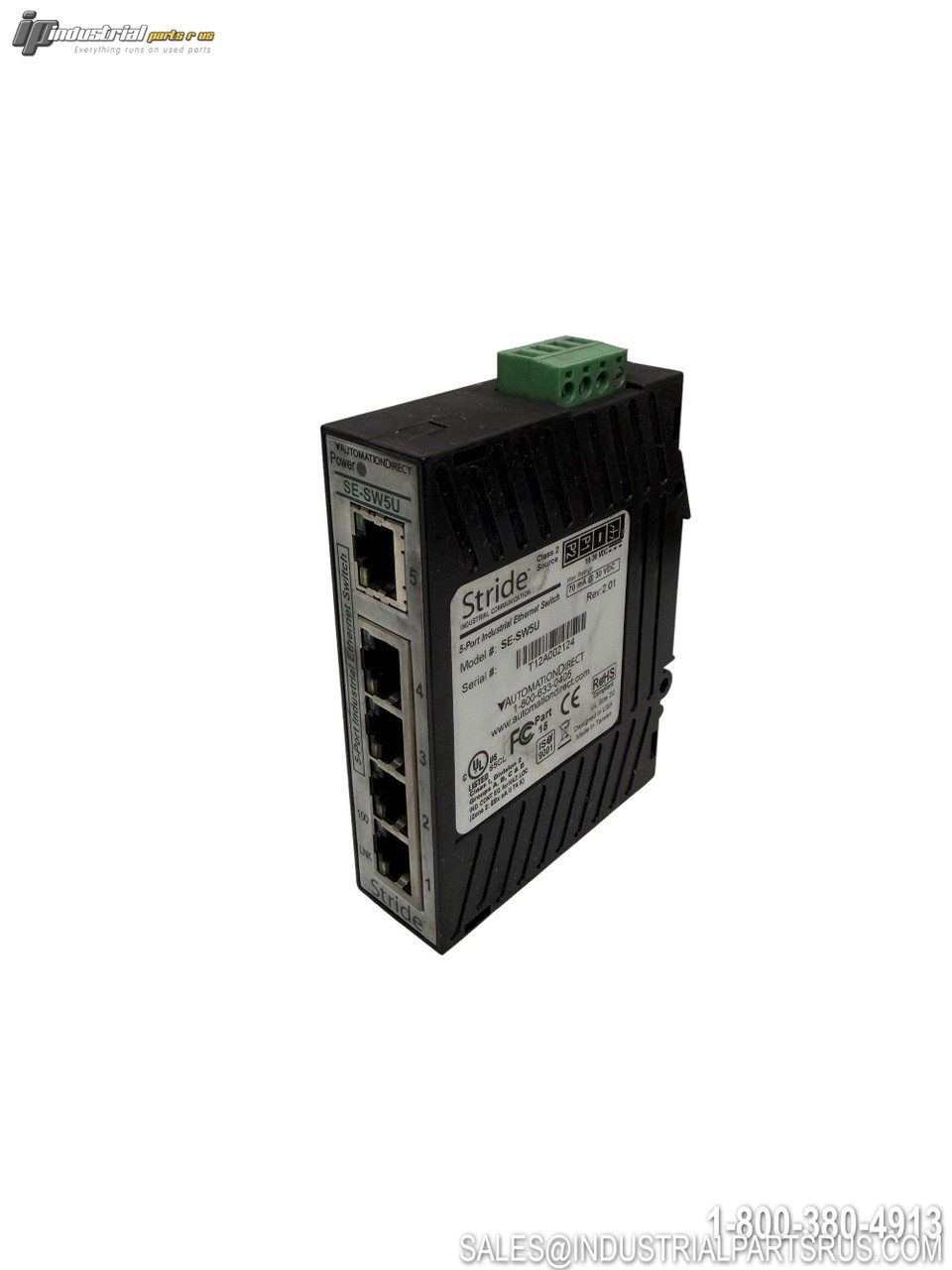

The Stride SE-SW5U is a SlimLine industrial unmanaged Ethernet switch designed for harsh industrial environments. This 5-port switch features 10/100BaseT RJ45 Ethernet ports with auto-crossover capability, redundant power inputs with surge and spike protection, and store & forward wire speed switching with full-duplex flow control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Stride |
| Model/Part Number | SE-SW5U |
| Type | Industrial Ethernet Switch |
| Switch Type | Unmanaged |
| Number of Ports | 5 |
| Port Type | 10/100BaseT RJ45 |
| Port Speed | 10/100 Mbps Auto-Detect |
| Input Voltage | 10-30 VDC |
| Power Consumption | 3.0W |
| Operating Temperature | -10 to +60°C |
| Housing Material | Lexan Plastic |
| IP Rating | IP40 |
| Mounting Type | 35mm DIN Rail |
| Auto-Crossover | Yes |
| Power Protection | Redundant inputs with surge protection |
| Ethernet Isolation | 1500 VRMS |
| Switching Method | Store & Forward |
| Duplex | Full-Duplex with Flow Control |
| Hazardous Location Rating | Class I Div 2 Groups A,B,C,D |
| Certifications | UL, CSA (CUL), CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Stride
Part Number SE-SW5U
Shelf D-6 Tub 1
Model SE-SW5U
MPN SE-SW5U
Type Industrial Ethernet Switch
