Product Description
The Sylvania LU400/Multi-kit (Catalog No. 47364) is a magnetic core and coil High Pressure Sodium (HPS) ballast kit designed to operate one 400-watt S51 HPS lamp. The kit includes the core and coil ballast, a dry film capacitor, and a pulse ignitor, and supports four input voltages (120V, 208V, 240V, and 277V) via a quad-tap configuration. It features an HX-HPF (High Power Factor) circuit type and a pulse ignitor starting method, making it compatible with a wide range of commercial and industrial HID lighting fixtures.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sylvania (Osram Sylvania / Ledvance) |
| Model / Order Code | LU400/Multi-kit |
| Catalog Number | 47364 |
| Ballast Type | Magnetic Core & Coil HID Ballast Kit |
| Light Source / Lamp Type | High Pressure Sodium (HPS) |
| Wattage | 400W |
| ANSI Code | S51 |
| Input Voltage (Multi-Tap) | 120V / 208V / 240V / 277V |
| Number of Taps | 4-Tap (Quad Tap) |
| Amperage Rating | 3.9A / 2.25A / 1.95A / 1.70A (120/208/240/277V) |
| Circuit Type | HX-HPF (High Power Factor CWA) |
| Starting Method | Pulse Ignitor |
| Frequency | 60 Hz |

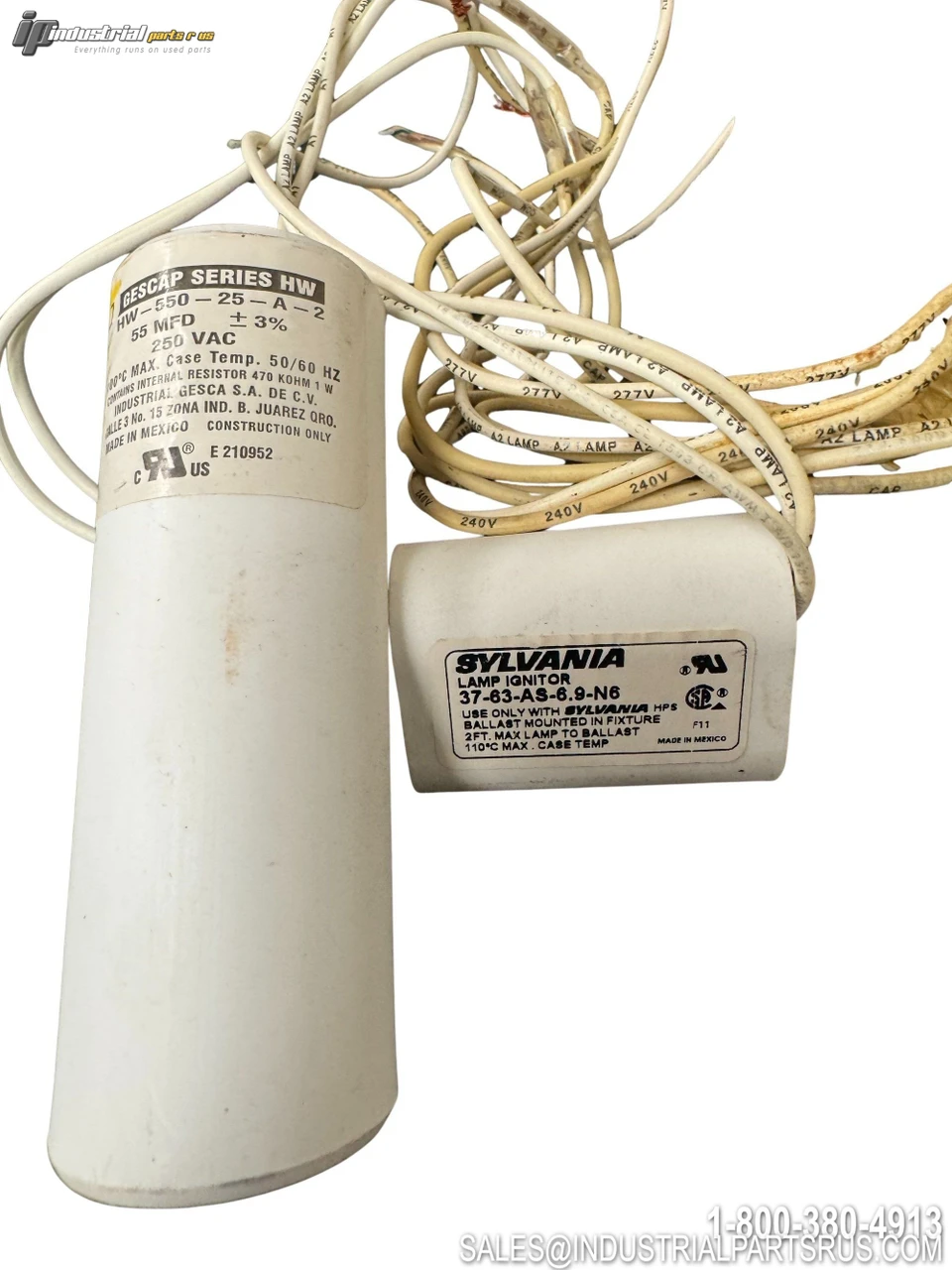

| Kit Contents | Core & Coil Ballast, Dry Film Capacitor, Pulse Ignitor |
| Capacitor Diameter | 1.75 in |
| Minimum Starting Temperature | -40°F / -40°C |
| Dimensions (L x W x H) | 4.75 in x 4.25 in x 4.00 in |
| Weight | 9.6 lbs |
| Lamps Operated | 1 x 400W S51 HPS Lamp |
| HS Tariff Code | 8504.10.0000 |
| Case Quantity | 1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 3.9/2.25/1.95/1.70A
Manufacturer Sylvania
Part Number LU400/MULTI-KIT
Shelf K-4
Model LU400/MULTI-KIT
MPN LU400/MULTI-KIT
Type Transformer
