Product Description

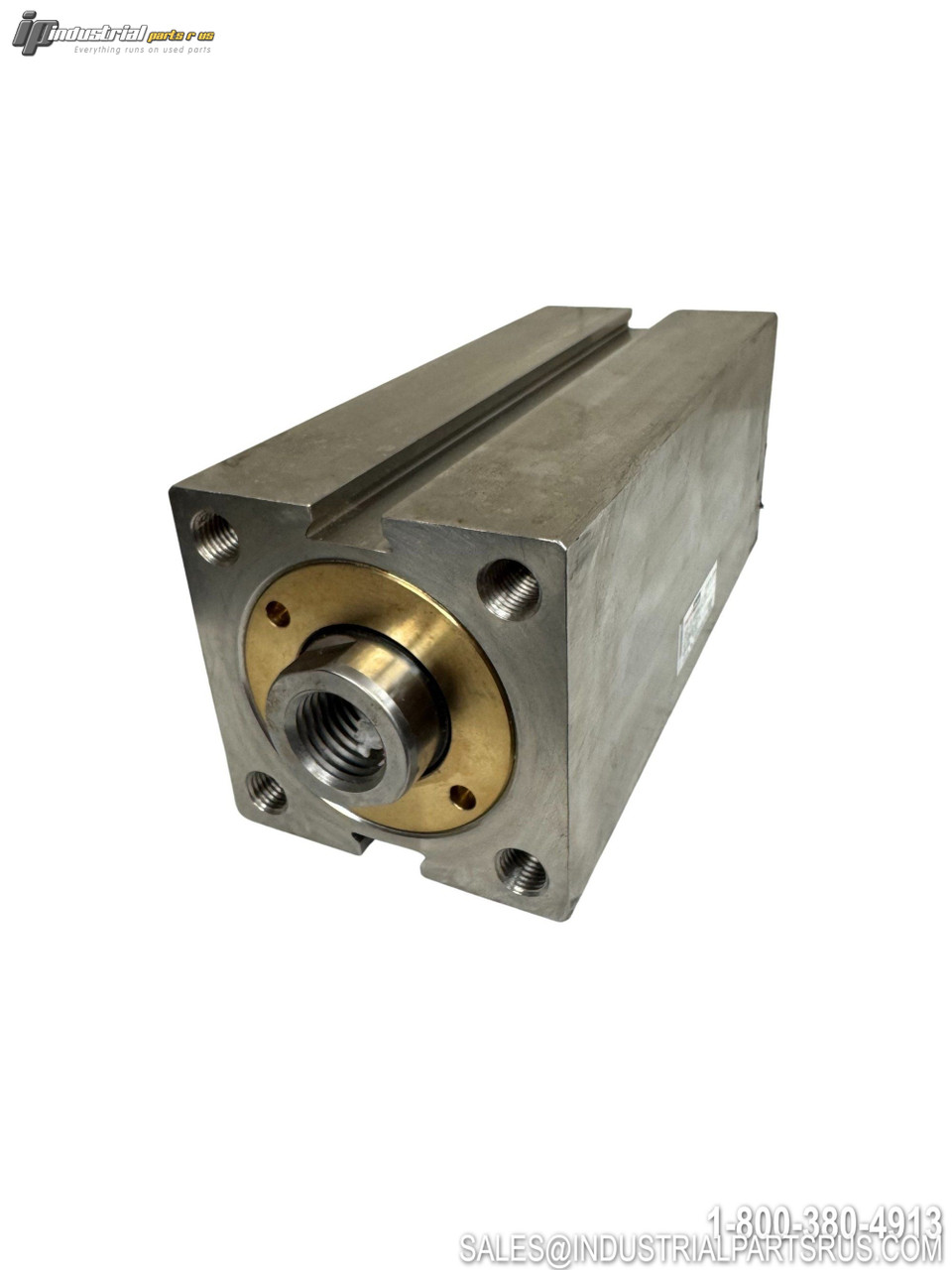

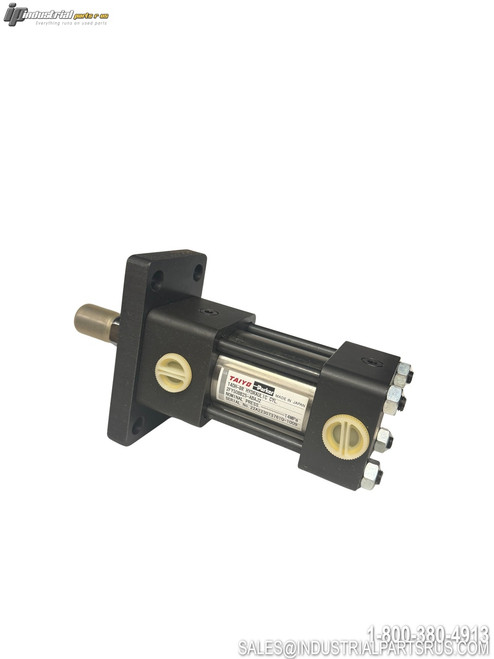

The Taiyo 160S-1R is a space-saving, compact design double-acting single-rod hydraulic cylinder from Taiyo's 160S-1 Series, engineered for high-force applications where mounting space is limited. It operates at a nominal pressure of 16 MPa and is rated for up to 10 million cycles. The cylinder features an abrasion-resistant hydrogenated nitrile rubber (HNBR) packing as standard, a special copper alloy rod gland, and a carbon steel body, making it suitable for demanding industrial machine tool environments. Bore sizes range from 20 mm to 125 mm with configurable stroke lengths to suit a wide range of applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Taiyo |
| Model / Series | 160S-1R |
| Cylinder Type | Double Acting, Single Rod |
| Nominal Pressure (Max Operating) | 16 MPa (160 bar / ~2,320 PSI) |
| Proof / Test Pressure | 24 MPa |
| Minimum Operating Pressure | 0.3 MPa |
| Piston Speed (Operating) | 8 – 100 mm/s |
| Temperature Range (Standard Type) | -10°C to +120°C |
| Temperature Range (AX/AZ Switch Set) | -10°C to +70°C |
| Temperature Range (WR/WS Switch Set) | -10°C to +60°C |
| Seal / Packing Material | Hydrogenated Nitrile Rubber (HNBR) — Standard |
| Cylinder Body Material | Carbon Steel for Machine Structure |
| Rod Gland Material | Special Copper Alloy |
| Suitable Working Fluid | Petroleum-Based Hydraulic Oil |
| Available Bore Sizes | 20, 25, 32, 40, 50, 63, 80, 100, 125 mm (configurable) |
| Mounting Style (Standard) | SD (Foot / Side Mount); LD, FA, ST available |
| Port Thread Options | Rc (Tapered) or G (Straight) thread |
| Rod End Thread Options | Female thread or Male thread |
| Switch Compatibility | AX, AZ (standard); WR, WS (cutting fluid proof type) |
| Rated Cycle Life | Up to 10,000,000 cycles at 16 MPa |
| Design Standard | JIS B8367 / Space-Saving Compact Design |
| Variant Note | "R" = Standard single-rod type (160SW-1R = Cutting Fluid Proof type) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Max. PSI 2320 PSI (approx.)
Manufacturer Taiyo
Part Number 160S-1R
Shelf B-14
Bore Diameter 20-125 mm
Model 160S-1R
MPN 160S-1R
Type Hydraulic Cylinder
