Product Description

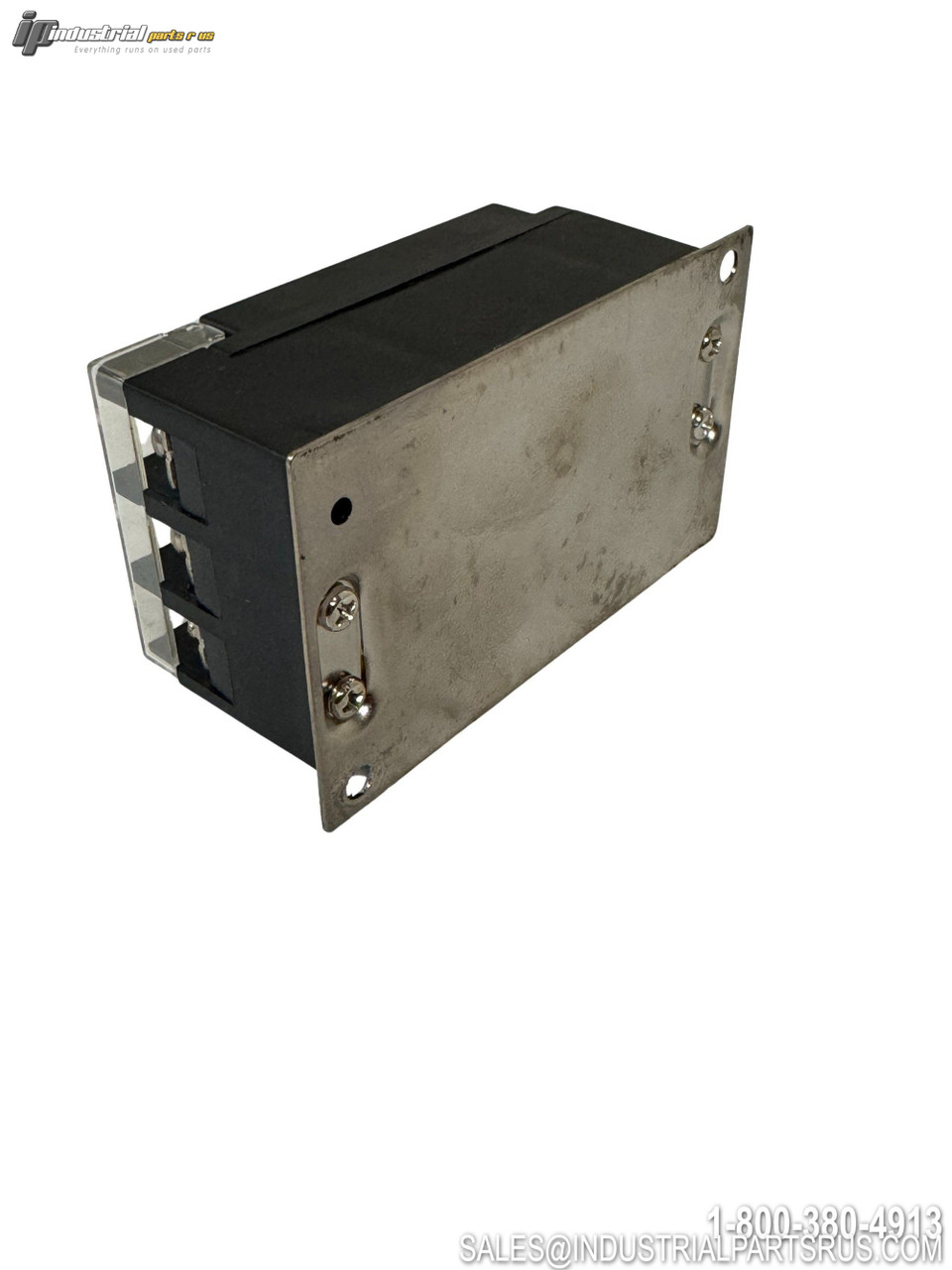

The TDK-Lambda RSEN-2003 is a single-phase EMC/EMI power line filter rated at 3 amps and 250VAC/250VDC, designed to suppress conducted electromagnetic interference on AC or DC power lines. It features an integrated terminal block connection, a compact low-profile chassis-mount enclosure (with optional DIN rail mount via -D suffix), and uses TDK ferrite core material for broadband noise attenuation across a wide frequency range. Rated for up to 750W, the RSEN series is suitable for general-purpose industrial, medical, test, and communications applications requiring compliance with CISPR and related EMC standards.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TDK-Lambda |
| Model / Part Number | RSEN-2003 |
| Series | RSEN |
| Product Type | Single-Phase EMC/EMI Power Line Filter |
| Rated Current | 3A |
| Rated Voltage (AC) | 250VAC |
| Rated Voltage (DC) | 250VDC |
| Input Frequency | 47–63 Hz |
| Number of Phases | Single Phase |
| Number of Filter Stages | 1 Stage |
| Leakage Current | 1.0 mA |
| DC Resistance | 250 mΩ |
| Short Circuit Current Rating (SCCR) | 14 kA |
| Common Mode Attenuation ≥25 dB | 0.1–20 MHz |
| Differential Mode Attenuation ≥25 dB | 0.2–30 MHz |
| HV Pulse Protection | None (N) |
| Core Material | TDK Ferrite |
| Terminal / Connection Type | Terminal Block (captive screws & covers) |
| Mounting Type | Chassis Mount (DIN rail mount available with -D suffix) |
| Withstanding Voltage | 2500 VAC |
| Insulation Resistance | 100 MΩ |
| Operating Temperature Range | -25°C to +85°C |
| Height | 35 mm |
| Width | 52 mm |
| Length (Depth) | 87 mm |
| Mass / Weight | 170 g |
| Safety Certifications | UL1283, CSA C22.2 No.8, EN60939-1, EN60939-2 |
| RoHS Compliance | Yes (with exemption) — 2011/65/EU, 2015/863 |
| Lifecycle Status | Active / Current |
| Typical Applications | Industrial, Medical, Test & Measurement, Communications |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture China
Full Load Amps 1.0 mA
Manufacturer TDK-Lambda
Part Number RSEN-2003
Shelf D-6 Tub 1
Model RSEN-2003
MPN RSEN-2003
Type Power Supply
