Product Description

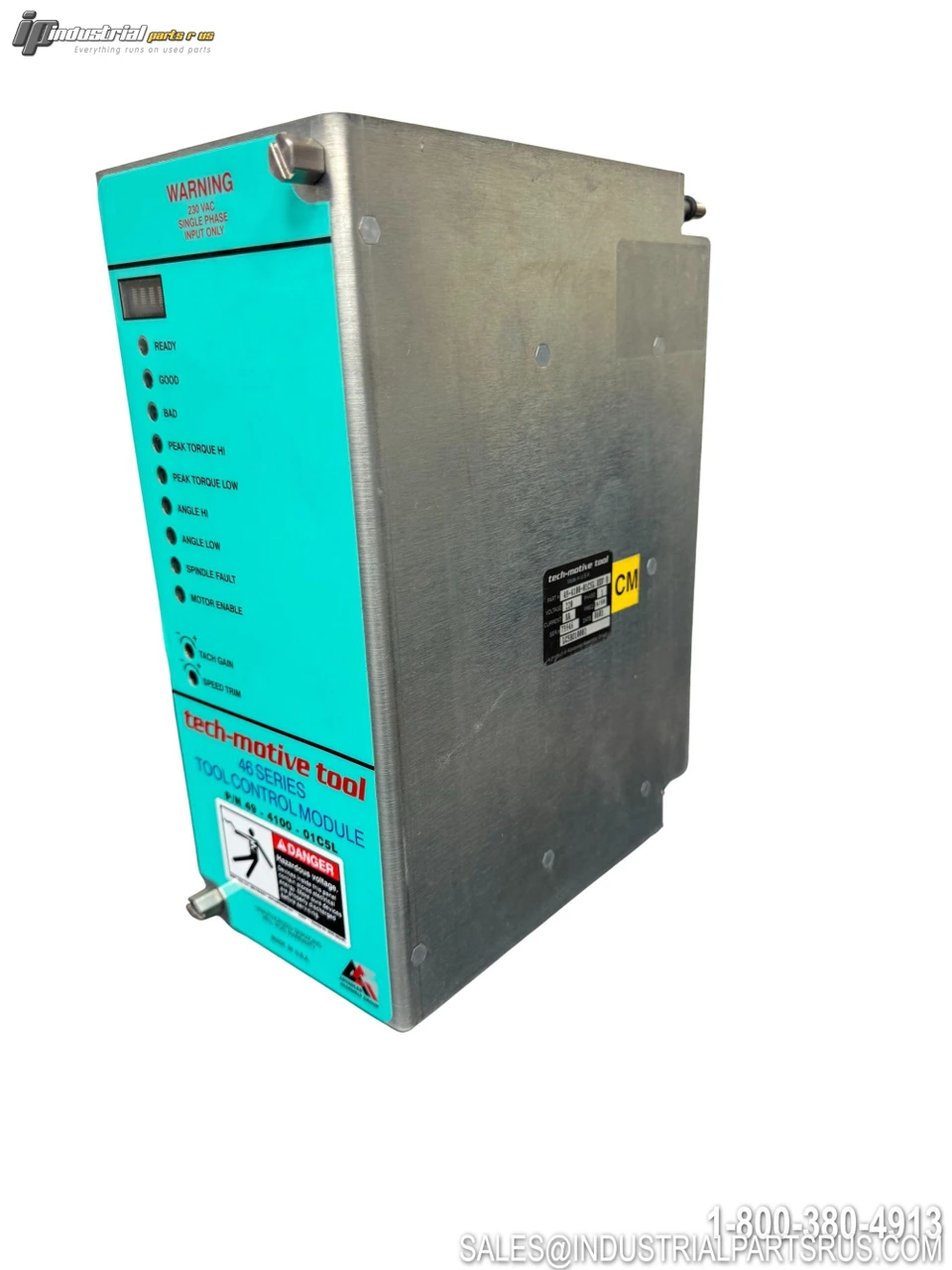

The Tech-Motive Tool 49-4100-01C5L is the Tool Control Module (TCM) for the 46 Series intelligent nutrunner fastening system. It functions as a combined servo amplifier and Device Control Module (DCM), providing closed-loop motor control and torque management for the 46 Series electric nutrunner. This unit accepts 230VAC single-phase input at 8 Amps (1,840W) and operates at 50/60 Hz; it was later superseded by part number 49-4100-03C5, which upgraded the current rating from 8A to 10A. Built on the CS4000 platform with 100% digital control technology, it features an 80186EA processor, integrated GFCI protection, RS-232 diagnostics port, and torque & angle data acquisition capability.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tech-Motive Tool |
| Model / Part Number | 46 series 49-4100-01C5L |
| Description | 46 Series Tool Control Module (TCM) |
| Compatible Nutrunner Series | 46 Series (also compatible with 66 and 116 Series) |
| Input Voltage | 230VAC |
| Phase | Single Phase (1) |
| Current Rating | 8A |
| Frequency | 50/60 Hz |
| Board Revision | REV E (also known as Rev B) |
| Internal PCB Number | 49-4100-01C5 |
| Lot/Cert Code | LC5CO20002 002029 |
| Quality Certification | ISO 9001 Certified |
| Controller Platform | CS4000 Mini Controller / CS4000 System |
| Internal Architecture | Servo Amplifier + Device Control Module (DCM) with 80186EA processor |
| I/O Power Supply | 24 VDC (internal TCM I/O supply) |
| Connector Interface | 37-position connector (nutrunner cable interface) |
| Superseded By | 49-4100-03C5 (10A version) |
| Manufacturer (Also Known As) | GSE Tech-Motive Tool (GSE Inc. / Atlas Copco) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Tech-Motive tool
Part Number 46 SERIES 49-4100-01C5L
Shelf K-36
Model 46 SERIES 49-4100-01C5L
MPN 46 SERIES 49-4100-01C5L
Type Servo Drive
