Product Description

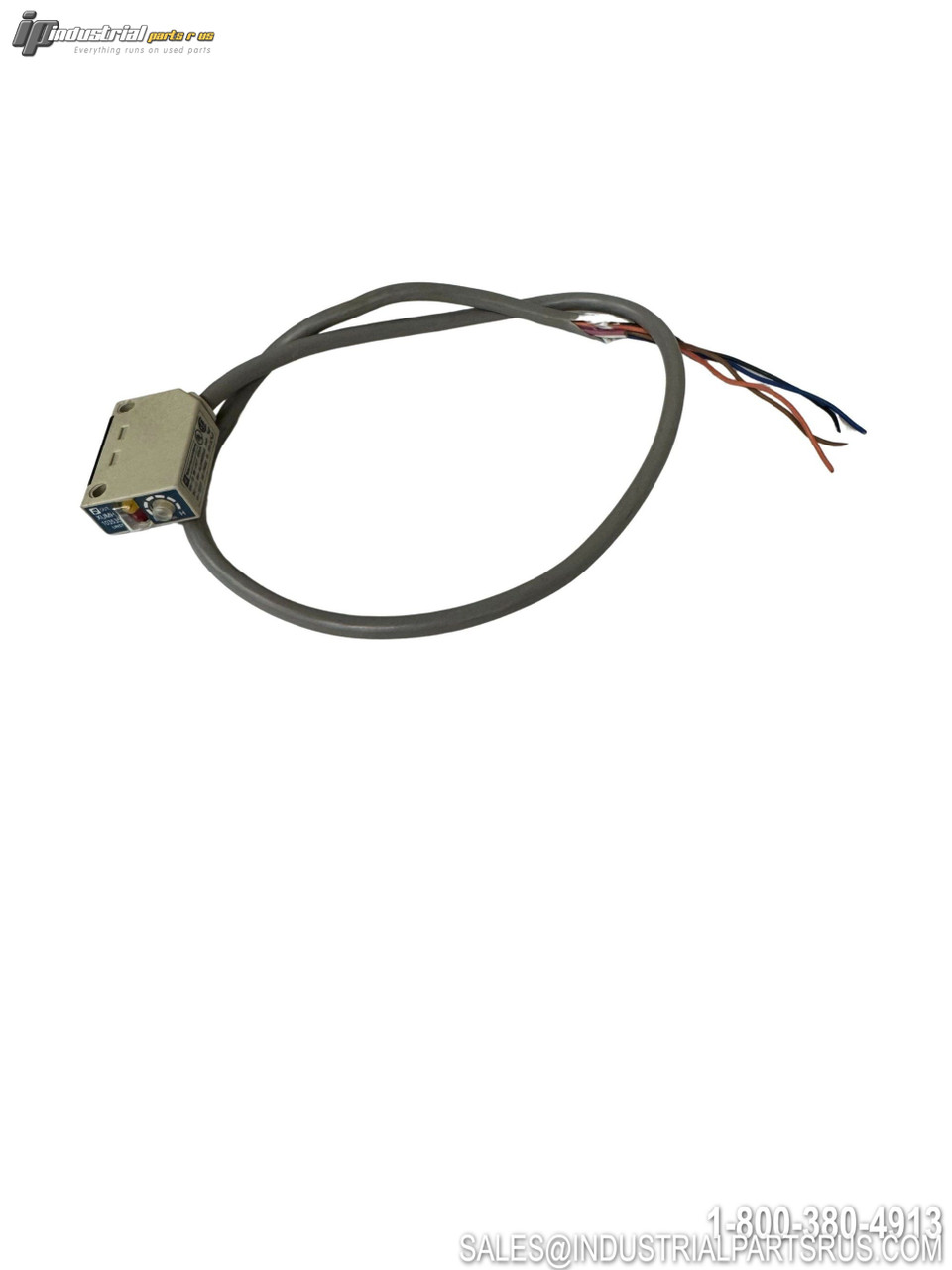

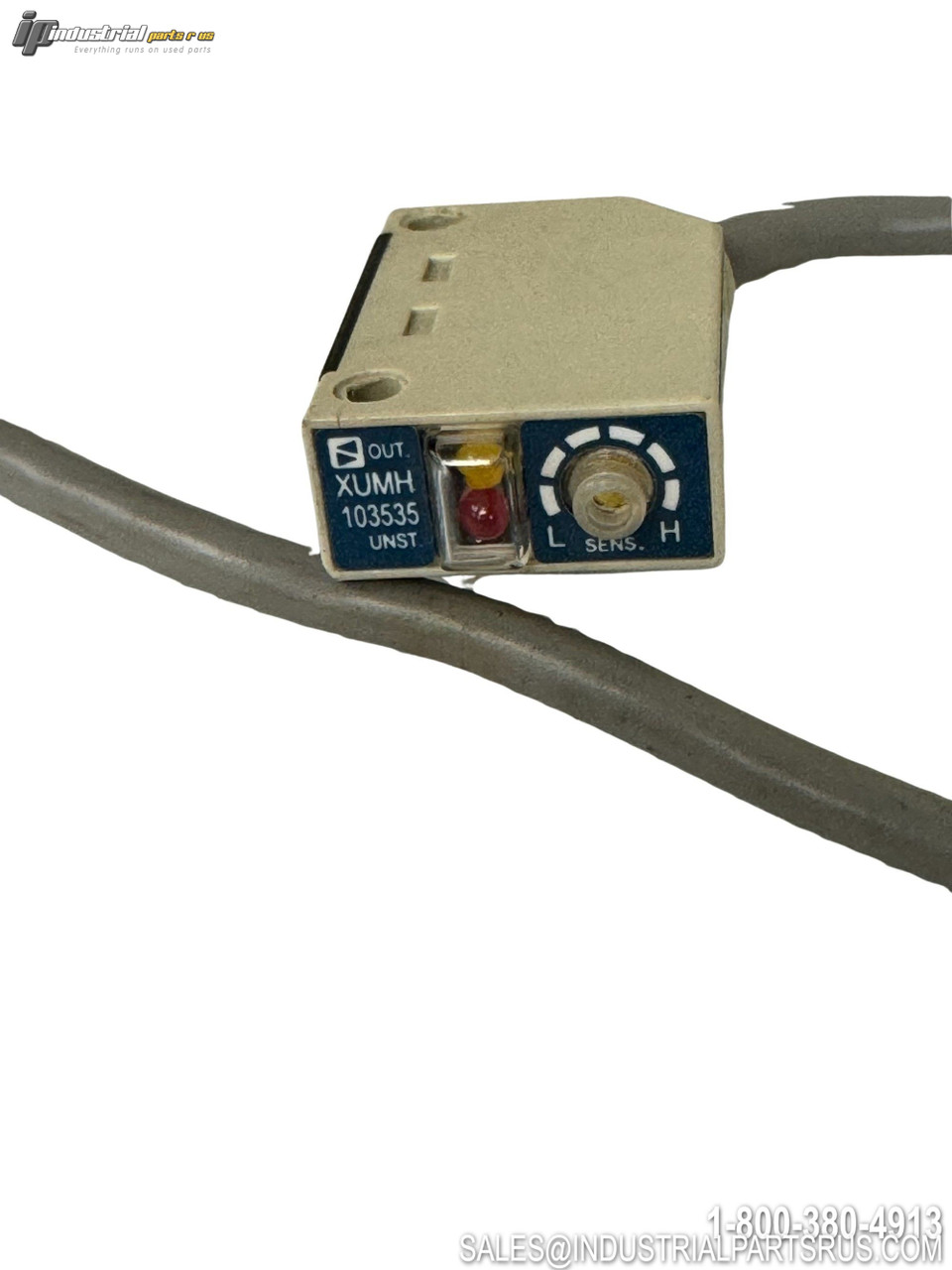

The Telemecanique XUMH103535 is a legacy XUM series miniature photoelectric sensor from Schneider Electric's Osiris sensor family. Designed for non-contact object detection in industrial automation applications such as packaging, conveying, and assembly, this compact sensor features a PNP solid-state output and operates on a 12–24 VDC supply. This part number has been discontinued by the manufacturer and is cross-referenced to the current XUM0APSAL2 multimode replacement in Schneider Electric's substitution guide.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Telemecanique |
| Model / Part Number | XUMH103535 |
| Product Type | Photoelectric Sensor |
| Series / Family | XUM (Miniature Osiris Design) |
| Sensor Design | Miniature (Rectangular) |
| Detection System | Thru-Beam (Infrared) |
| Nominal Sensing Distance (Sn) | 10 m (Thru-Beam) |
| Output Type | PNP (Transistor, Solid-State) |
| Output Function | 1 NO or 1 NC (Programmable) |
| Supply Circuit Type | DC |
| Supply Voltage | 12–24 VDC |
| Load Current (Max) | 100 mA |
| Wiring Technique | 3-Wire |
| Electrical Connection | Pre-wired Cable, 2 m |
| Enclosure / Body Material | Plastic (PBT) |
| Degree of Protection | IP67 |
| Operating Temperature | -25°C to +55°C (-13°F to +131°F) |
| Overload / Short-Circuit Protection | Yes |
| Manufacturer / Parent Company | Schneider Electric (Telemecanique Sensors) |
| Status | Discontinued / Legacy (Obsolete) |
| Modern Replacement | XUM0APSAL2 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Manufacturer Telemecanique
Enclosure Type IP67
Part Number XUMH103535
Shelf GS-48
Model XUMH103535
MPN XUMH103535
Type Photoelectric Sensor
