Product Description

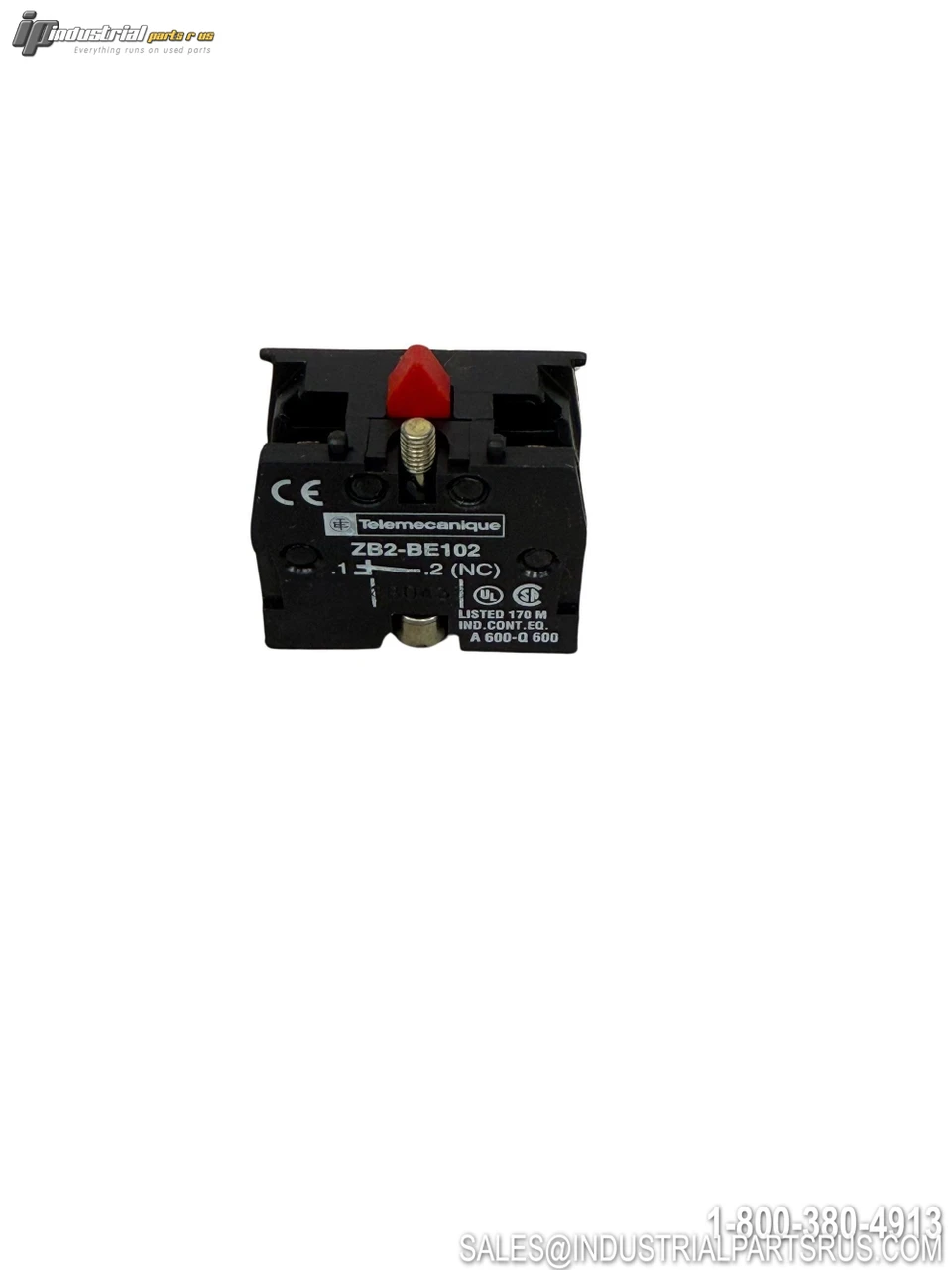

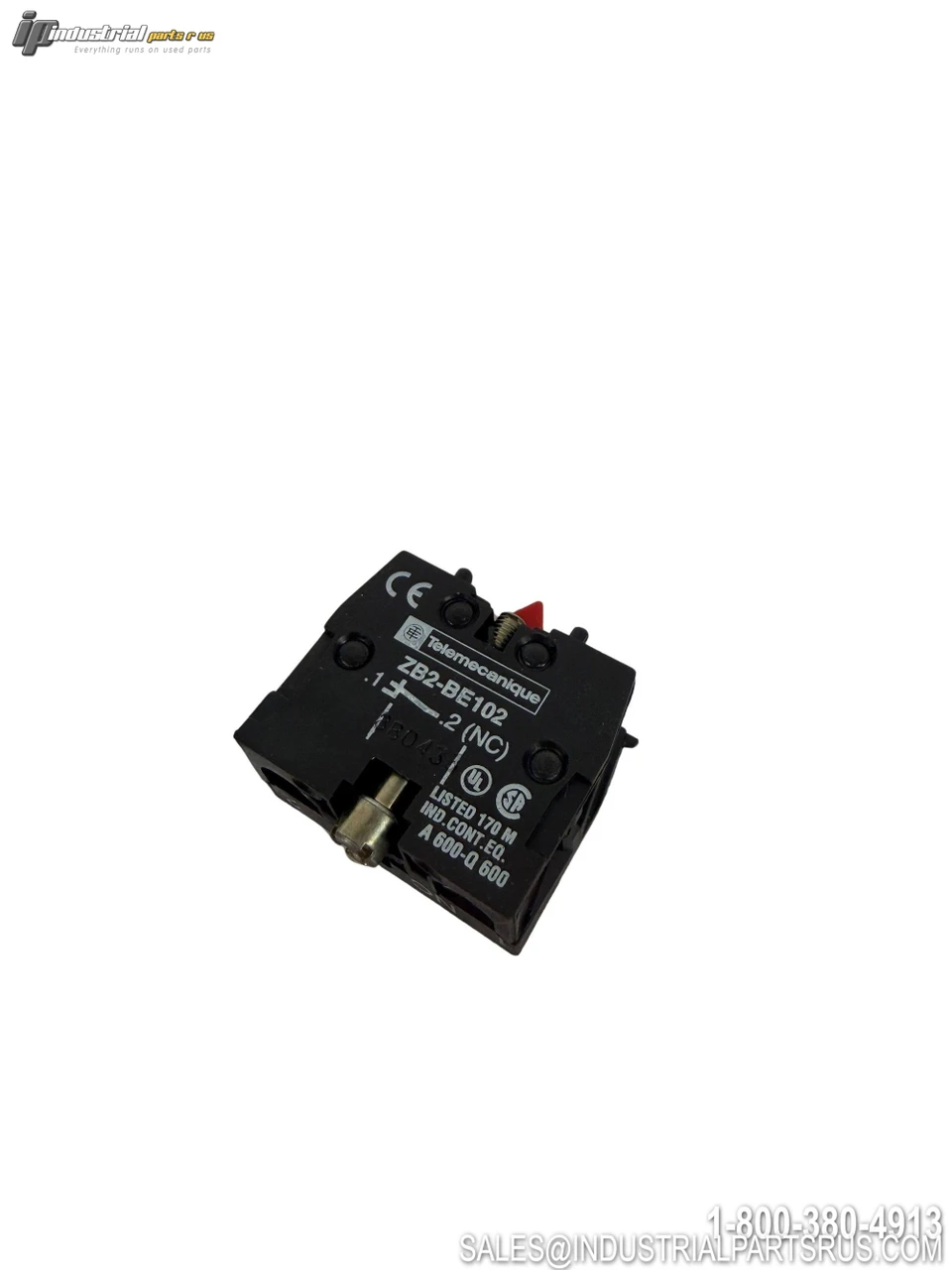

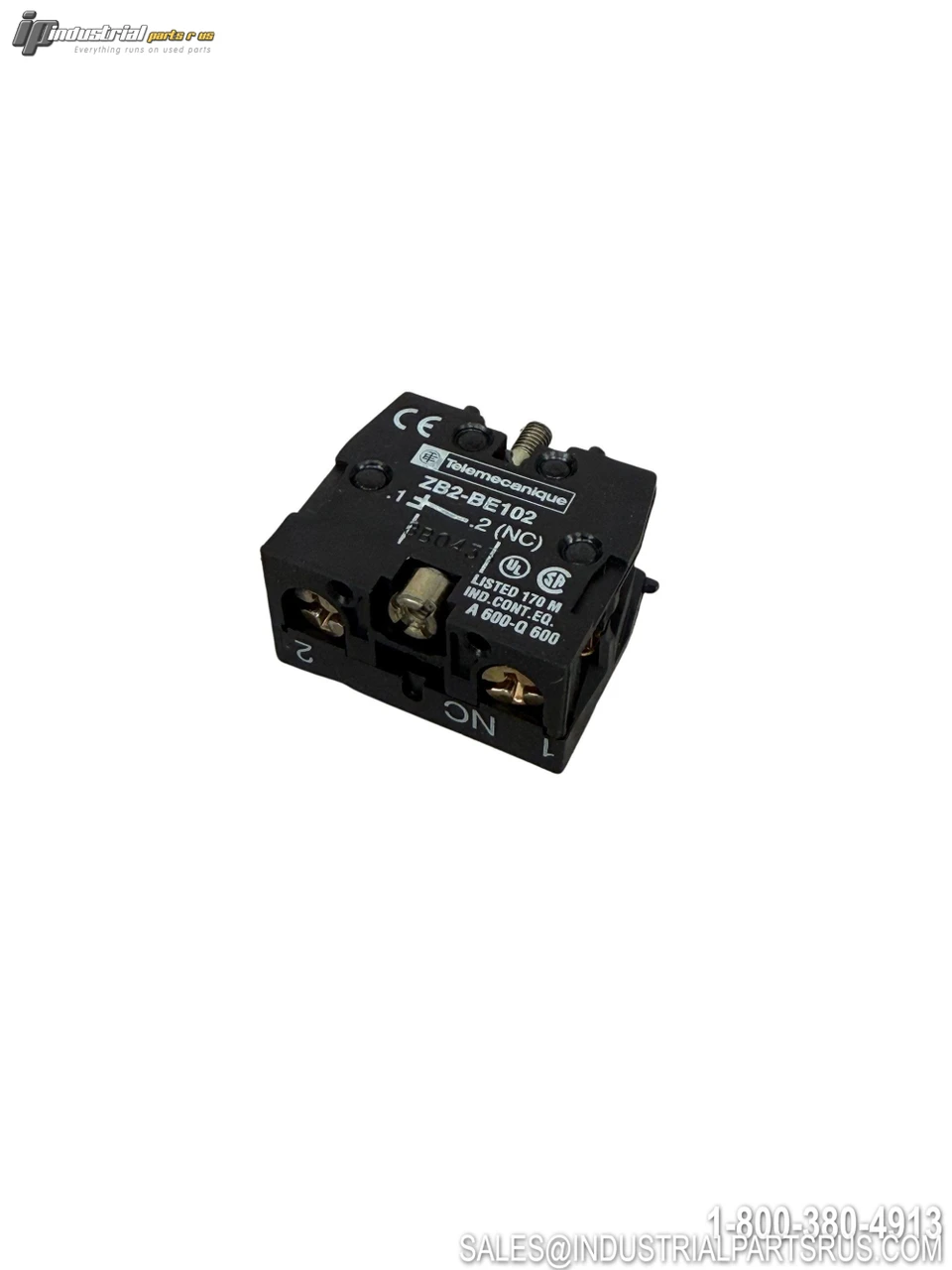

The Telemecanique ZB2-BE102 is a 22mm add-on contact block belonging to the Harmony XB2/XB4 series, designed to mount on the front of compatible push button operators, selector switches, and mushroom-head operators. It features a single normally closed (NC) contact with spring return action, silver alloy contacts, and screw clamp terminals for secure wiring in industrial control panels. It is rated 10A at 600VAC and conforms to EN/IEC 60947-5-1, UL 508, and CSA C22.2 No.14 standards, making it suitable for a broad range of North American and international applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Telemecanique (Schneider Electric) |
| Model / Part Number | ZB2-BE102 |
| Product Type | Contact Block (Add-On) |
| Series / Range | Harmony XB2 / XB4 / XB5 |
| Mounting Size | 22mm |
| Contact Configuration | 1NC (Normally Closed) |
| Contact Action | Spring Return (Momentary) |
| Number of Poles | 1 |
| Current Rating (Ith) | 10A |
| Voltage Rating (Ui) | 600V AC |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| AC15 Rating | 3A @ 240V AC |
| Switching Category | AC15 / DC13 |
| Contact Material | Silver Alloy |
| Terminal / Connection Type | Screw Clamp |
| Mounting Type | Front Mounting |
| Operating Temperature Range | -25°C to +70°C |
| IP Rating (Mounted) | IP65 (flush/non-illuminated); IP66 (mushroom/booted) |
| NEMA Enclosure Ratings | Type 1, 2, 3, 4, 4X, 12, 13 |
| Mechanical Life | 3,000,000 operations (standard push button) |
| Standards / Certifications | EN/IEC 60947-5-1, EN/IEC 60204-32, UL 508 (File E164353), CSA C22.2 No.14 (File LR44087), CE |
| Compatible Operator Sizes | 22mm XB4, XB5 Harmony Series Operators |
| Alternate Part Number | ZB2BE102 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Telemecanique
Enclosure Type Type 1, 2, 3, 4, 4X, 12, 13
Part Number ZB2-BE102
Shelf J-44
Model ZB2-BE102
MPN ZB2-BE102
Type Push Button
