Product Description

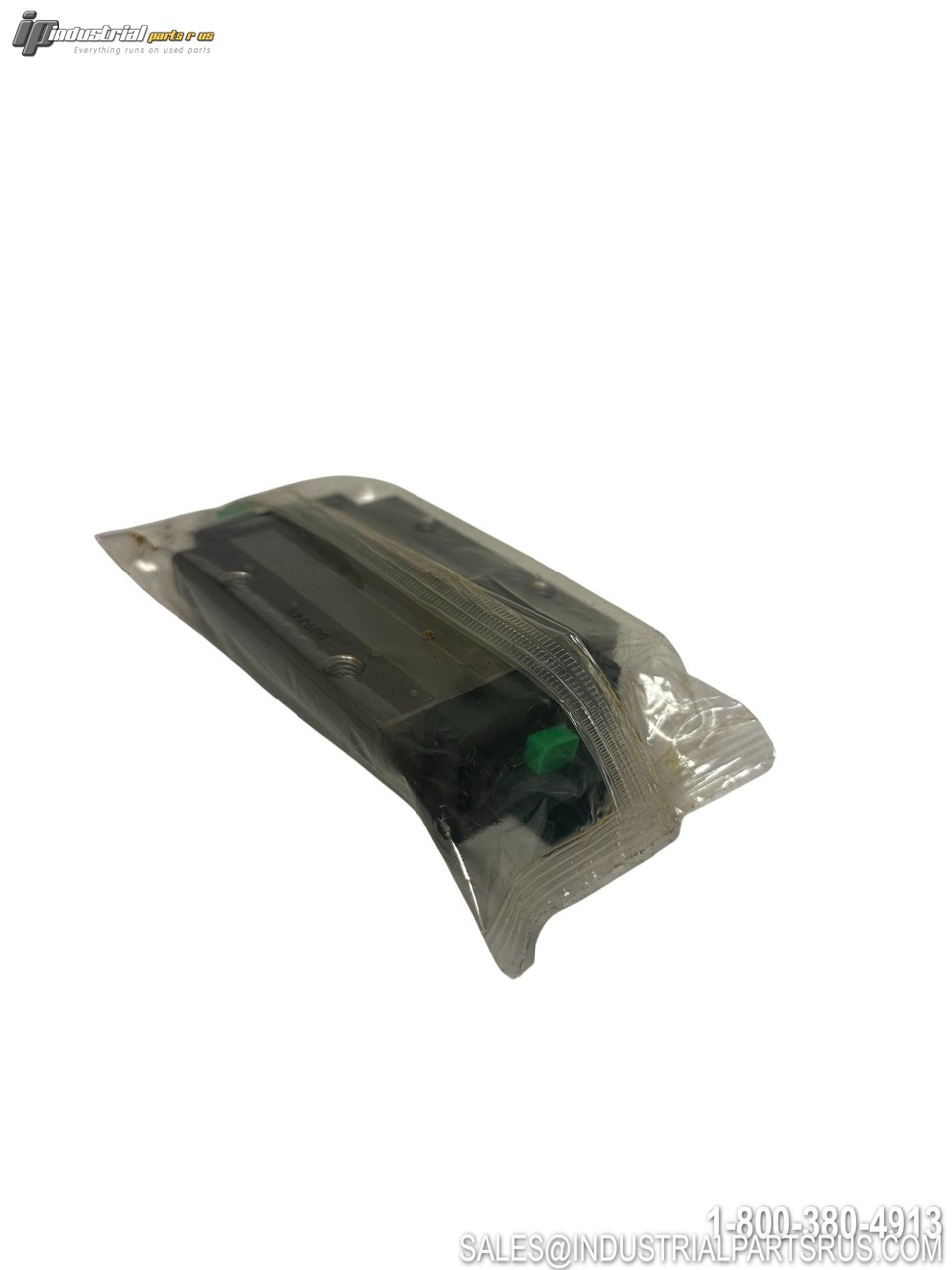

The THK SHS-25C is a caged ball linear motion guide (LM guide) designed for high-precision linear motion applications. This model features a low sectional height and high rigidity design that achieves highly accurate and stable linear motion, making it ideal for machine tool applications and automation equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | SHS-25C |
| Type | Linear Guide |
| Series | SHS |
| Rail Size | 25mm |
| Block Height (M) | 36mm |
| Block Width (W) | 70mm |
| Block Length (L) | 92mm |
| Flange Width (B) | 57mm |
| Flange Height (C) | 45mm |
| Mounting Bolt | M8 |
| Loading Method | 4-Way Equal Load |
| Ball Retainer | Caged Ball |
| Mounting Direction | Top and Bottom Surface Mount |
| Grease Nipple Type | B-M6F |
| Flange Type | Flanged Tapped Holes |
| Default Grease | AFB-LF |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number SHS-25C
Shelf K-47
Model SHS-25C
MPN SHS-25C
Type Linear Guide
