Product Description

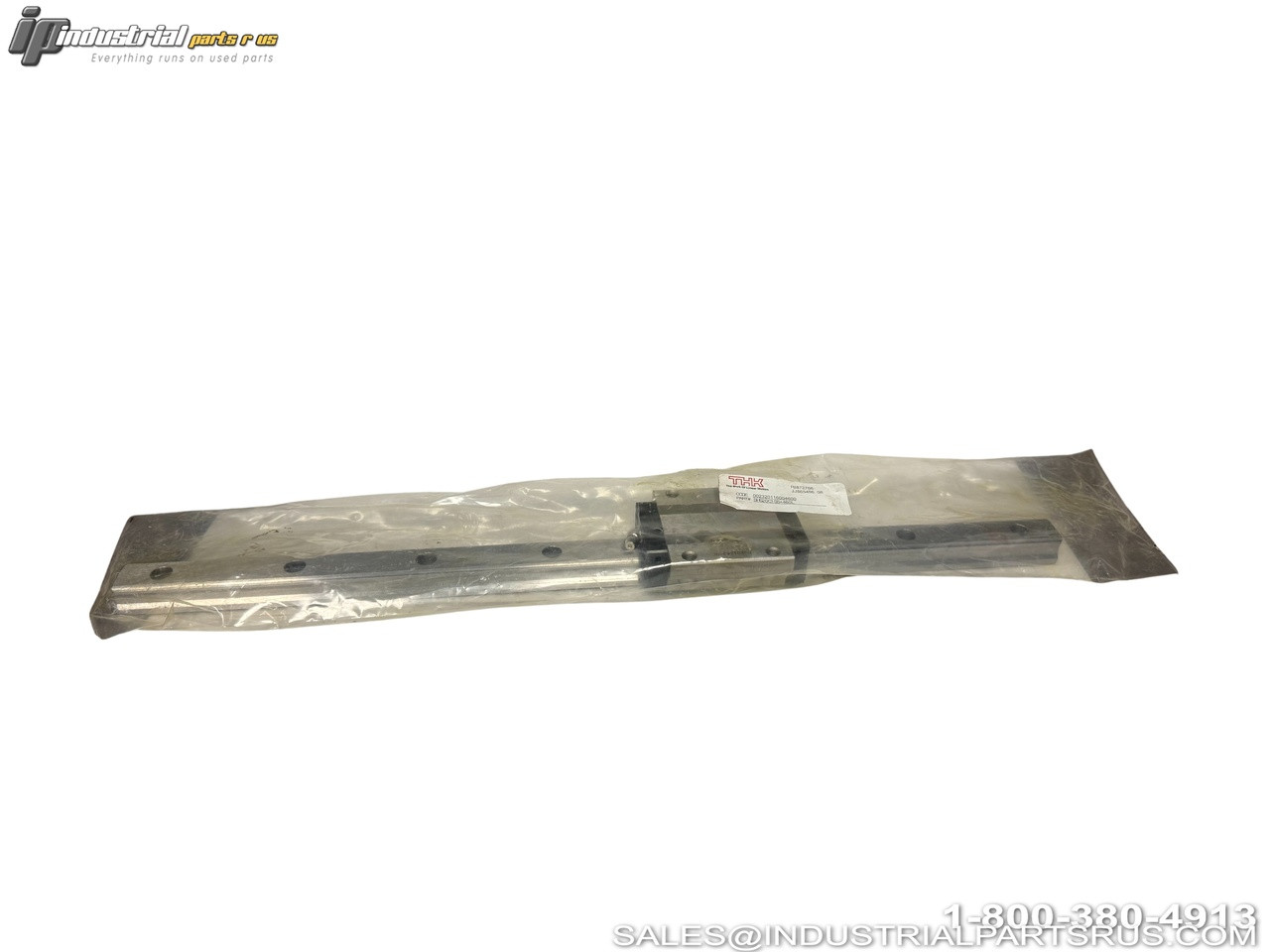

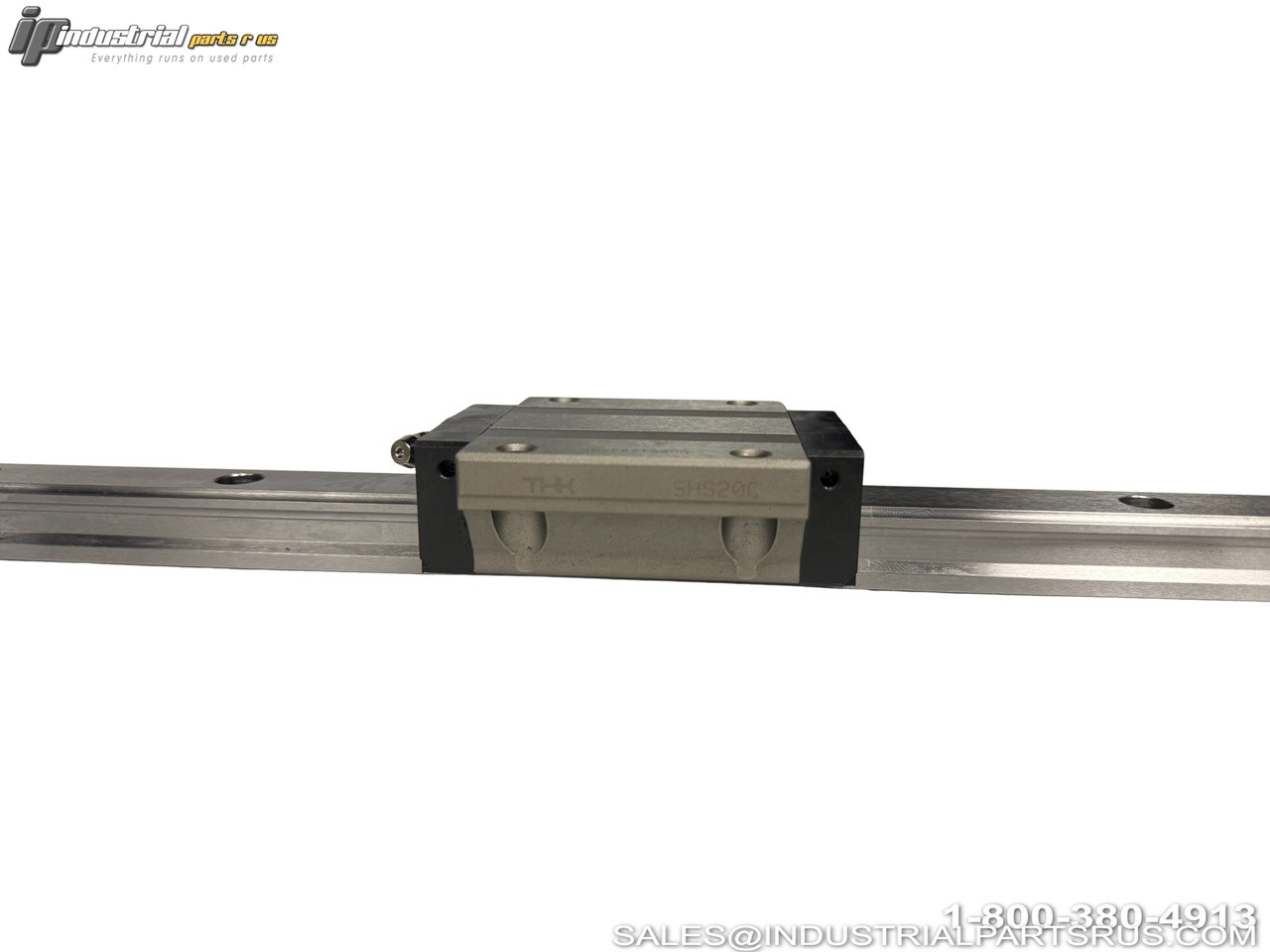

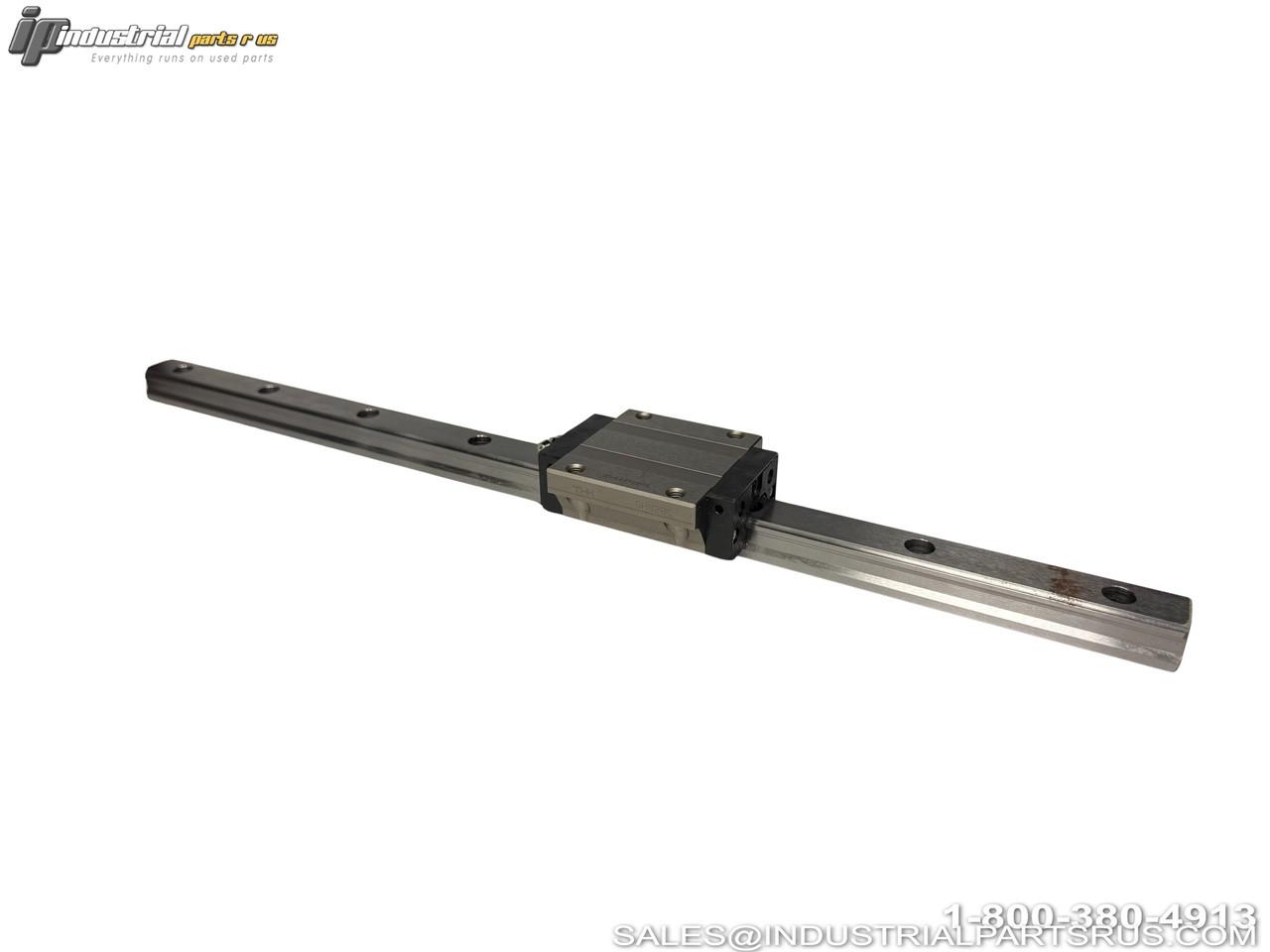

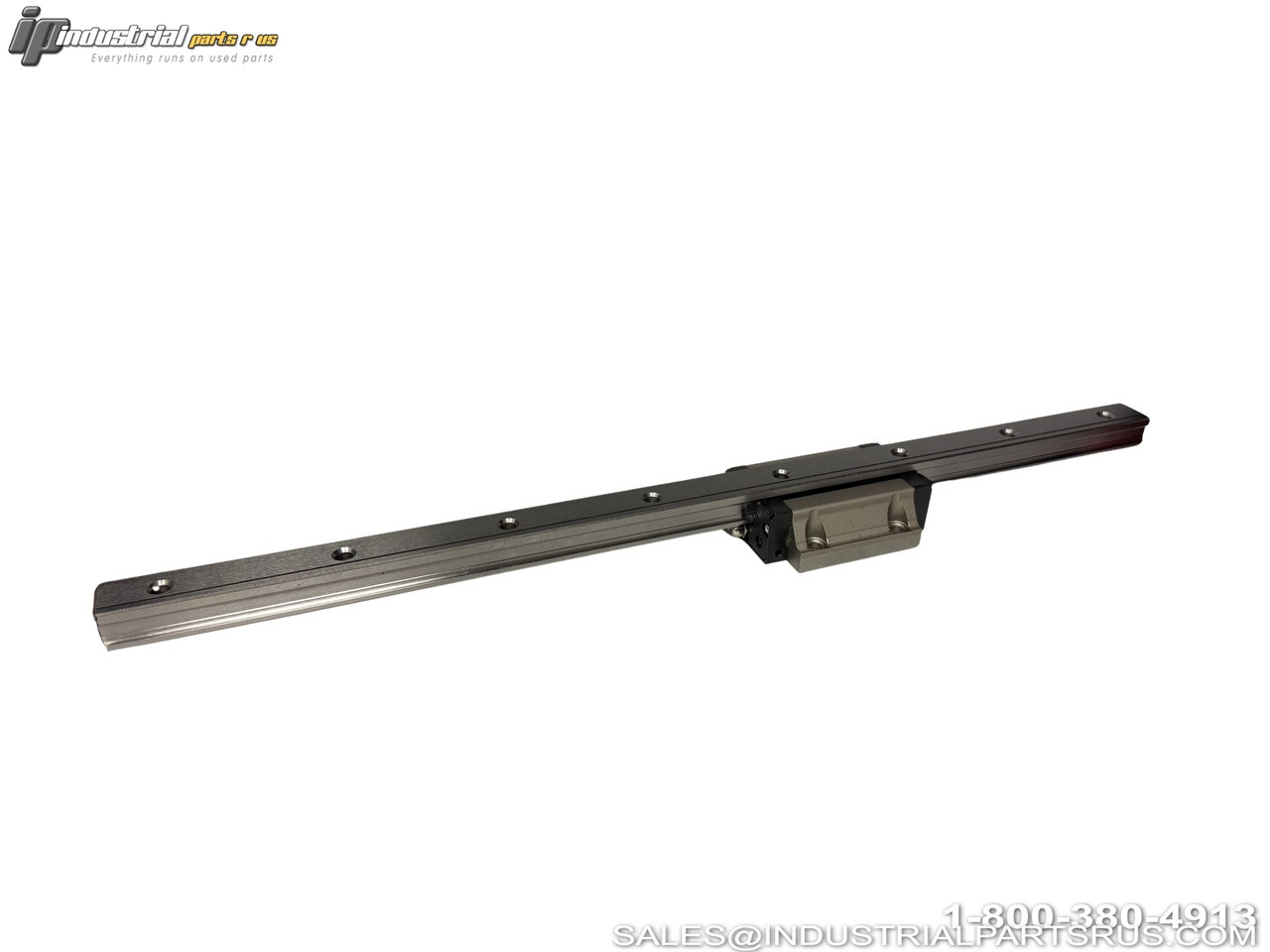

The THK SHS20C1SS+460L is a complete linear guide assembly combining the SHS20C1SS caged ball linear guide block with a 460mm length rail. This global standard size linear motion guide features a 4-way equal load structure that enables uniform load distribution in all four directions, making it suitable for use in any orientation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | THK |
| Model/Part Number | SHS20C1SS+460L |
| Series | SHS-C |
| Rail Size | 20mm |
| Rail Length | 460mm |
| Block Type | Caged Ball |
| Block Width | 63mm |
| Block Length | 79mm |
| Block Height | 30mm |
| Dynamic Load Rating | 22.3 kN |
| Static Load Rating | 38.4 kN |
| Block Weight | 0.46 kg |
| Rail Weight per Meter | 2.3 kg/m |
| Mounting Hole | M6 |
| Design | Flange Block |
| Seal Type | End/Side/Inner Seal |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer THK
Part Number SHS20C1SS+460L
Shelf L-1
Model SHS20C1SS+460L
MPN SHS20C1SS+460L
Type Linear Guide
