Product Description

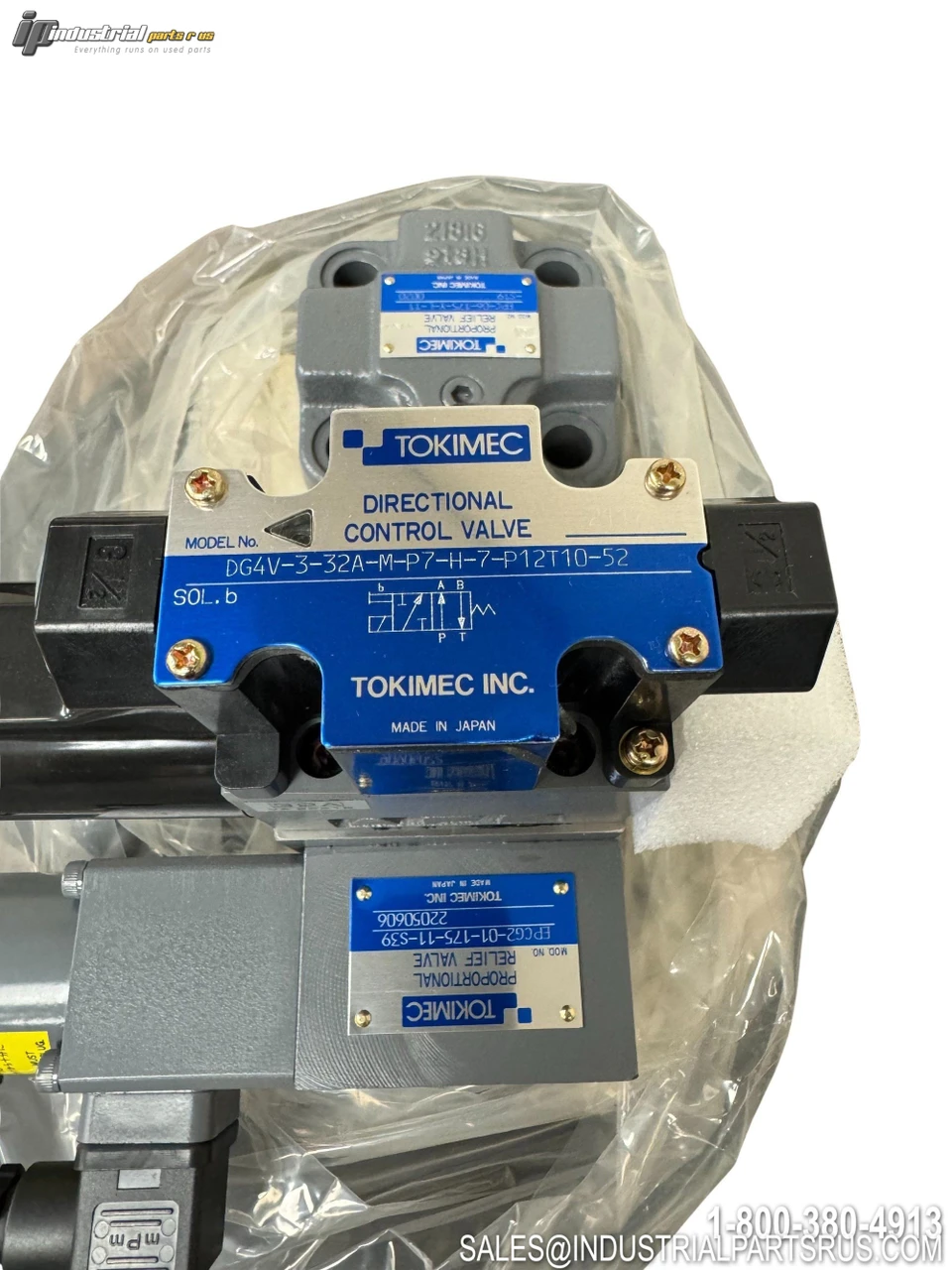

The Tokimec DG4V-3-32A-M-P7-H-7-P12T10-52 is a solenoid-operated directional control valve of the DG4V-3 series, manufactured by Tokimec (Tokyo Keiki). It is a wet armature, gasket-mounted (subplate-mounted) 4-way hydraulic valve built to ISO 4401-03 (NG6/CETOP-3/D03) mounting dimensions, compatible with mineral oil-based and water-glycol hydraulic fluids. The valve features a spring-centered double solenoid configuration with a P7-style wiring connector, 24VDC coil (H voltage code), P12 plug-in rectified coil assembly, and a T10 elevated tank port back-pressure rating, making it well-suited for demanding industrial hydraulic control circuits.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Tokimec (Tokyo Keiki) |
| Model / Part Number | DG4V-3-32A-M-P7-H-7-P12T10-52 |
| Product Type | Solenoid-Operated Directional Control Valve (Hydraulic) |
| Valve Series | DG4V-3 |
| Design Series | 52 |
| Spool Type | 32A (4-way, spring-centered, double solenoid, A-type) |
| Valve Operation | Solenoid Operated |
| Solenoid Type | Wet Armature (Wet Type) |
| Number of Solenoids | Double (Dual Solenoid) |
| Spring Arrangement | Spring Centered (3-position) |
| Coil Voltage | 24VDC (Code H) |
| Coil Type | P12 — Plug-in coil with built-in rectifier (AC/DC conversion) |
| Electrical Connector | P7 — DIN 43650 / Wiring box connector style |
| Mounting Type | Gasket / Subplate Mounting |
| Mounting Interface | ISO 4401-03 (NG6 / CETOP-3 / D03) |
| Max Working Pressure (P, A, B Ports) | 35 MPa (350 bar / 5,076 PSI) |
| Max Tank Port (T) Back Pressure | 20.6 MPa standard; T10 rated elevated back pressure option |
| Max Flow Rate | Up to 80 L/min (approx. 21 GPM) |
| Max Switching Frequency | 300 cycles/min (DC); 120 cycles/min (AC/DC conversion) |
| Hydraulic Fluid Compatibility | Mineral oil-based fluid, water-glycol based fluid, phosphate ester |
| Body Material | Cast Iron |
| Valve Weight (Double Solenoid, DC) | Approx. 2.0 kg |
| Insulation Class | H (180°C) |
| Coil Power Consumption | Approx. 28W per solenoid (at 30°C) |
| Allowable Voltage Fluctuation | ±10% |
| Manual Override | Manual override pin (push type) |
| Interchangeable With | Vickers/Eaton DG4V-3, Rexroth 4WE6, Yuken DSG-01, Parker D1VW (same ISO 4401-03 subplate) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Equipment Type Directional Control Valve
Manufacturer Tokimec
Part Number DG4V-3-32A-M-P7-H-7-P12T10-52
Shelf A-8
Model DG4V-3-32A-M-P7-H-7-P12T10-52
MPN DG4V-3-32A-M-P7-H-7-P12T10-52
Type Hydraulic Valve
