Product Description

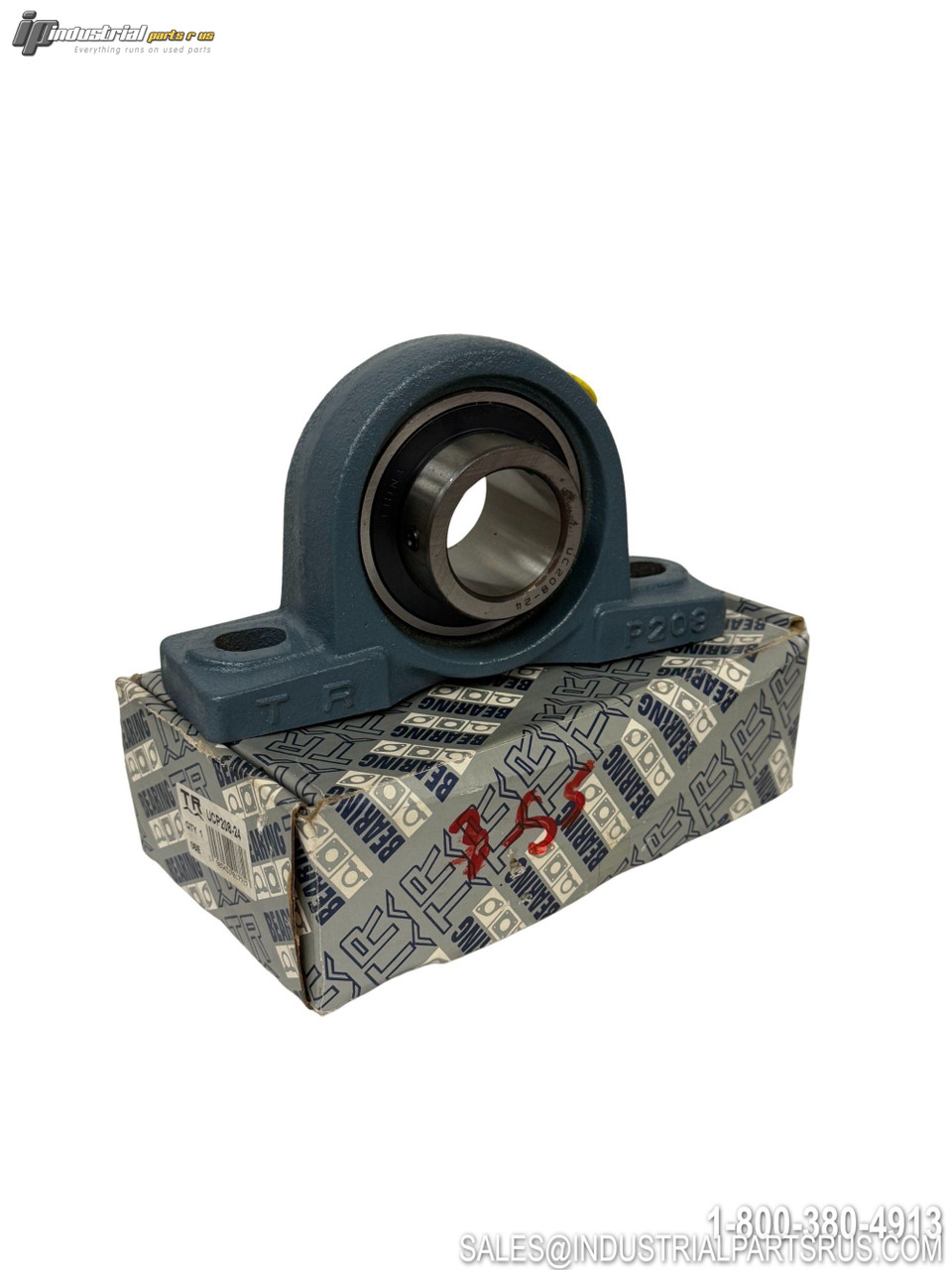

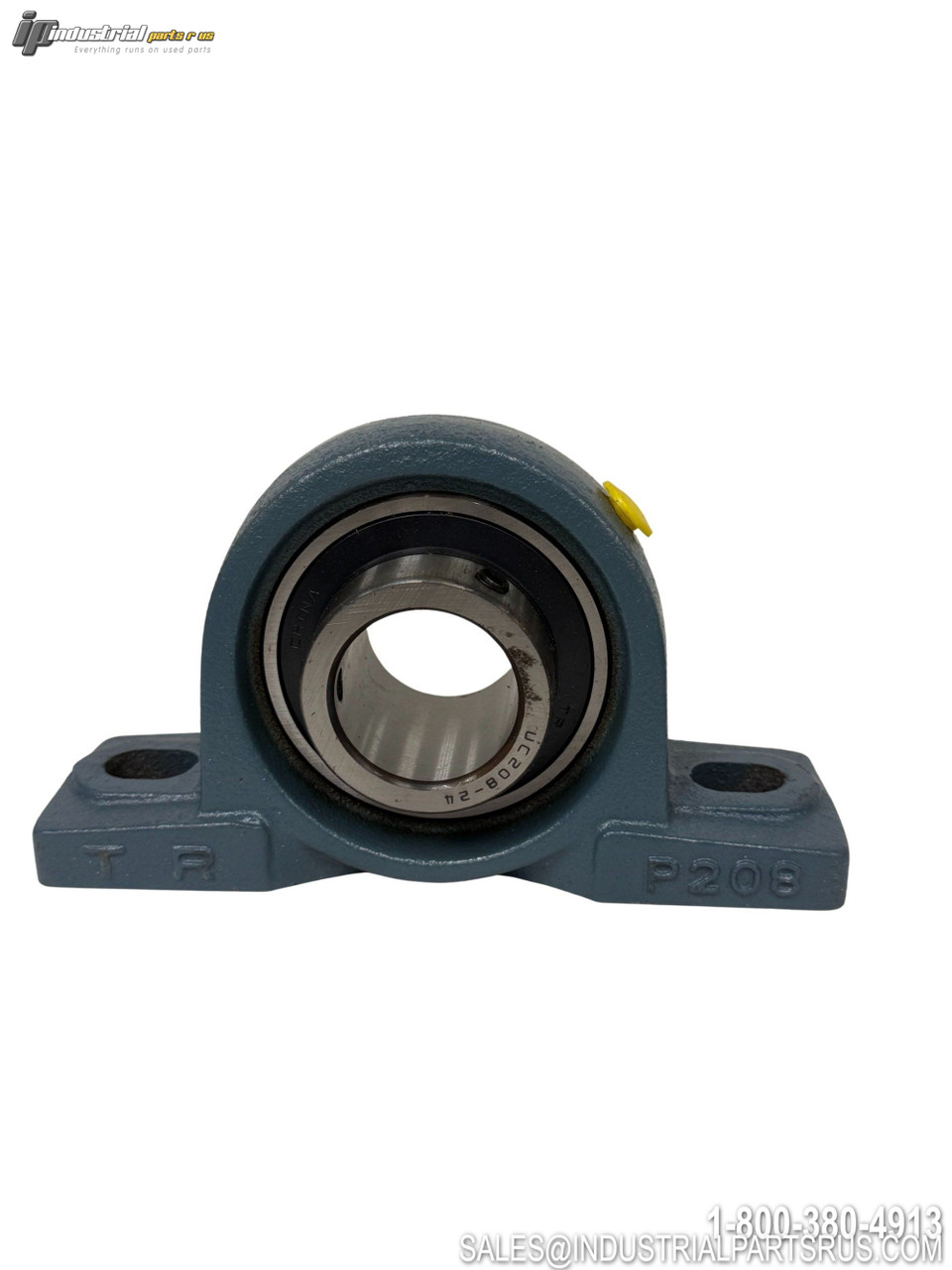

The TR UCP208-24 is a standard duty pillow block bearing featuring a cast iron housing with a 1-1/2 inch bore diameter. This two-bolt mounted bearing unit includes a UC208-24 ball bearing insert with set screw locking mechanism and grease fitting for relubrication. The self-aligning design makes it suitable for conveyor systems, agricultural equipment, and general industrial machinery applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TR |
| Model/Part Number | UCP208-24 |
| Bearing Type | Pillow Block |
| Bore Diameter | 1-1/2 inch (38.1 mm) |
| Bearing Insert | UC208-24 |
| Housing Material | Cast Iron |
| Housing Number | P208 |
| Mounting Type | 2-Bolt |
| Locking Type | Set Screw |
| Center Height | 1.937 inch (49.2 mm) |
| Overall Height | 3.858 inch (98 mm) |
| Bolt Centers | 5.354 inch (146 mm) |
| Bolt Hole Size | 0.669 inch (17 mm) |
| Bolt Size | 1/2 inch |
| Housing Length | 7.25 inch (189 mm) |
| Housing Width | 2.36 inch (60 mm) |
| Seal Type | Double Seal |
| Grease Fitting | Yes |
| Self-Aligning | Yes |
| Weight | 4.67 lbs (6 lbs shipping) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Chrome Steel
Manufacturer Tr
Part Number UCP208-24
Shelf C-5
Bore Diameter 1.5 in
Model UCP208-24
MPN UCP208-24
Type Pillow Block
