Product Description

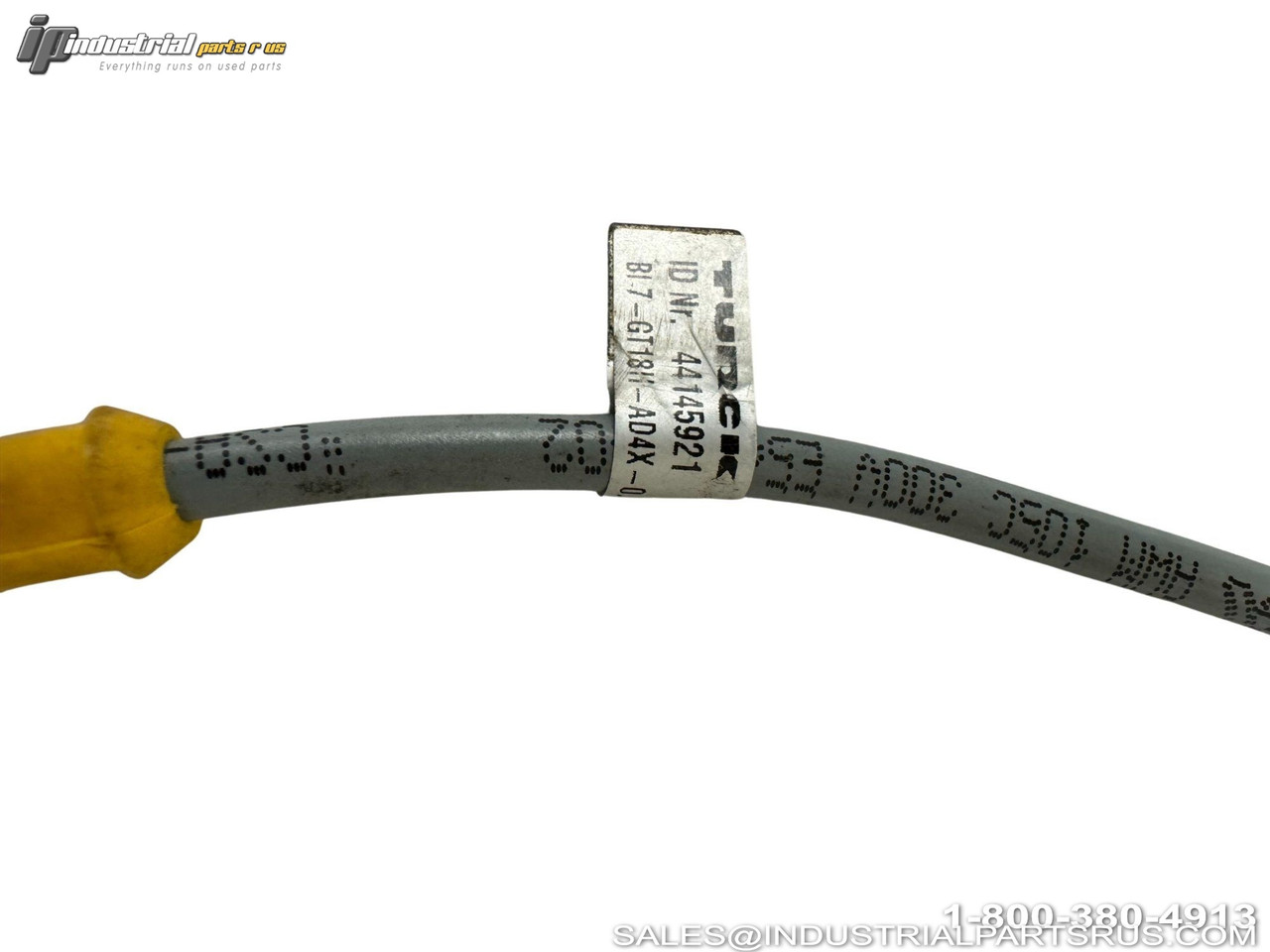

The Turck BI 7-GT18H-AD4X-0.5M-RS-4.23T/S1732 is an embeddable inductive proximity switch featuring a 7mm nominal sensing range in an 18mm fully-threaded stainless steel barrel housing. It operates as a 2-wire DC normally open (NO) device over a wide 10–65VDC supply range and is designed for valve position sensing and general industrial proximity detection applications. The 0.5-meter pigtail cable terminates in a 4-pin M12 Eurofast quick-disconnect male connector for convenient installation and replacement.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | BI 7-GT18H-AD4X-0.5M-RS-4.23T/S1732 |
| Product Type | Inductive Proximity Sensor / Switch |
| Sensing Range (Nominal) | 7 mm |
| Housing Size / Thread | M18 x 1 (18mm barrel) |
| Housing Style | Fully threaded short cylindrical barrel (GT-type) |
| Housing Material | Stainless Steel (H-type) |
| Mounting Type | Embeddable (flush mount in metal) |
| Supply Voltage | 10–65 VDC (12V / 24V / 48V nominal) |
| Output Type | DC 2-Wire (Transistor Output) |
| Output Configuration | NO (Normally Open) |
| Max Output Current | 100 mA |
| Max Switching Frequency | 1 kHz (1000 Hz) |
| Cable Length (Pigtail) | 0.5 m (50 cm / ~20 in) |
| Connection Type | 4-pin M12 Eurofast QD Male Connector (straight) |
| Sensor Series / Family | BI...-GT18H (Valve Position / Special Variant S1732) |
| Application | Valve Position Sensing / General Proximity Detection |
| Protection Functions | Short-circuit (pulsed), Overload, Reverse polarity |
| LED Indicator | Yes (1 LED) |
| Operating Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| Manufacturer | Turck (Hans Turck GmbH & Co. KG) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type 2-Wire DC (Transistor Output)
Sensor Type Inductive
Operating Distance 7 mm
Manufacturer Turck
Enclosure Type IP67
Part Number BI 7-GT18H-AD4X-0.5M-RS-4.23T/S1732
Shelf O-9
Model BI 7-GT18H-AD4X-0.5M-RS-4.23T/S1732
MPN BI 7-GT18H-AD4X-0.5M-RS-4.23T/S1732
Type Inductive Proximity Sensor
