Product Description

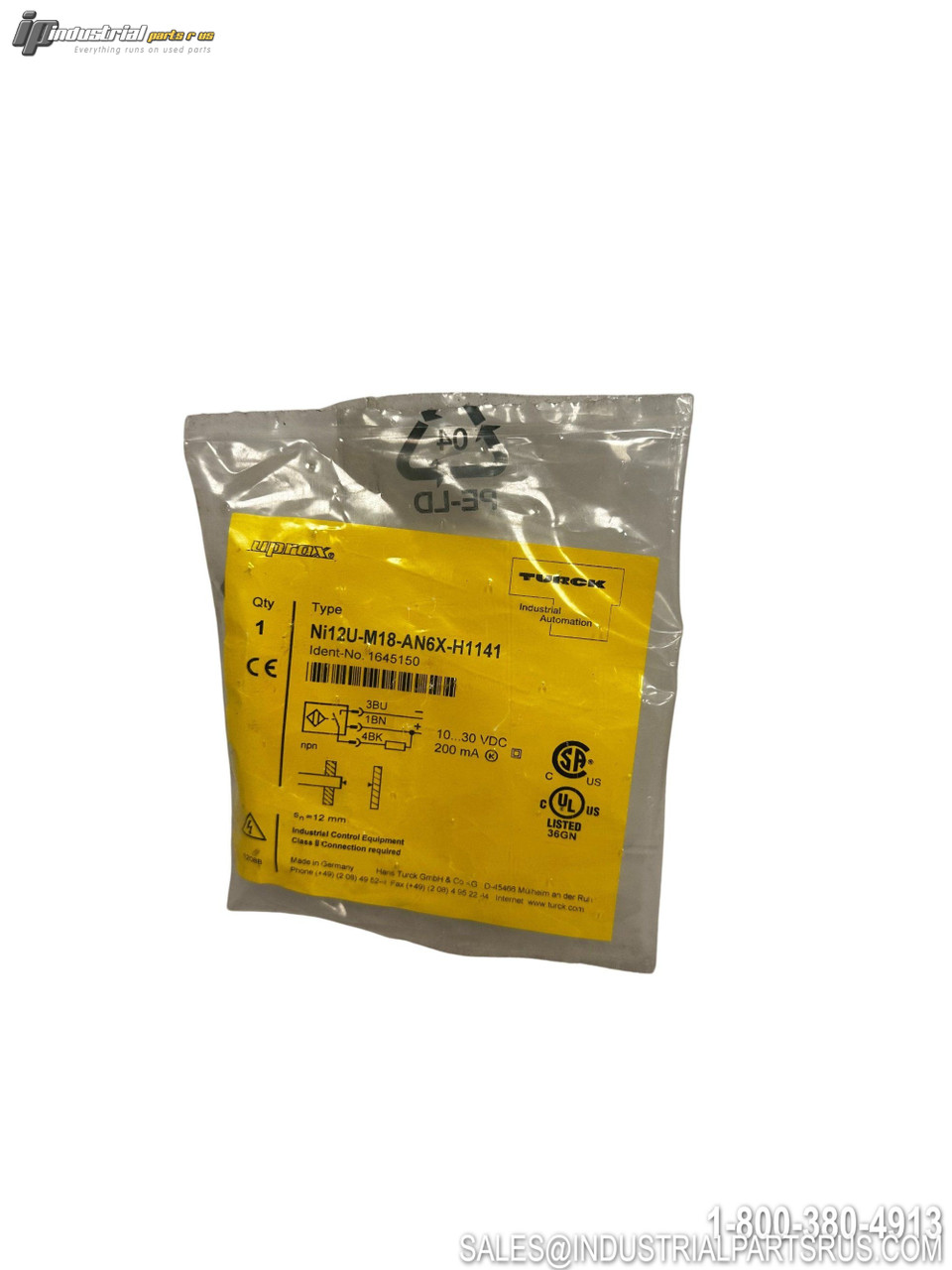

The Turck NI12U-M18-AN6X-H1141 is an inductive proximity sensor designed for non-embeddable mounting applications. This sensor features uprox Factor 1 technology for detecting all metals at the same switching distance and provides excellent resistance to magnetic fields. The chrome-plated brass construction ensures durability in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model/Part Number | Ni12U-M18-AN6X-H1141 |
| Turck ID Number | 1645150 |
| Sensing Range | 12mm |
| Housing Size | 18mm |
| Housing Style | Partial thread |
| Thread Size | M18 x 1 |
| Housing Material | Chrome-plated brass |
| Mounting Type | Non-embeddable |
| Output Type | NPN (sinking) |
| Output Function | Normally open |
| Supply Voltage | 10-30 VDC |
| Wiring Configuration | 3-wire DC |
| Connector Type | M12 Eurofast male |
| Number of Pins | 4 pin |
| Connector Orientation | Straight |
| LED Indicators | 1 LED |
| Sensing Technology | Uprox |
| Series | NI12U |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type NPN
Sensor Type Inductive
Operating Distance 12mm
Manufacturer Turck
Part Number NI12U-M18-AN6X-H1141
Shelf K-40 TUB1
Model NI12U-M18-AN6X-H1141
MPN NI12U-M18-AN6X-H1141
Type Inductive Proximity Sensor
