Product Description

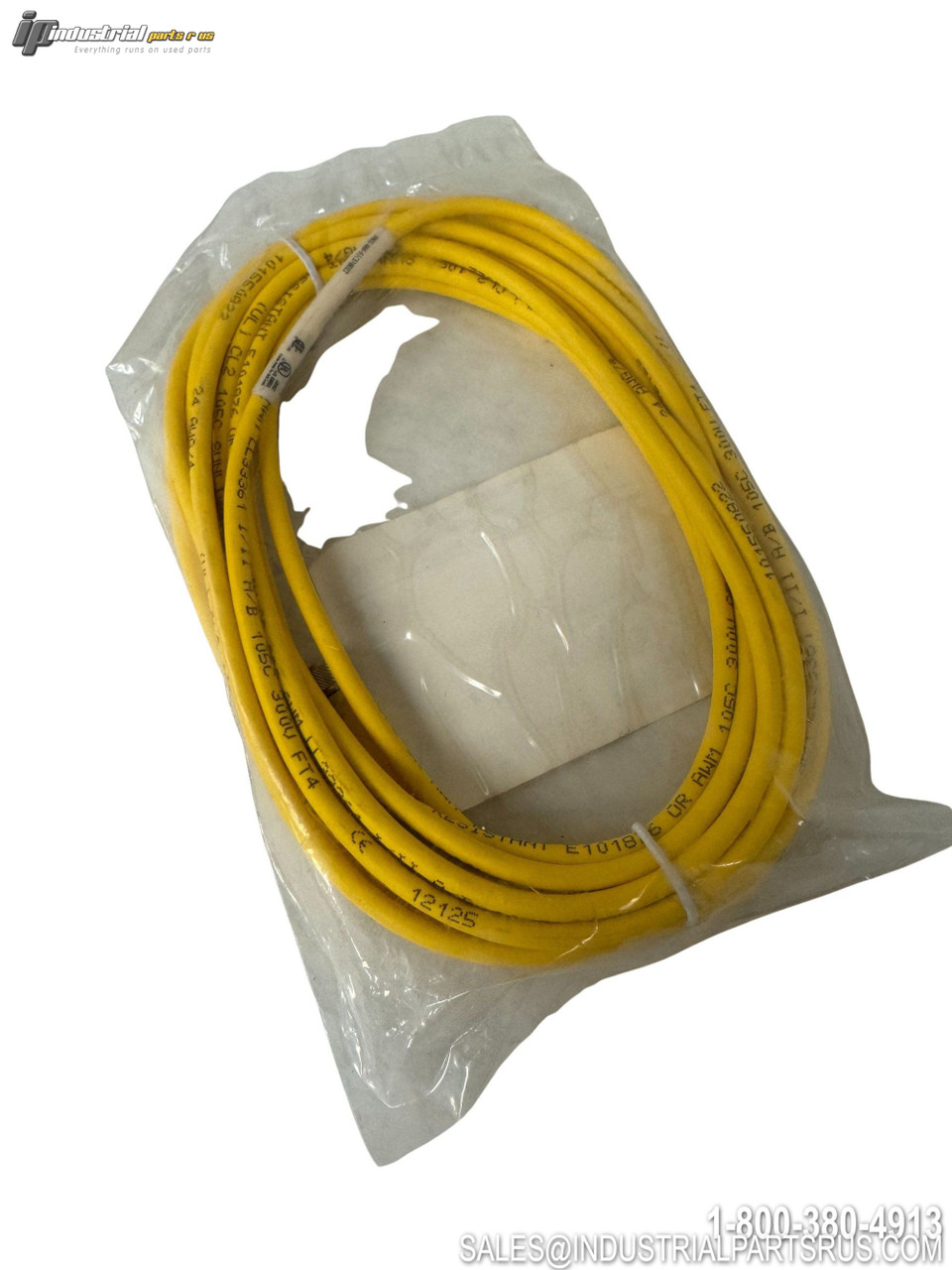

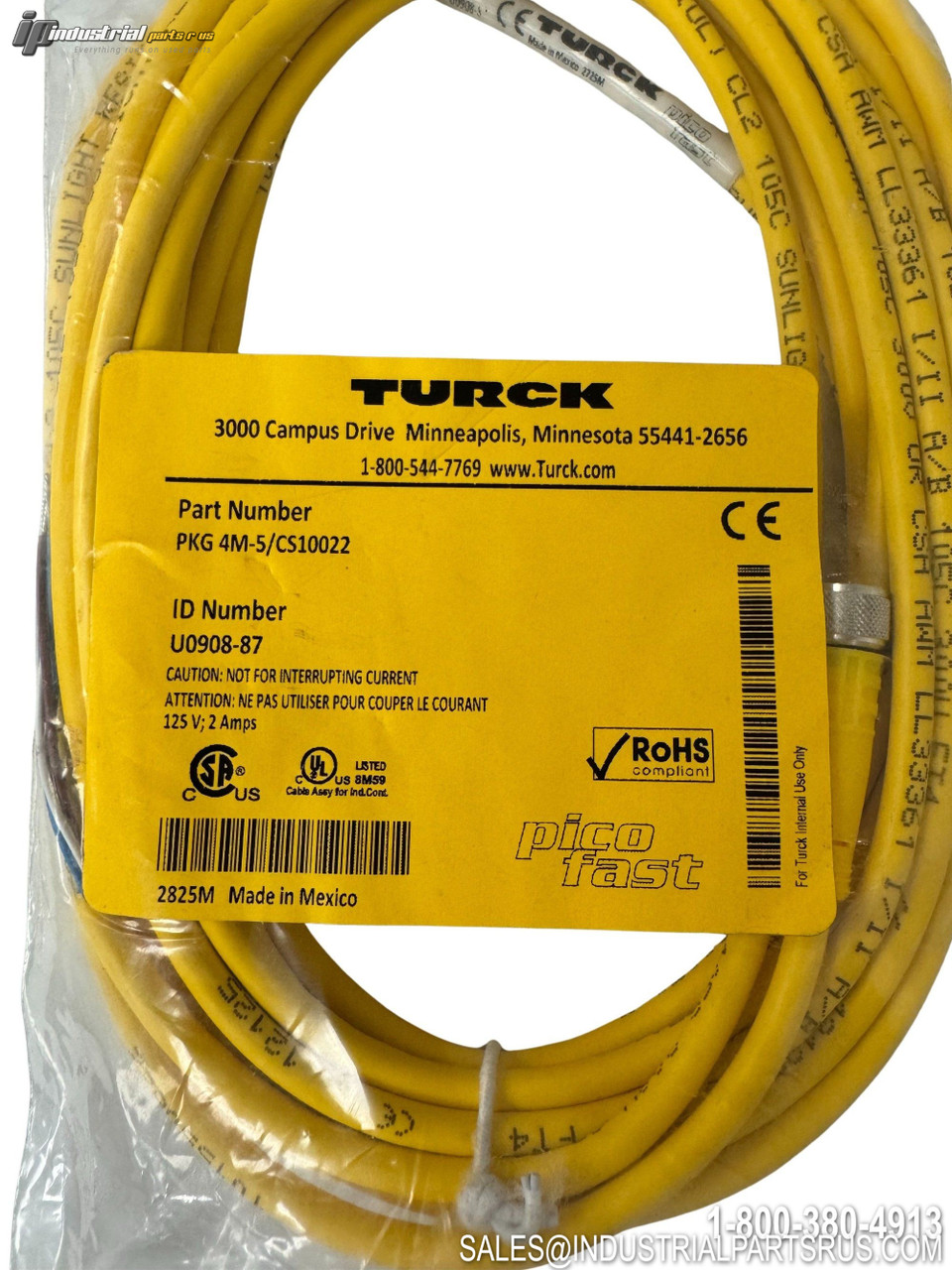

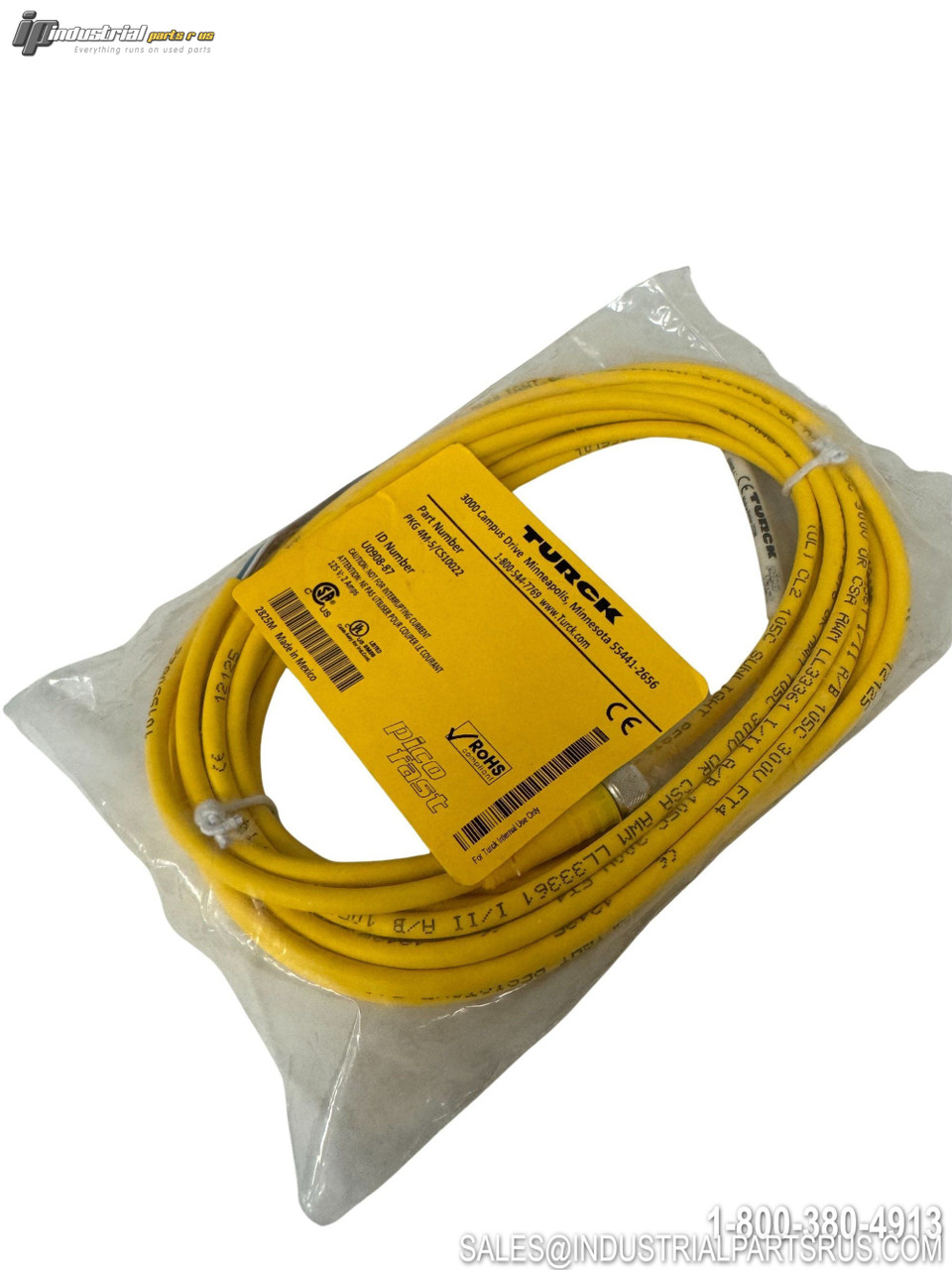

The Turck PKG 4M-5/CS10022 is a single-ended actuator and sensor cordset (picofast series) featuring a 4-pin M8 female straight connector with a nickel-plated brass threaded coupling nut, terminating in bare-end flying leads. This CL2-rated cable is designed for connecting sensors and actuators in industrial automation environments, offering IP67 ingress protection and Flexlife-rated flexible PVC cable construction. It carries 4×26 AWG tinned copper conductors in a yellow PVC jacket suitable for general-purpose factory wiring applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | PKG 4M-5/CS10022 |
| Series | PKG (Picofast) |
| Product Type | Actuator and Sensor Cordset (Single-Ended) |
| Design / Rating | CL2 Rated |
| Cable Length | 5 m (16.4 ft) |
| Connector Type A | M8 Picofast Female, Straight, 4-Pin, Threaded (M8×1) |
| Connector Type B | Bare End Flying Leads (Open/Cut End) |
| Number of Conductors | 4-Wire (4 × 26 AWG) |
| Conductor Size | 4 × 26 AWG (≈ 0.14 mm²) |
| Number of Strands × O.D. | 19 × 38 AWG |
| Conductor Material | TC (Tinned Copper) |
| Conductor Colors | BN (Brown), WH (White), BU (Blue), BK (Black) |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Cable O.D. (Sheath Diameter) | Ø 4.4 mm |
| Cable ID | RF50697-M |
| Rated Voltage | 125 VAC/DC |
| Rated Current | 2 A |
| Coupling Nut Material | Brass (CuZn), Nickel-Plated |
| Connector Seal | O-Ring, FKM/FPM |
| Tightening Torque | 0.4 – 0.8 Nm |
| IP Rating (When Coupled) | IP67 |
| NEMA Rating | NEMA 1, 3, 4, 6P |
| Cold Bend Rating | -40°C |
| Max. Operating Temperature | +105°C |
| Bending Radius (Static) | ≥ 5 × Ø |
| Bending Radius (Dynamic) | ≥ 10 × Ø |
| Mechanical Life | > 100 Mating Cycles |
| Pollution Degree | 3 |
| Flame Ratings | UL1061, CSA FT1 |
| Cable Technology | Flexlife® and C-Track Approved |
| Manufacturer | Turck Inc. |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Mexico
Full Load Amps 2 A
Manufacturer Turck
Enclosure Type NEMA 1, 3, 4, 6P
Part Number PKG 4M-5/CS10022
Shelf O-9
Model PKG 4M-5/CS10022
MPN PKG 4M-5/CS10022
Type Sensor Actuator Cable
