Product Description

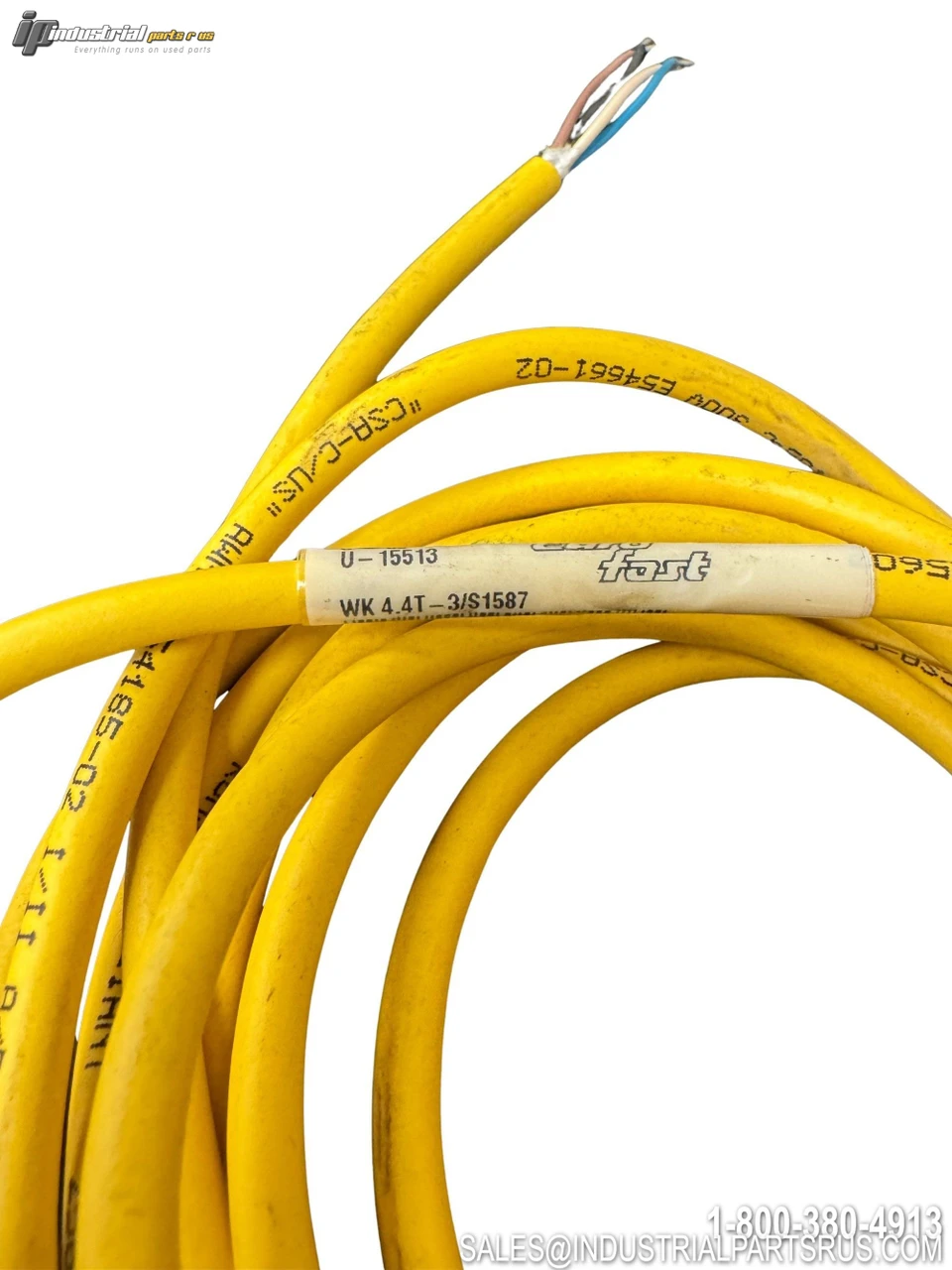

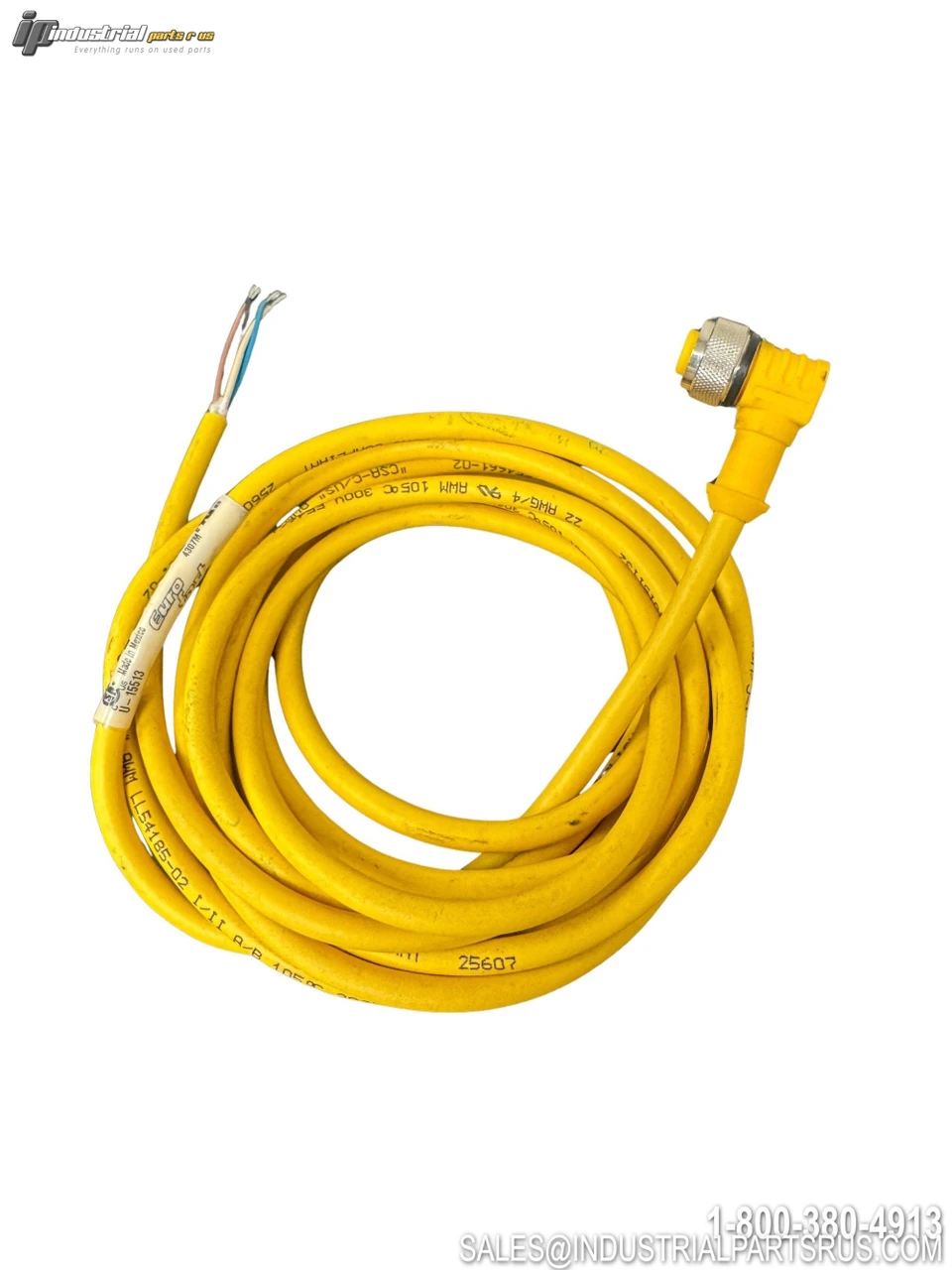

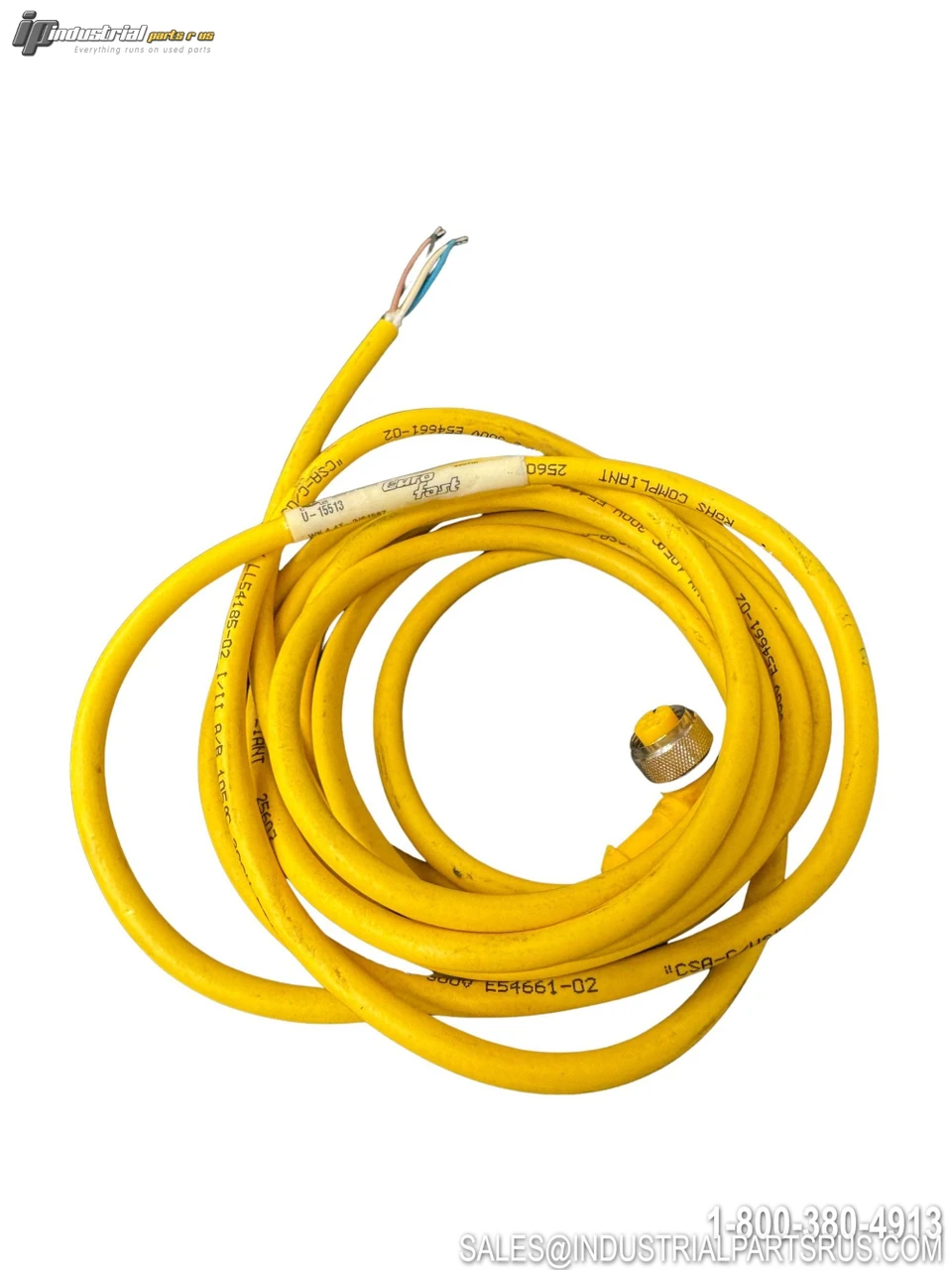

The Turck U-15513 WK 4.4T-3/S1587 is a single-ended actuator and sensor connection cordset featuring a right-angle 4-pin M12 Eurofast female connector (A-code, T-barb fitting) with bare-end flying leads on the opposite end. The "/S1587" suffix designates Turck's WeldLife cable construction — a yellow TPE-jacketed cable engineered for weld-flash immunity and use in harsh welding environments. This 3-meter cordset is rated IP68/IP69K and NEMA 1/3/4/6P for reliable operation in demanding industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Turck |
| Model / Part Number | U-15513 WK 4.4T-3/S1587 |
| Product Type | Sensor Actuator Cable / QD Cordset (Single-Ended) |
| Series | WK 4.4T / Eurofast |
| Cable Type / Cable Designation | S1587 — WeldLife (Weld-Flash Immunity) |
| Cable Length | 3 m (9.8 ft) |
| Connector Type | M12 × 1 Eurofast, Right-Angle Female (A-code) |
| Number of Pins / Contacts | 4 |
| Opposite End | Bare-End Flying Leads (Open/Cut End) |
| Connector Fitting | T-Barb Fitting |
| Coupling Nut Material | Brass (CuZn), Nickel-Plated |
| Contact Material | Brass (CuZn), Gold-Plated |
| Jacket Material | TPE (Thermoplastic Elastomer), Yellow |
| Wire Gauge | 4 × 22 AWG |
| Wire Colors (Pin Assignment) | Brown (BN) / White (WH) / Blue (BU) / Black (BK) |
| Rated Voltage | 250 VAC |
| Rated Current | 4 A |
| IP Rating (When Coupled) | IP68 / IP69K |
| NEMA Rating | NEMA 1, 3, 4, 6P |
| Design Standard | IEC 61076-2-101 |
| Operating Temperature | -40°C to +105°C |
| Connector Tightening Torque | 0.8 – 1 Nm |
| Mechanical Life | > 100 Mating Cycles |
| Pollution Degree | 3 |
| LEDs | None |
| Approvals / Standards | UL, CSA |
| Manufacturer | Hans Turck GmbH & Co. KG |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 4 A
Manufacturer Turck
Enclosure Type NEMA 1, 3, 4, 6P
Part Number U-15513 WK 4.4T-3/S1587
Shelf K-16
Model U-15513 WK 4.4T-3/S1587
MPN U-15513 WK 4.4T-3/S1587
Type Sensor Actuator Cable
