Product Description

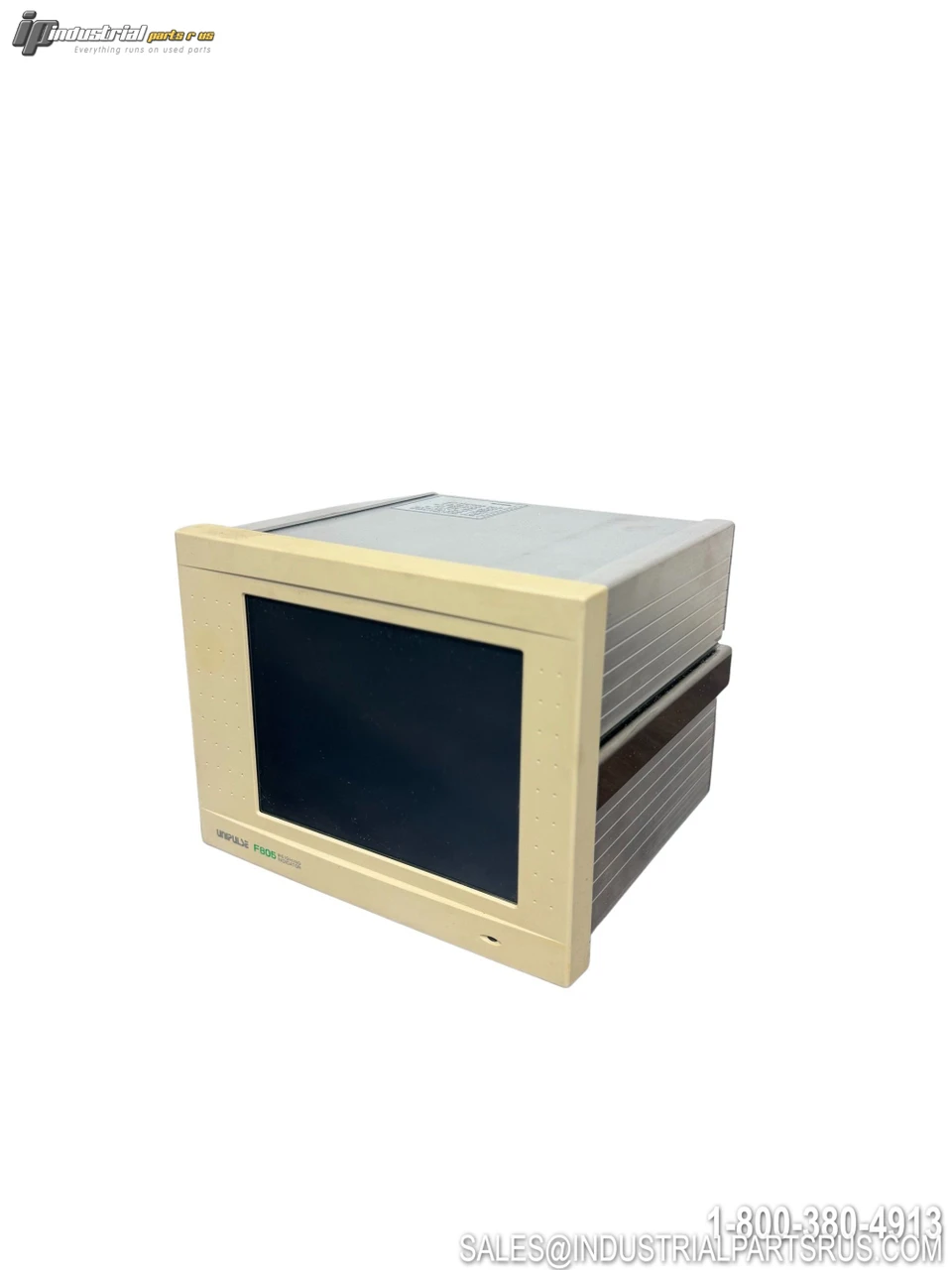

The Unipulse F805 is a professional-grade all-in-one weighing indicator and load cell controller designed specifically for industrial weighing systems. It features a color LCD touch panel for intuitive operation and high-speed A/D conversion with digital processing, supporting direct interfaces to major PLCs including Mitsubishi CC-Link and OMRON DeviceNet. The F805 is a top-of-the-line loadcell controller platform, manufactured in Japan, capable of managing complex weighing sequences, batch control, and multi-channel communication. The front panel carries an IP54 protection rating, and the unit is both RoHS and EMC compliant (EN61326-1).
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Unipulse |
| Model / Part Number | F805 |
| Series | F805 |
| Product Type | Weighing Indicator / Controller (Panel Meter) |
| Mounting Style | Panel Mount |
| Input Voltage | 100–240V AC |
| Frequency | 50/60 Hz |
| Number of Phases | 1 (Single Phase) |
| Current Type | AC |
| Current Rating / Maximum Amperage | 0.2 A |
| Power Consumption | 20W |
| Display Type | Color LCD Touch Panel |
| A/D Conversion Speed | 1000 times/sec |
| Load Cell Excitation Voltage | 10V DC / 5V DC selectable, 120 mA |
| Load Cell Connection | 6-wire (remote sense); up to 4 load cells (350Ω) in parallel at 10V |
| Load Cell Connector | 7-pin Hirose JR type |
| Standard Interfaces | SIF (2-wire serial), SI2 (2-wire bi-directional serial), RS-232C |
| Optional Interfaces | RS-485, BCD parallel output (BCO), BCD parallel input (BCI), D/A converter (DAC), CC-Link, DeviceNet |
| PLC Compatibility | Mitsubishi CC-Link, OMRON DeviceNet |
| Max Interface Options | Up to 4 options (serial communication = 1 option) |
| Front Panel Protection Rating | IP54 |
| Material | ABS Plastic / Metal Chassis |
| Packaging | Unboxed |
| RoHS Compliant | Yes |
| EMC Compliance | EN61326-1 |
| Application | Industrial weighing systems, batch control, bagging, formula weighing, check scales |
| Manufacturer | Unipulse Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style Panel Mount
Current Rating 0.2 A
Material ABS Plastic, Metal Chassis
Manufacturer UniPulse
Part Number F805
Series F805
Shelf D-10
Model F805
MPN F805
Type Panel Meter
