Product Description

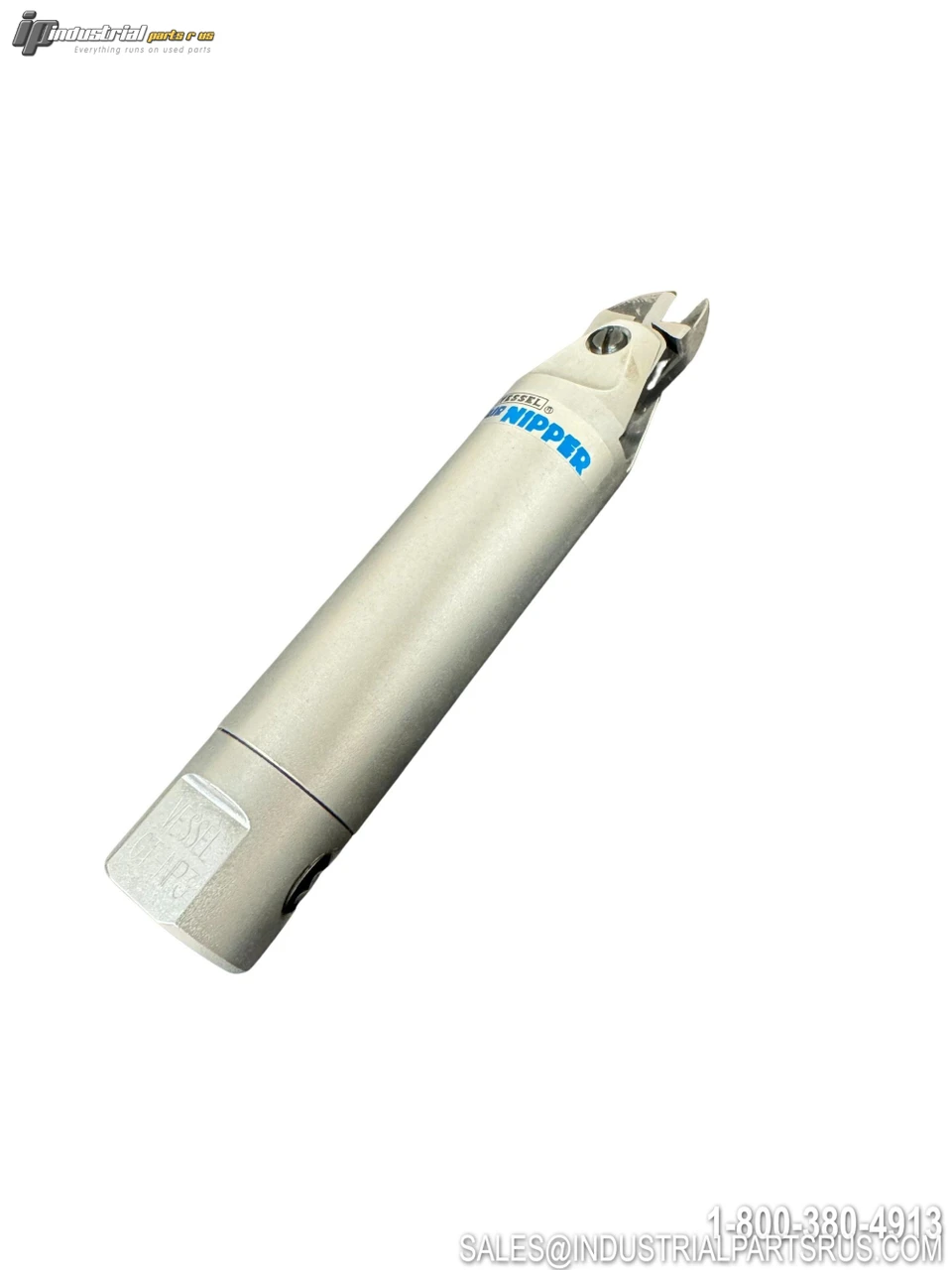

The Vessel GT-NR3 is a compact round type pneumatic air nipper body (without lever), Size 3, designed for stationary mounting in automated cutting and crimping applications. Its ø23mm aluminum cylindrical body is single-acting with a return spring, making it ideal for end-of-arm tooling (EOAT) on robotic arms, chuck plates, and cutting fixture stations. The unit accepts N3-series blades (sold separately) and features two air inlet ports with a 180°-rotatable end-cap for flexible installation in any orientation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Vessel |
| Model / Part Number | GT-NR3 |
| EDP Number | 360015 |
| Product Series | GT-NR Series |
| Description | Round Air Nipper Body (without Lever), Size 3 |
| Overall Length (OAL) | 110 mm |
| Body Diameter | ø23 mm |
| Weight | 70 g |
| Air Consumption | 45 cm³/stroke |
| Operating Air Pressure | 0.4 – 0.5 MPa (58 – 73 PSI) |
| Applied Force | 294 N (66 lb) |
| Air Inlet Port (Hose Coupling) | Rc 1/8 |
| Number of Air Inlet Ports | 2 |
| End-Cap Rotation | 180° |
| Actuation Type | Single-acting with return spring |
| Body Material | Aluminum |
| Blade Material (compatible) | Special alloy steel (blades sold separately) |
| Cut Capacity – Soft Plastic (ø) | 2.0 mm |
| Cut Capacity – Hard Plastic (ø) | — (not rated) |
| Cut Capacity – Copper Wire (ø) | 1.0 mm |
| Cut Capacity – Steel (ø, non-heat treated) | 0.5 mm |
| Cut Capacity – Piano Wire (ø, HV320 or below) | 0.2 mm |
| Compatible Blade Series | N3-type (e.g., N3BJ, N3AE, N3AJ, N3AP) |
| Mounting | Mounting holes on bottom of housing; optional clamps/brackets available |
| Typical Applications | EOAT robotic arm, chuck plate, cutting fixture stations, gate cutting, wire cutting, crimping |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
