Product Description

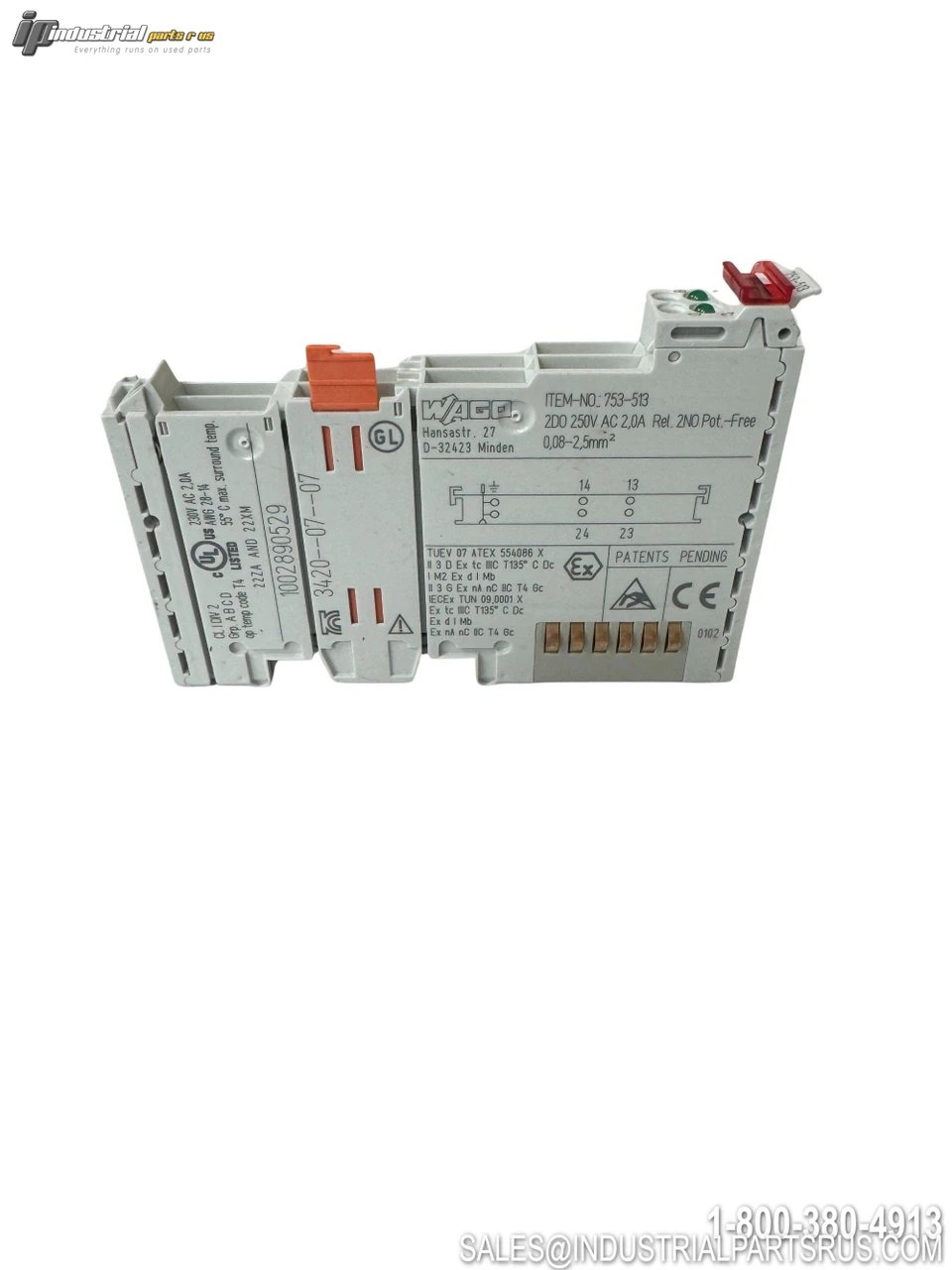

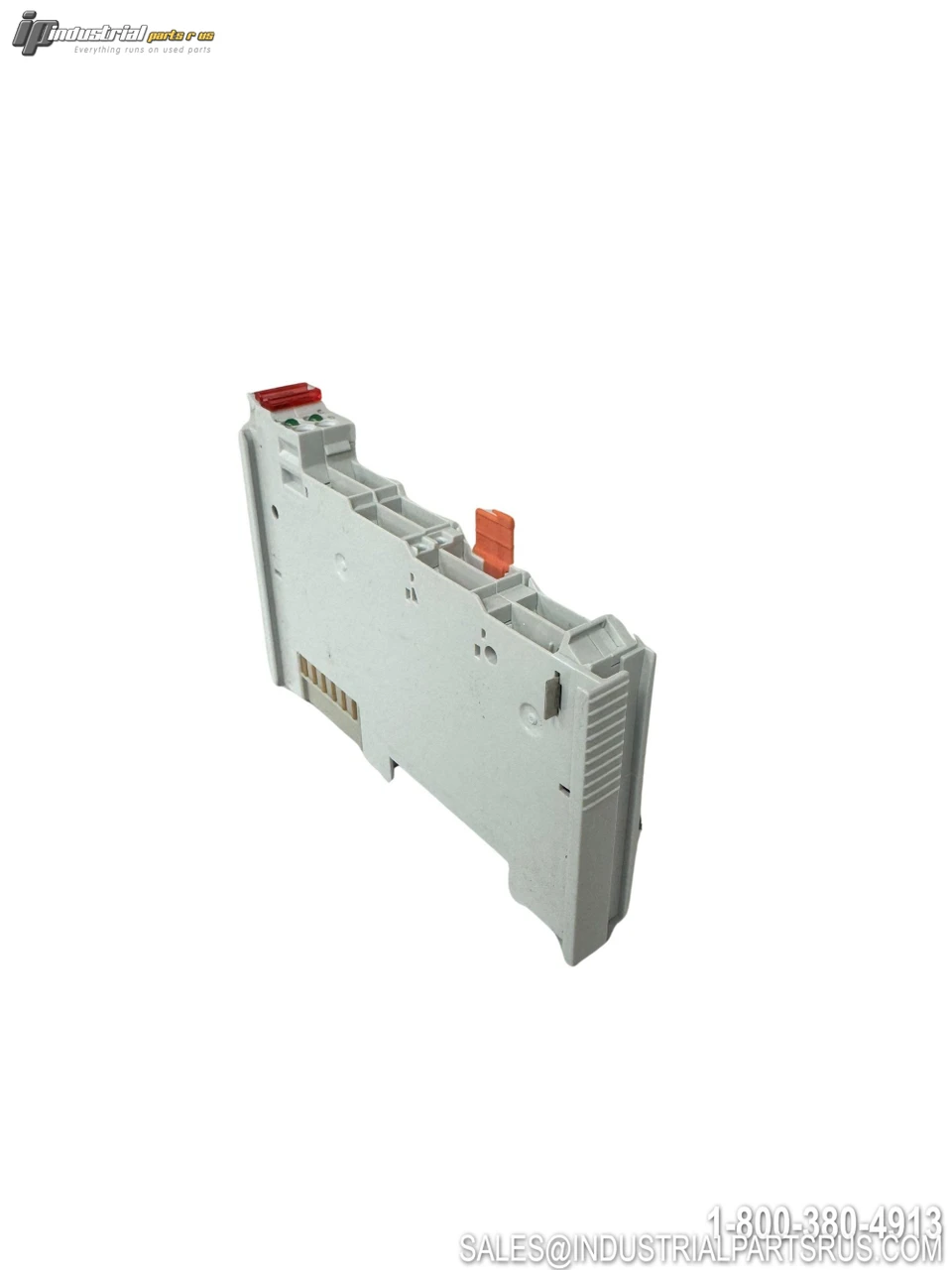

The Wago 753-513 is a 2-channel digital relay output module belonging to WAGO's 753 Series pluggable I/O system for industrial automation and control cabinet applications. It features two potential-free normally-open (NO) make contacts rated for 250 V AC / 30 V DC at 2.0 A, making it suitable for switching high-voltage loads in decentralized control architectures. The module uses push-in spring cage-clamp connections, mounts on standard DIN-35 rail in a compact 12 mm wide footprint, and carries approvals from UL, ATEX, IECEx, and multiple marine certification bodies.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Wago |
| Model / Part Number | 753-513 |
| Product Series | 753 Series |
| Product Type | 2-Channel Relay Output Module (Pluggable AC Digital) |
| Number of Digital Outputs | 2 |
| Output Type | Relay — NO (Normally Open) Contacts, Potential-Free |
| Max Switching Voltage (AC) | 250 V AC |
| Max Switching Voltage (DC) | 30 V DC |
| Max Switching Current | 2.0 A |
| System Supply Voltage | 5 V DC (supplied by system) |
| Current Consumption (Internal) | 100 mA (at 5 V DC) |
| Switching Frequency | 0.5 Hz |
| Connection Type | Push-in Spring Cage-Clamp (CAGE CLAMP) |
| Wiring Configuration | 1-wire per channel |
| Mounting Type | DIN-35 Rail |
| Enclosure / Protection Rating | IP20 |
| Width | 12 mm (0.472 in) |
| Height | 100 mm (3.937 in) |
| Depth | 69.8 mm (2.748 in) |
| Housing Material | Polycarbonate (PC) / Polyamide (PA) 6.6 |
| Color | Light Gray |
| Operating Temperature | 0°C to +55°C |
| Status Indicators | LED (green) — Relay 1 & Relay 2 status |
| Electrical Isolation | Yes — Field and System levels electrically isolated |
| Certifications / Approvals | UL 508 (E175199), UL 121201 (Hazardous Locations), ATEX, IECEx, ABS, BV, DNV, LR, KR, PRS, RINA, CCC, EAC, INMETRO, BSH, UKEx |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Output Type Relay, Normally Open (NO), Potential-Free
Country/Region of Manufacture Germany
Full Load Amps 100 mA
Manufacturer Wago
Enclosure Type IP20
Part Number 753-513
Controller Platform WAGO 753 Series
Shelf K-4
Model 753-513
MPN 753-513
Type PLC I/O Module
