Product Description

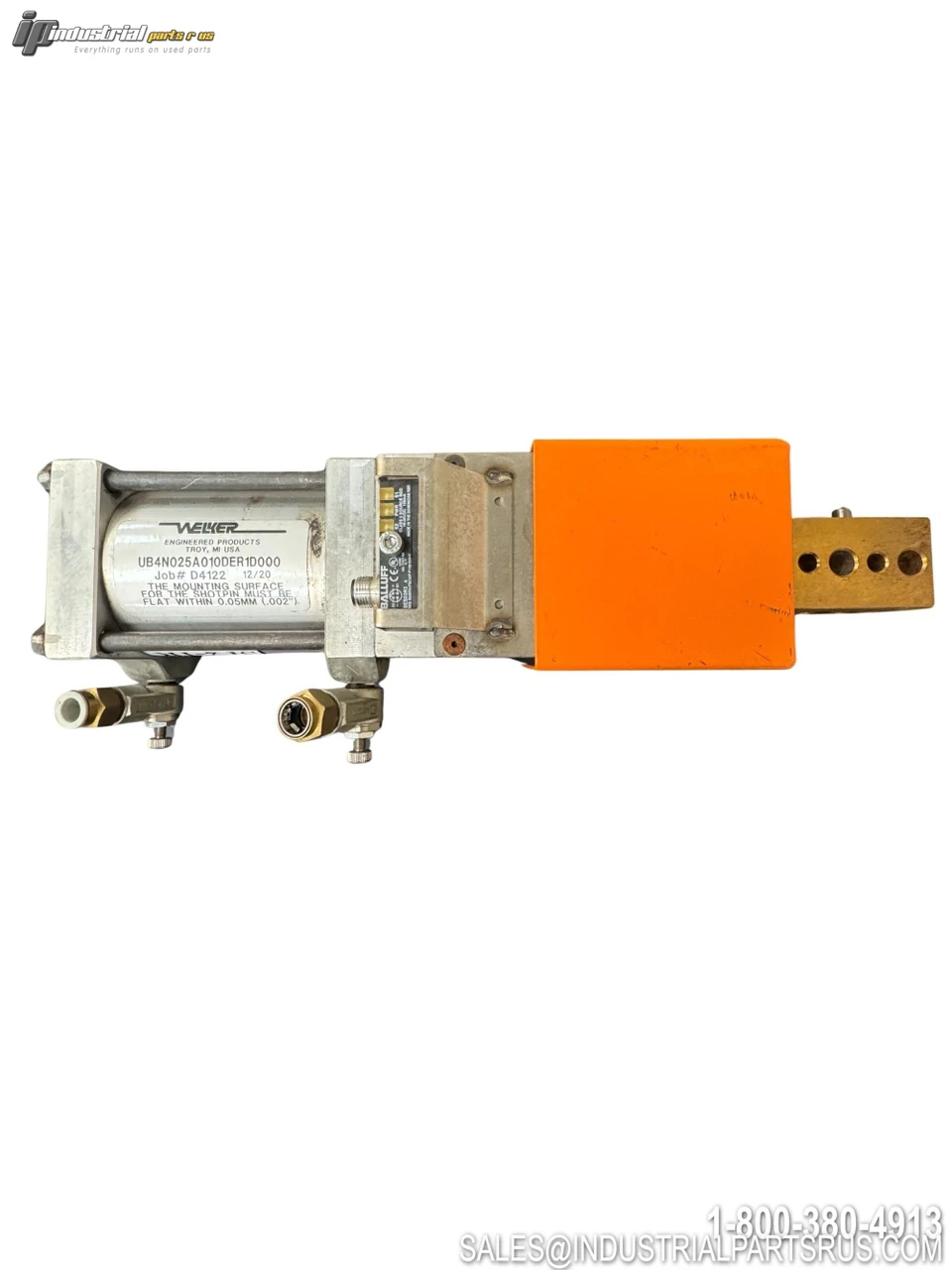

The Welker UB4N025A010DER1D000 is a UB4 Series Gold Line Unibody Shot Pin pneumatic cylinder featuring a 40mm square anti-rotate ram with a 25mm stroke and RAP (Rapid Action Pull) coupler. It integrates a double-acting single-rod pneumatic cylinder with NPT ports, a 4-hole large ram style, an ER-type world switch (retract position), a steel shroud for weld spatter protection, and P4 port position. This unit is designed for use as a retractable locating pin, part stop, probe slide, wedge lock, or straight acting clamp in precision automation and welding fixture applications, and is fully NAAMS compatible with no lubrication required.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Welker Engineered Products |
| Model / Part Number | UB4N025A010DER1D000 |
| Series | UB4 Gold Line |
| Product Type | Unibody Shot Pin Pneumatic Cylinder |
| Body Material | Aluminum Body, Steel RAM |
| Stroke Length | 25mm |
| Coupler Type | RAP – Shortens nominal cylinder stroke by 2mm |
| Actuator Type | Pneumatic – Single Rod – NPT Ports |
| Options | None (standard) |
| RAM Style | 4-Hole Large (8.0mm Thru / 11.0mm Thru) |
| Switch Option | ER – World Switch (Retract Position) |
| Shroud | 1 – Steel Shroud (Safety Orange) |
| Port Position | P4 |
| RAM Size (Nominal) | 40mm Square |
| Pneumatic Bore | 70mm |
| Port Size | 1/4" NPT |
| Recommended Operating Pressure | 60–80 PSI (4.1–5.5 bar), flow controls not required |
| Minimum Operating Pressure | 80 PSI (5.5 bar) |
| Push Force (Sq. In.) | 5.97 sq. in. |
| Pull Force (Sq. In.) | 3.49 sq. in. |
| Repeatability | ±0.05mm (±.002") part-to-part |
| Maximum Deflection at End of RAM | ±.005" (±0.13mm) |
| Stroke Accuracy | ±.015" (±0.38mm) |
| RAM Mounting Pattern | NAAMS L-Block pattern, 15mm spacing |
| Maximum Wear at 3M Cycles | .002" (0.05mm) |
| Lubrication Required | None |
| NAAMS Compatible | Yes |
| Wiper Material | Moly-impregnated urethane (custom molded) |
| Applications | Retractable locating pin, part stop, probe slide, wedge lock, straight acting clamp |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Moly-impregnated urethane
Mount NAAMS L-Block, 15mm spacing
Max. PSI 80 PSI minimum operating
Manufacturer Welker
Part Number UB4N025A010DER1D000
Series UB4 Gold Line
Shelf B-17
Stroke ±0.38mm (±.015 inch)
Bore Diameter 70 mm
Model UB4N025A010DER1D000
Port Size 1/4 inch NPT
MPN UB4N025A010DER1D000
Type Pneumatic Cylinder
