Product Description

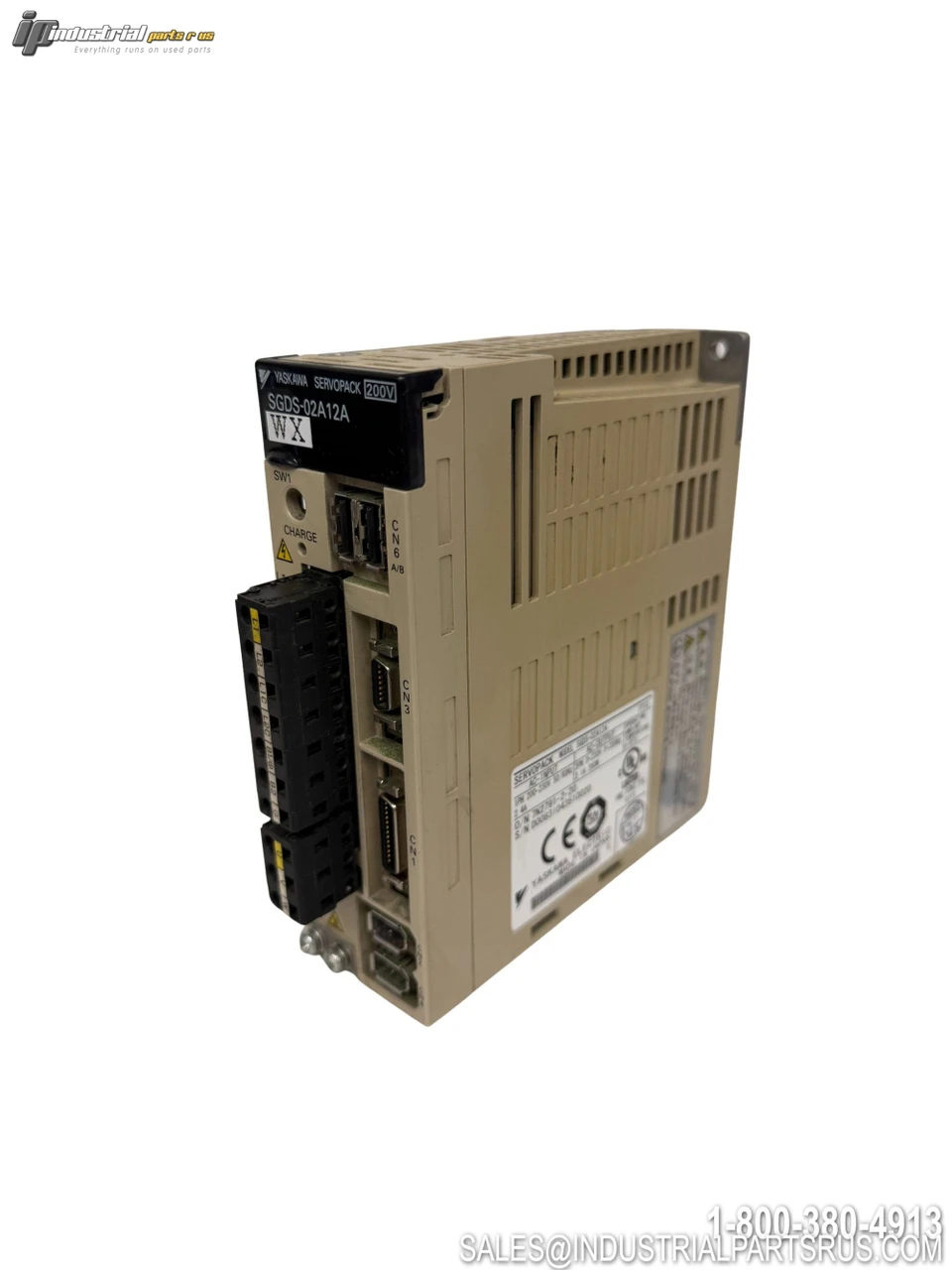

The Yaskawa SGDS-02A12A is a Sigma III Series SERVOPACK servo amplifier designed for precision motion control applications. It accepts single-phase 200–230VAC input and delivers a 3-phase 0–230VAC, 0–300Hz output rated at 200W, making it suitable for driving 200V-class Yaskawa servomotors including the SGMAH, SGMPH, SGMSH, SGMGH, and SGMCS series. The drive communicates via MECHATROLINK-II protocol and supports fully-closed loop control through its CN4 connector, enabling position, speed, and torque control modes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Yaskawa |
| Model / Part Number | SGDS-02A12A |
| Product Family / Series | Sigma III (SGDS) SERVOPACK |
| Product Type | Servo Amplifier |
| Rated Output Power | 200W (0.2 kW) |
| Input Voltage | 200–230VAC |
| Input Phase | Single-Phase (1PH) |
| Input Frequency | 50/60 Hz |
| Input Current | 2.4A |
| Output Voltage | 3-Phase, 0–230VAC |
| Output Frequency | 0–300 Hz |
| Output Current | 2.1A |
| Output Phase | 3-Phase |
| Communication Interface | MECHATROLINK-II |
| Closed-Loop Interface | Serial Fully-Closed (CN4 connector) |
| Control Modes | Position, Speed, Torque (via MECHATROLINK-II) |
| Enclosure / IP Rating | IP1X |
| Operating Ambient Temperature | 0–55°C |
| Weight | 660 g (1.41 lbs) |
| Status Display | 7-Segment LED Panel Operator |
| Analog Monitor Connector | CN5 – Motor speed, torque reference monitoring |
| Compatible Servomotors | SGMAH, SGMPH, SGMSH, SGMGH, SGMCS (200V class) |
| Manufacturer | Yaskawa Electric Corporation |
| Manufacturer Status | Discontinued by Manufacturer |
