Product Description

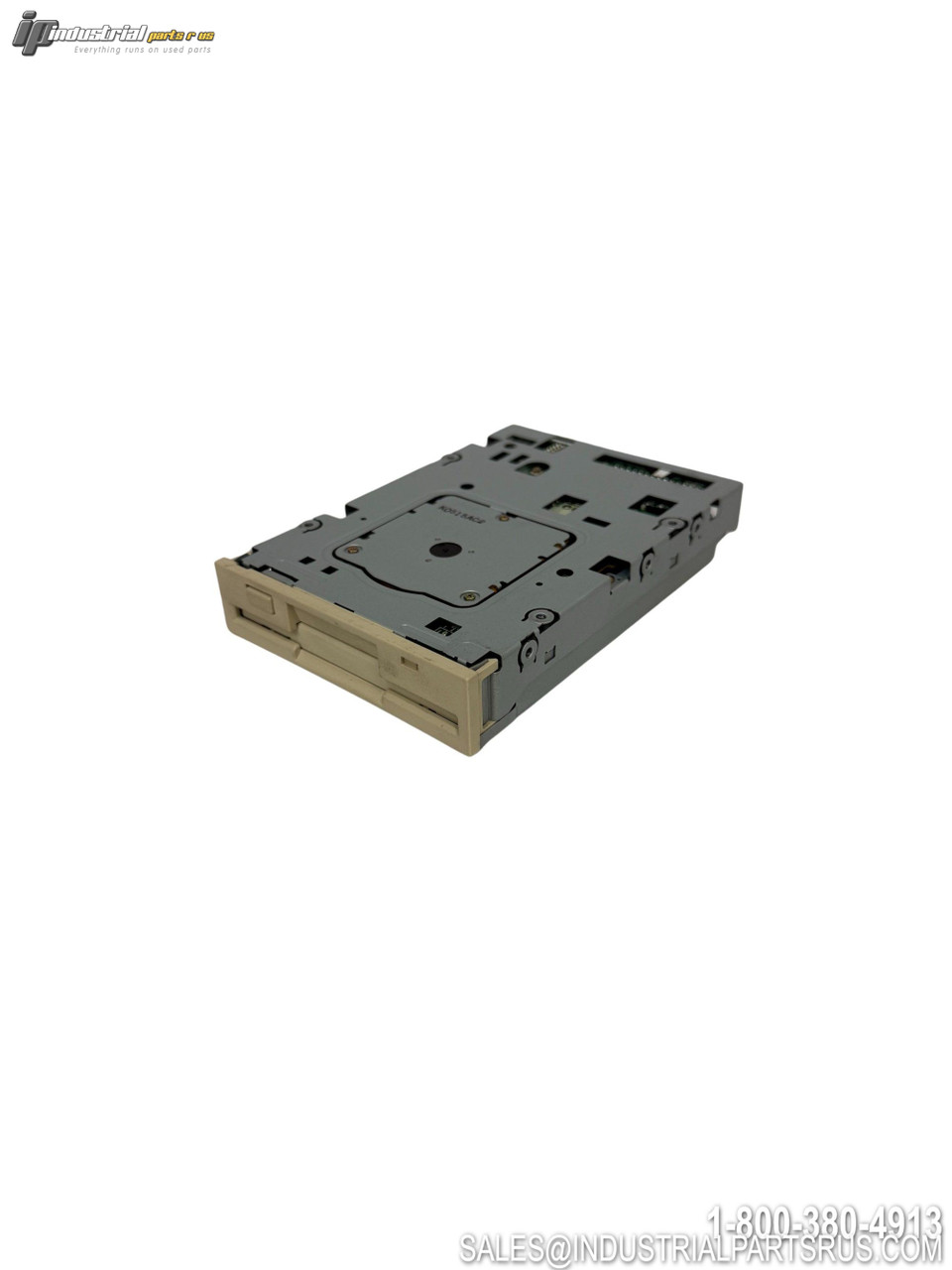

The YE Data YD-702D-6639D is a 3.5-inch (90mm) internal high-density floppy disk drive with a 25.4mm (1-inch) form factor height. It features a brushless direct-drive spindle motor for rotational accuracy and a lead screw stepping motor head actuator for precise track positioning and enhanced shock/vibration resistance. The drive supports three capacity modes — 2.0MB (2HD), 1.6MB, and 1.0MB (2DD) — making it broadly compatible with worldwide floppy disk standards and numerous industrial, embedded, and legacy computing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | YE Data |
| Model / Part Number | YD-702D-6639D |
| Product Type | Internal Floppy Disk Drive (FDD) |
| Disk Size | 3.5-inch (90mm) |
| Form Factor | 3.5" 1/3H Internal |
| Height | 25.4 mm (1 inch) |
| Storage Capacity (Max) | 1.44 MB (2.0 MB unformatted) |
| Capacity Modes Supported | 2.0 MB (2HD), 1.6 MB, 1.0 MB (2DD) |
| Interface | 34-pin IDC Floppy Disk Controller (FDD) |
| Power Supply | +5V DC (4-pin connector) |
| Data Transfer Rate (External) | 62.5 KB/s |
| Data Transfer Rate (Internal) | 500 KB/s |
| Average Random Access Time | 94 ms |
| Head Actuator Type | Lead Screw Stepping Motor |
| Spindle Motor Type | Brushless Direct Drive |
| Capacity Mode Switching | Automatic (media type) or via shorting plug on PWB |
| Default Shipping Mode (Shorting Plug) | Standard IBM PC setting |
| Standby Mode | Yes (spindle motor stops; read/write & spindle control power cut) |
| Media Detect Signal | HIGH = 2DD media; LOW = 2HD media or no media |
| Approximate Dimensions (L x W x H) | 5.7" x 4" x 1" (145 mm x 101.6 mm x 25.4 mm) |
| Mass (Weight) | 246 g (typical) |
| Status | Discontinued by Manufacturer |
| Datasheet Reference | FDAA-522041 |
