Product Description

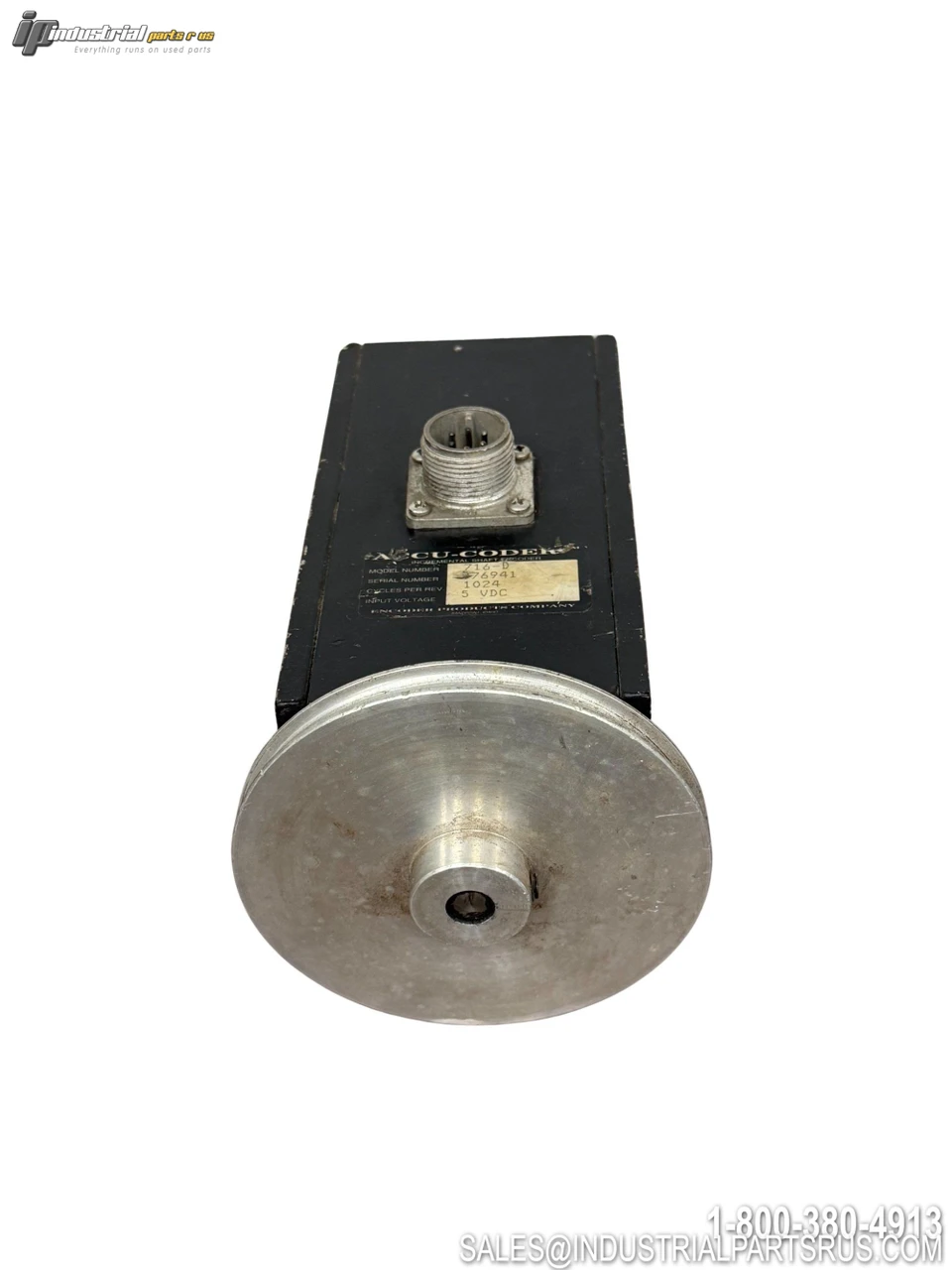

The Accu-Coder Model 716-D is an incremental shaft encoder manufactured by Encoder Products Company (EPC). This unit features 1024 cycles per revolution (CPR) and operates on 5 VDC, providing quadrature output with NPN open collector signals for direction-sensing applications. The Model 716 series is the original industry-standard cube encoder, designed for compatibility with programmable controllers, electronic counters, motion controllers, and motor drives, utilizing advanced Opto-ASIC circuitry for enhanced reliability. Output is via a shielded flying lead cable.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Accu-Coder |
| Model / Part Number | 716-D |
| Manufacturer | Encoder Products Company (EPC) |
| Encoder Type | Incremental Shaft Encoder |
| Output Format | Quadrature (A, B channels) |
| Cycles Per Revolution (CPR) | 1024 |
| Supply Voltage | 5 VDC |
| Output Type | Open Collector – 250 mA max per channel |
| Max Frequency | 125 kHz (1–2500 CPR range) |
| Max Speed | 6000 RPM |
| Index Pulse | Once per revolution, 180° electrical |
| Rise Time | Less than 1 microsecond |
| Accuracy | Within 0.05° mechanical |
| Housing Style | Standard Cube (Industry-Standard) |
| Housing Material | Black non-corrosive finished 6063-T6 aluminum |
| Wall Thickness | 0.250" |
| Bearings | Precision ABEC ball bearings (sealed) |
| Radial Load Rating | 40 lb maximum |
| Axial Load Rating | 30 lb maximum |
| Starting Torque | 1 oz-in typical (3 oz-in w/ IP65 seal) |
| Moment of Inertia | 6.5 × 10⁻⁶ oz-in-sec² |
| Weight (Standard Housing) | 10 oz |
| Mounting | Tapped holes, face and base |
| Electrical Protection | Reverse voltage and output short circuit |
| Circuitry | Opto-ASIC single chip design |
| Common Applications | Feedback for Counters, PLCs & Motors, Cut-to-Length, Labeling, Packaging, Wire Winding, Film Extrusion |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type NPN Open Collector
Sensor Type Rotary Encoder
Manufacturer Accu-Coder
Part Number 716-D
Shelf D-7 Tub 7
Model 716-D
MPN 716-D
Type Incremental Encoder
