Product Description
The Allen-Bradley 140-MN-0063 is a Bulletin 140 manual motor starter / motor protection circuit breaker designed for industrial motor control and protection applications. This 3-pole unit features an adjustable full-load current setting from 0.40 to 0.63A with manual START and STOP/RESET controls.
This unit is Series C and includes an Allen-Bradley 140-A10 Series C auxiliary contact. The starter is manually operated and does not require a control coil.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140-MN-0063 |
| Series | C |
| Product Type | Manual Motor Starter / Motor Protection Circuit Breaker |
| Number of Poles | 3 |
| Adjustable FLA Range | 0.40 - 0.63A |
| Tripping Current | 1200% FLA |
| AC-3 Rating | 7A |
| General Use Rating | 2.5A, 600V, 3-Phase |
| Maximum Voltage | 690 VAC (IEC) |
| Interrupting Capacity | 100 kA @ 415V, 500V & 690V (per unit marking) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Controls | START / STOP-RESET / TEST |
| Coil Voltage | N/A - Manual Operation / No Coil |
| Terminal Identification | L1/L2/L3 Input - T1/T2/T3 Output |
| Wire Range | #16 through #10 AWG |
| Tightening Torque | 20-26 lb-in |
| Conductor | 75°C Copper Wire |

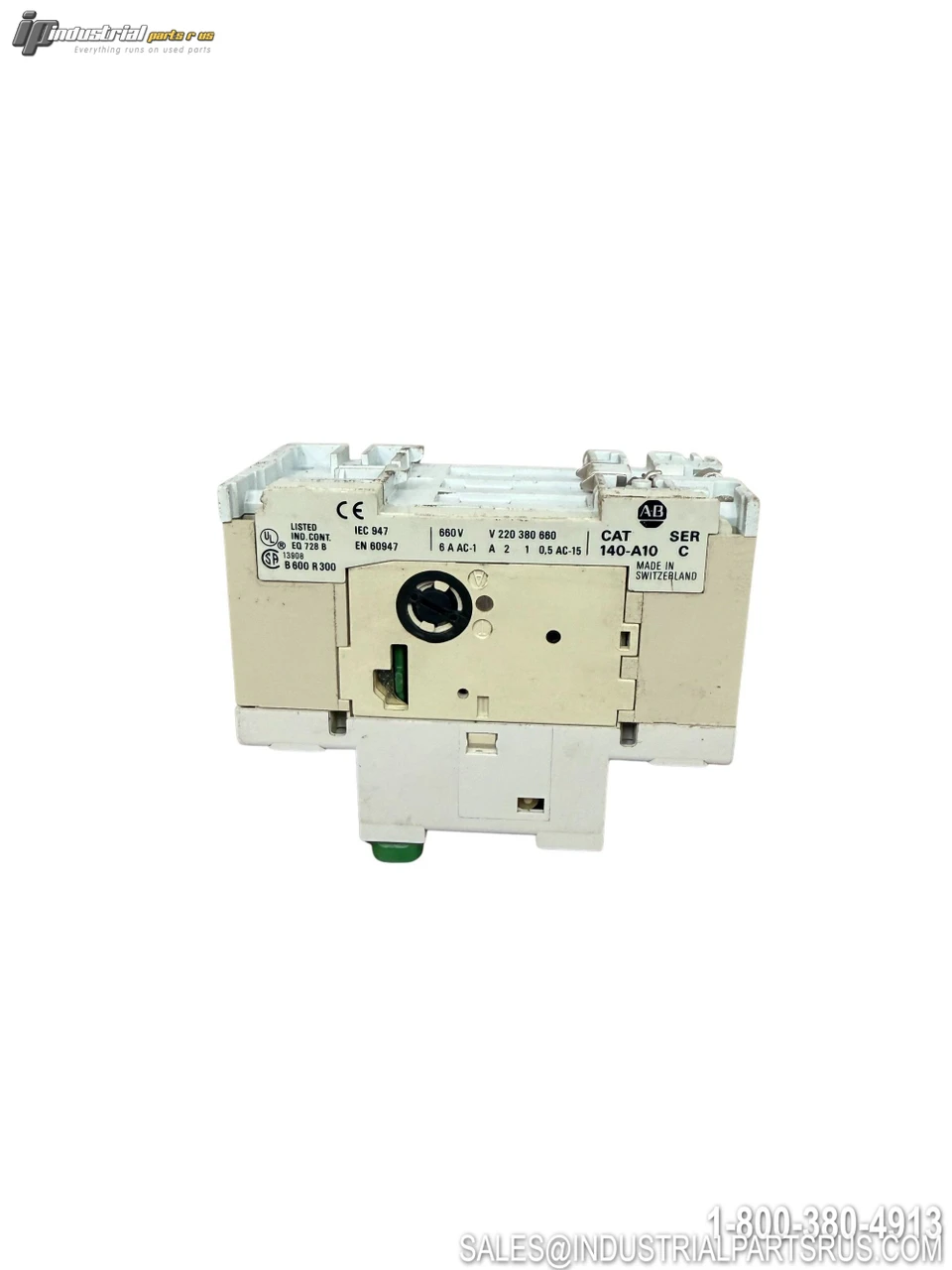

| Auxiliary Contact | Allen-Bradley 140-A10 Series C |
| Auxiliary Contact Rating | B600 / R300 |
| Standards Marked | IEC 947 / EN 60947 |
| Country of Manufacture | Switzerland |

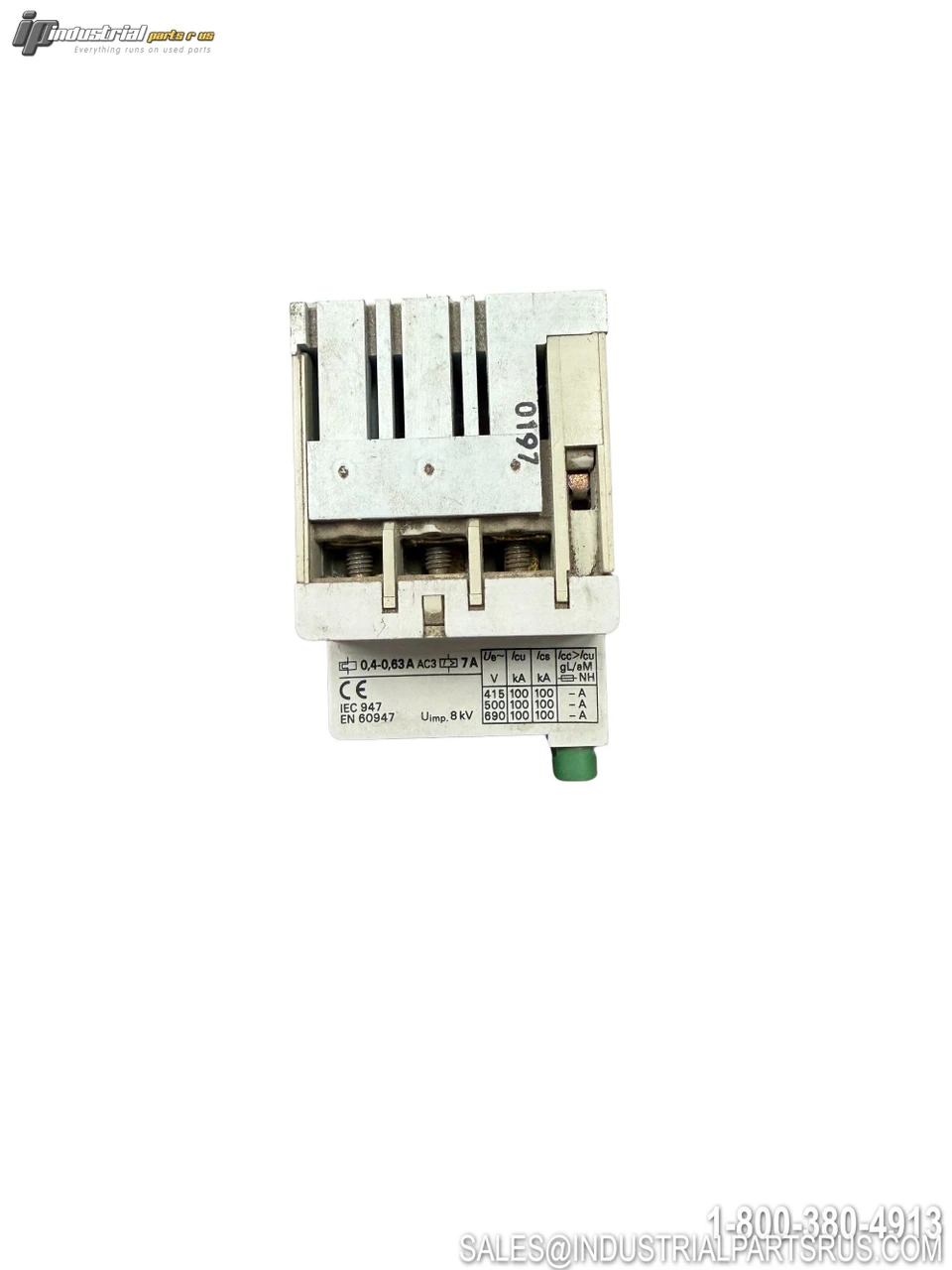

Condition: Pre-owned industrial equipment with cosmetic wear, discoloration, scratches, and marks from previous use. Please review all photos for the exact condition and configuration.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.4–0.63 A
Manufacturer Allen-Bradley
Enclosure Type IP20
Part Number 140-MN-0063
Shelf C-15 Tub 5
Model 140-MN-0063
MPN 140-MN-0063
Type Motor Starter
