Product Description

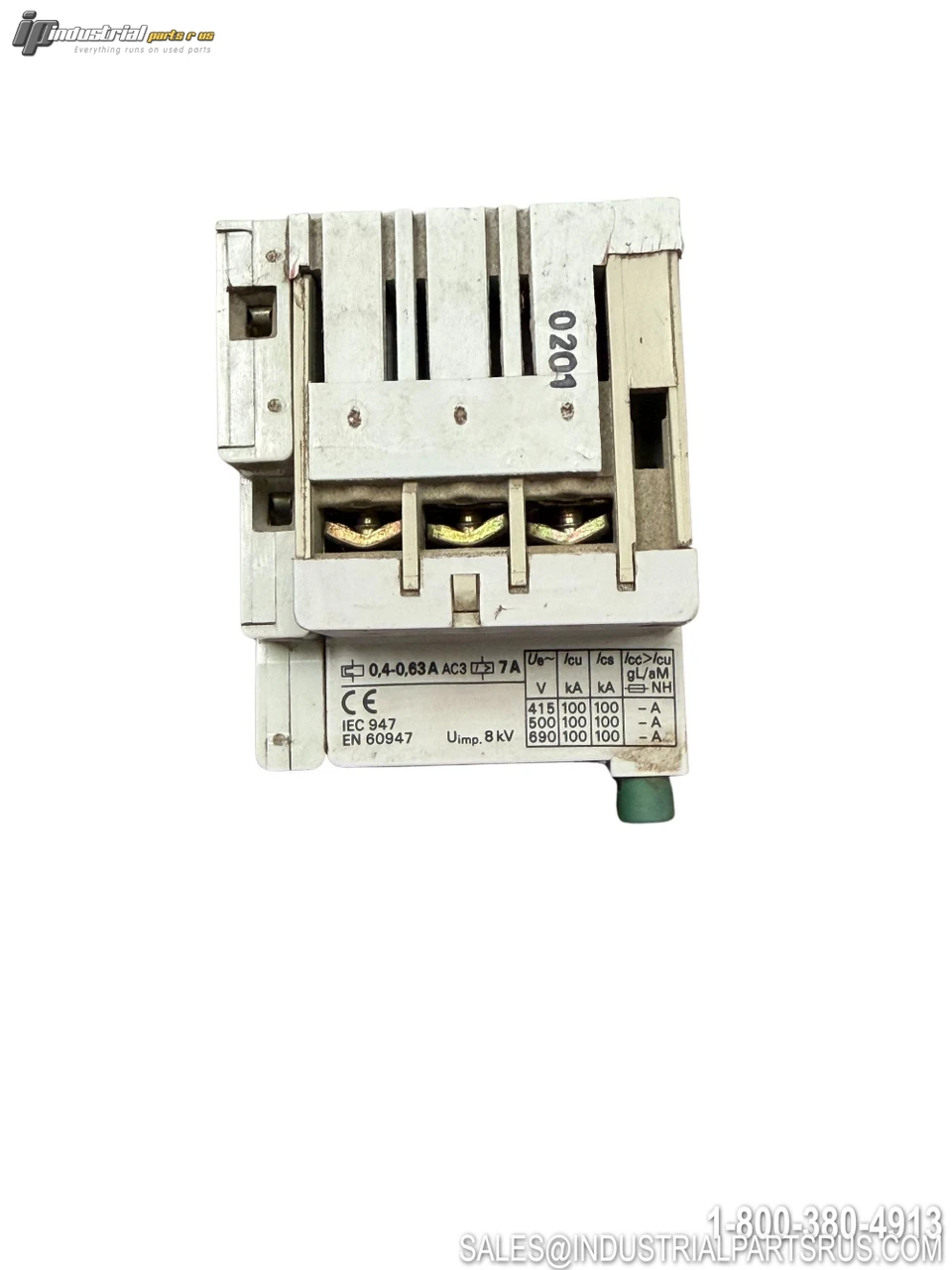

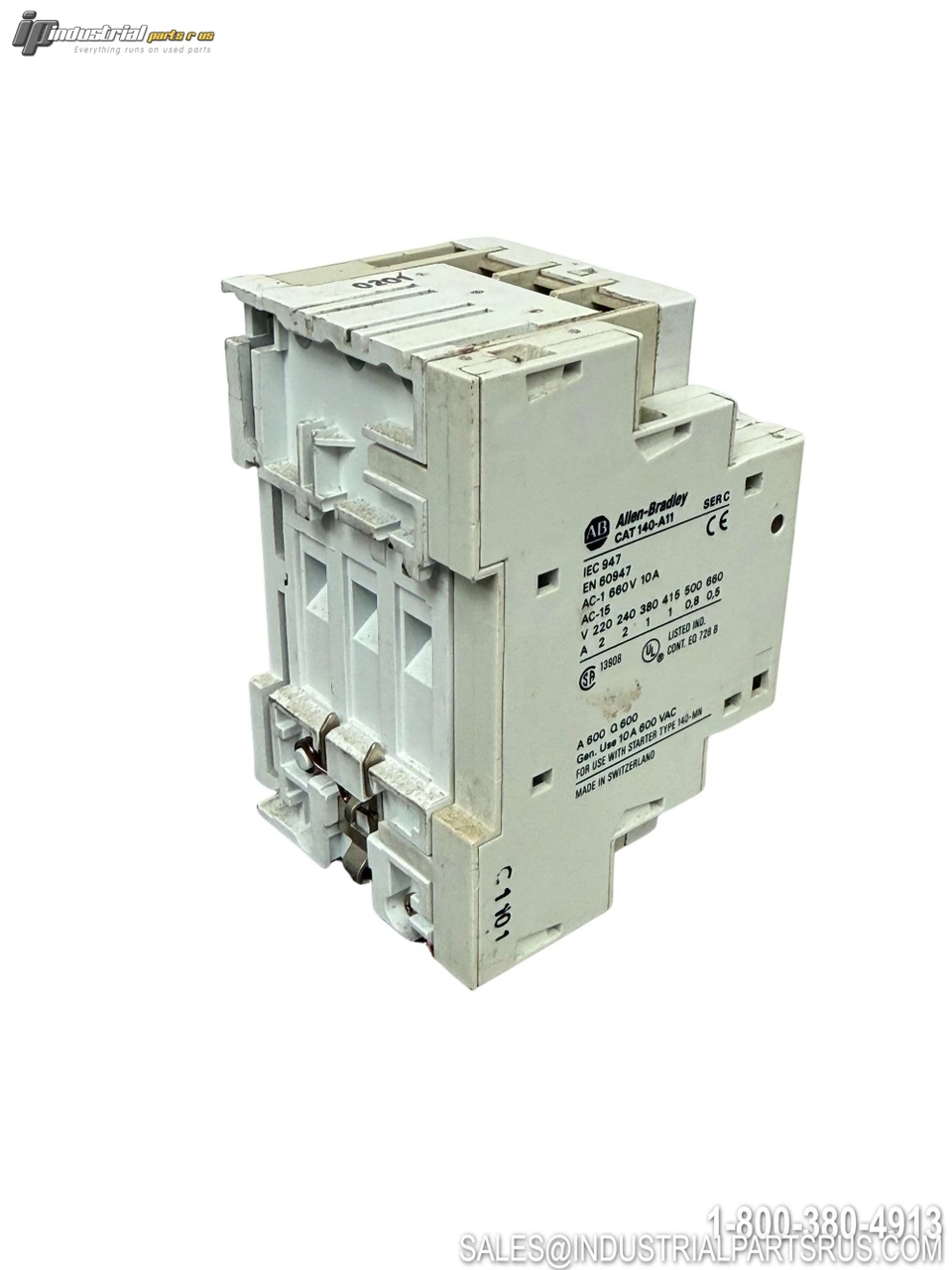

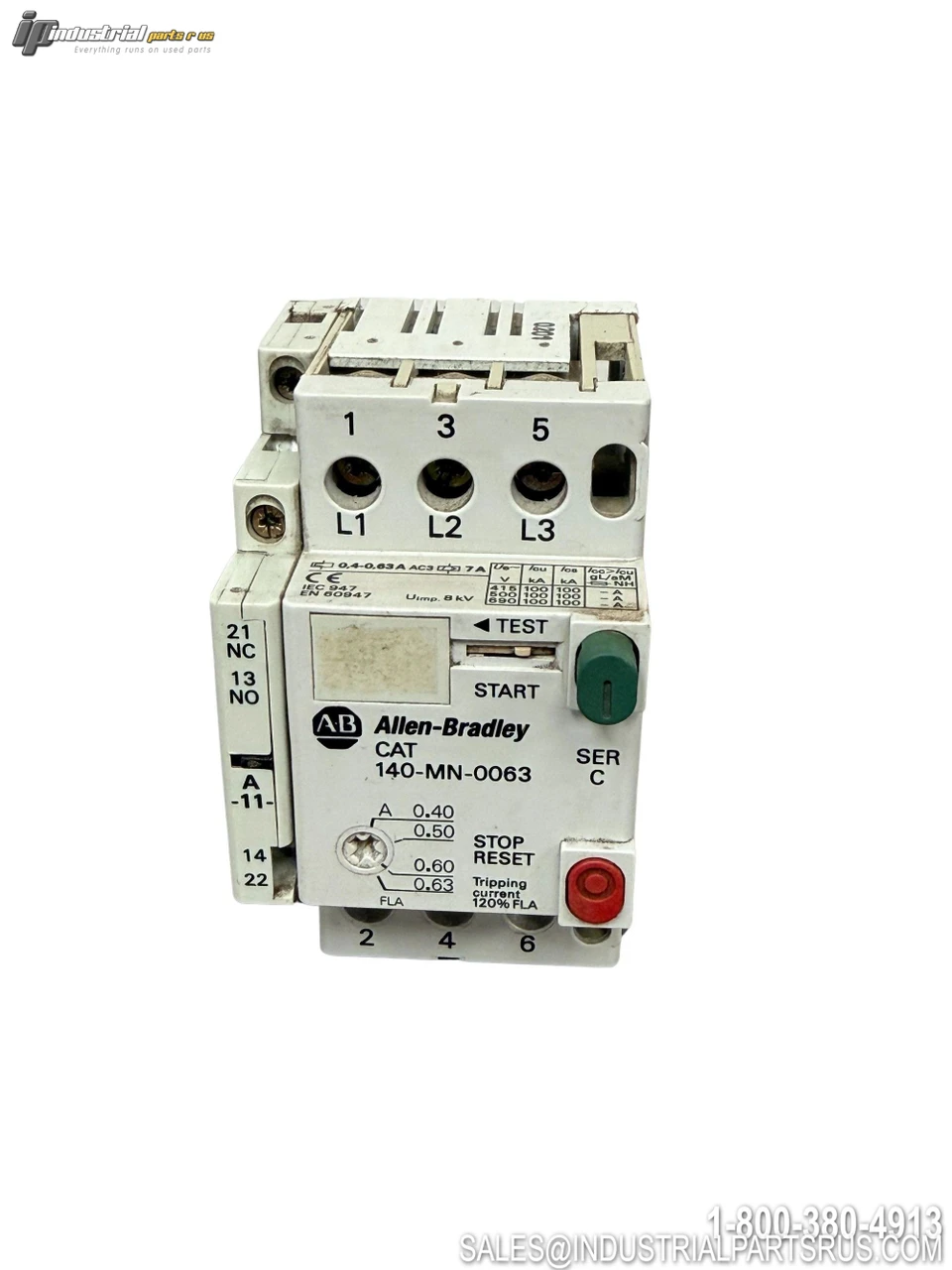

The Allen-Bradley 140-MN-0063 Series C is a 3-pole manual motor starter/protector designed for motor control and protection applications. This unit features an adjustable current range of 0.40–0.63A with thermal overload and magnetic short-circuit protection. The unit shown also includes an Allen-Bradley 140-A11 Series C auxiliary contact block with 1 normally open (N.O.) and 1 normally closed (N.C.) contact.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140-MN-0063 |
| Series | C |
| Product Type | Manual Motor Starter / Motor Protector |
| Number of Poles | 3 |
| Adjustable Current Range | 0.40–0.63 A |
| Tripping Current | 120% FLA |
| AC-3 Rating | 0.40–0.63 A |
| Magnetic Trip | 7 A |
| Impulse Withstand Voltage (Uimp) | 8 kV |
| IEC Breaking Capacity (Icu / Ics) | 100 kA @ 415V, 500V & 690V |
| General Use Rating | 2.5 A, 600V, 3-Phase |
| Wire Range | No. 16–10 AWG |
| Terminal Torque | 20–26 lb-in |
| Conductor | 75°C Copper Wire |
| Standards | IEC 947 / EN 60947 |
| Country of Manufacture | Switzerland |
| Auxiliary Contact Block | Allen-Bradley 140-A11, Series C |
| Auxiliary Contacts | 1 N.O. / 1 N.C. (13-14 / 21-22) |
| Auxiliary AC-1 Rating | 660V / 10A |
| Auxiliary Pilot Duty | A600 / Q600 |
Included: Allen-Bradley 140-MN-0063 Series C motor starter/protector with attached 140-A11 Series C 1NO/1NC auxiliary contact block, as pictured.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.63 A
Manufacturer Allen-Bradley
Enclosure Type IP20
Part Number 140-MN-0063
Shelf C-15 Tub 5
Model 140-MN-0063
MPN 140-MN-0063
Type Motor Starter
