Product Description
The Allen-Bradley 140M-C2E-B16 is a Bulletin 140M motor protection circuit breaker designed for motor switching, overload protection, and short-circuit protection in industrial motor control applications. This 3-pole unit features an adjustable current setting of 1.0–1.6A and a manual rotary ON/OFF control.

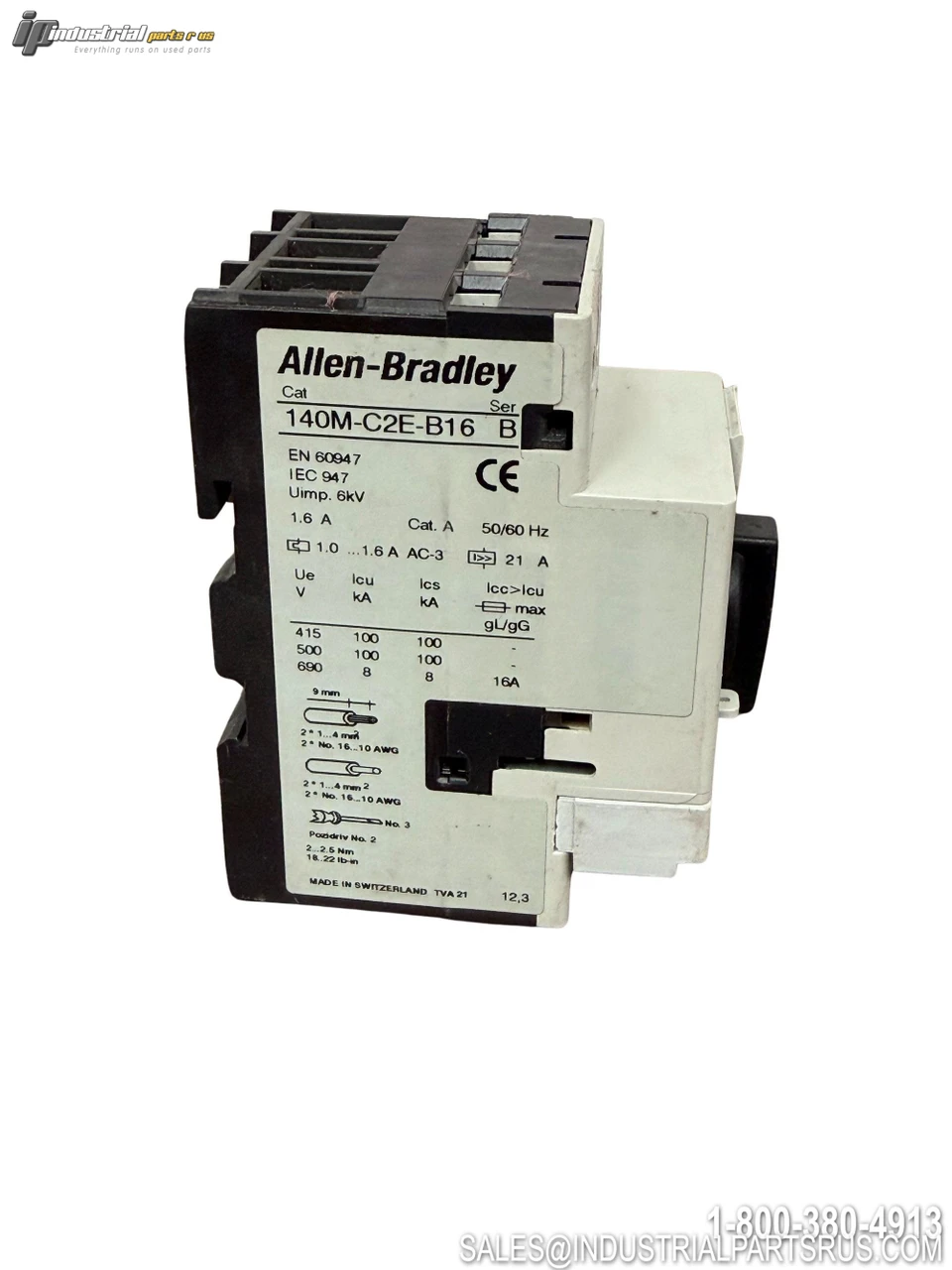

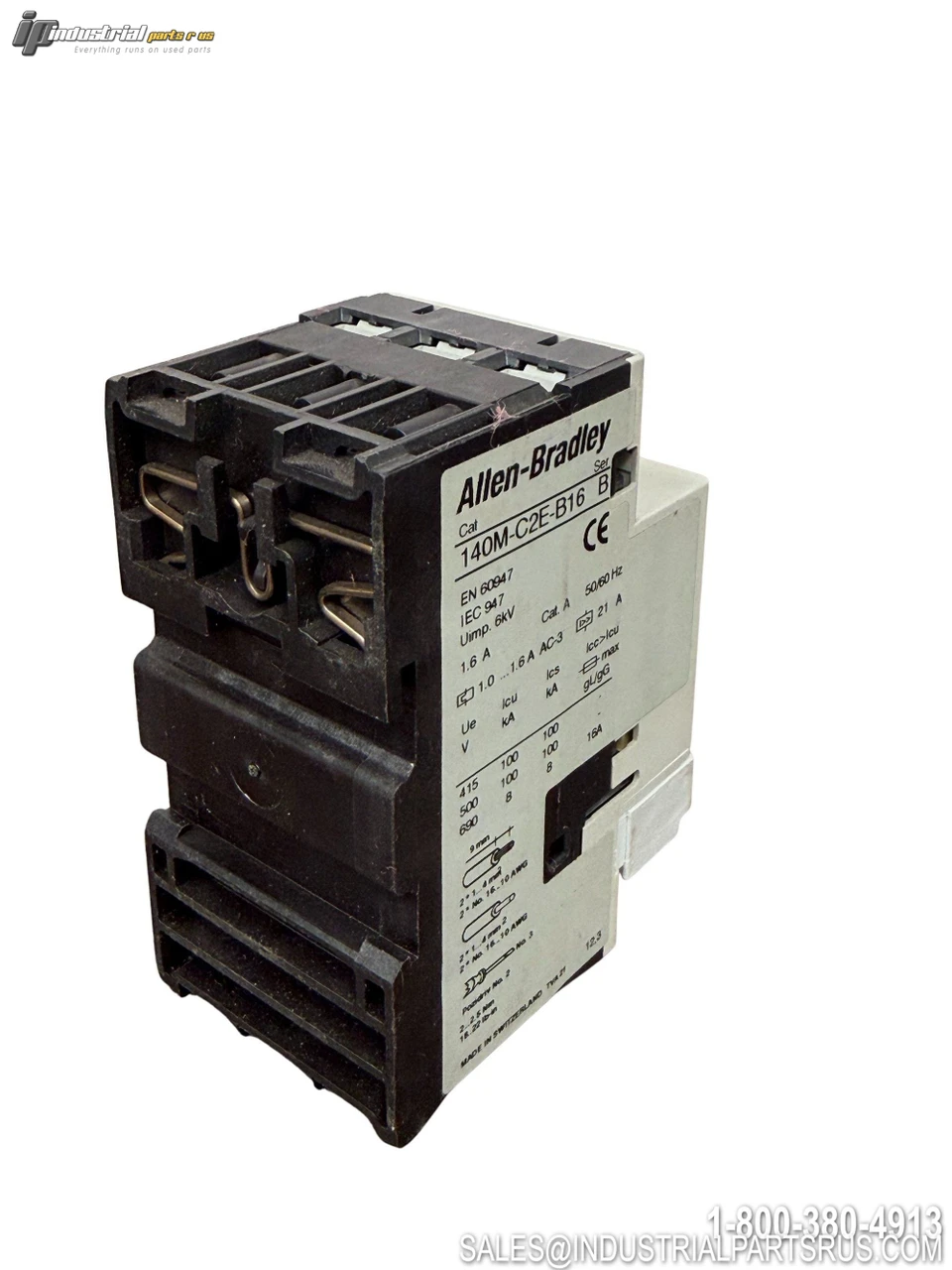

The unit shown is Series B and is rated for operation on 50/60 Hz systems. Please refer to the specifications below and photos for the exact markings and configuration of this unit.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140M-C2E-B16 |
| Series | B |
| Product Type | Motor Protection Circuit Breaker / Manual Motor Controller |
| Number of Poles | 3 |
| Rated Current | 1.6 A |
| Adjustable Current Range | 1.0–1.6 A |
| Magnetic Trip | 21 A |
| Utilization Category | AC-3 |
| Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | Up to 690 VAC |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Breaking Capacity (Icu/Ics) | 100 kA @ 415V; 100 kA @ 500V; 8 kA @ 690V |
| Maximum Backup Fuse | 16 A @ 690V (where required) |
| Operation | Manual Rotary ON/OFF Handle |
| Auxiliary Contact | 1 Normally Open (13–14) |
| Standards | EN 60947 / IEC 947 |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley / Rockwell Automation |
Note: This is a manually operated motor protection circuit breaker and does not use an electrical control coil.
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Shelf C-15 Tub 5
GTIN 679523686161
Mounting Style 35 mm DIN Rail
Current Rating 1.6 A
Material Glass-Filled Thermoplastic (Molded Case)
Full Load Amps 1.6 A
Manufacturer Allen-Bradley
Enclosure Type IP20
Part Number 140M-C2E-B16
Model 140M-C2E-B16
MPN 140M-C2E-B16
Voltage 600V AC
Type Circuit Breaker
