Product Description

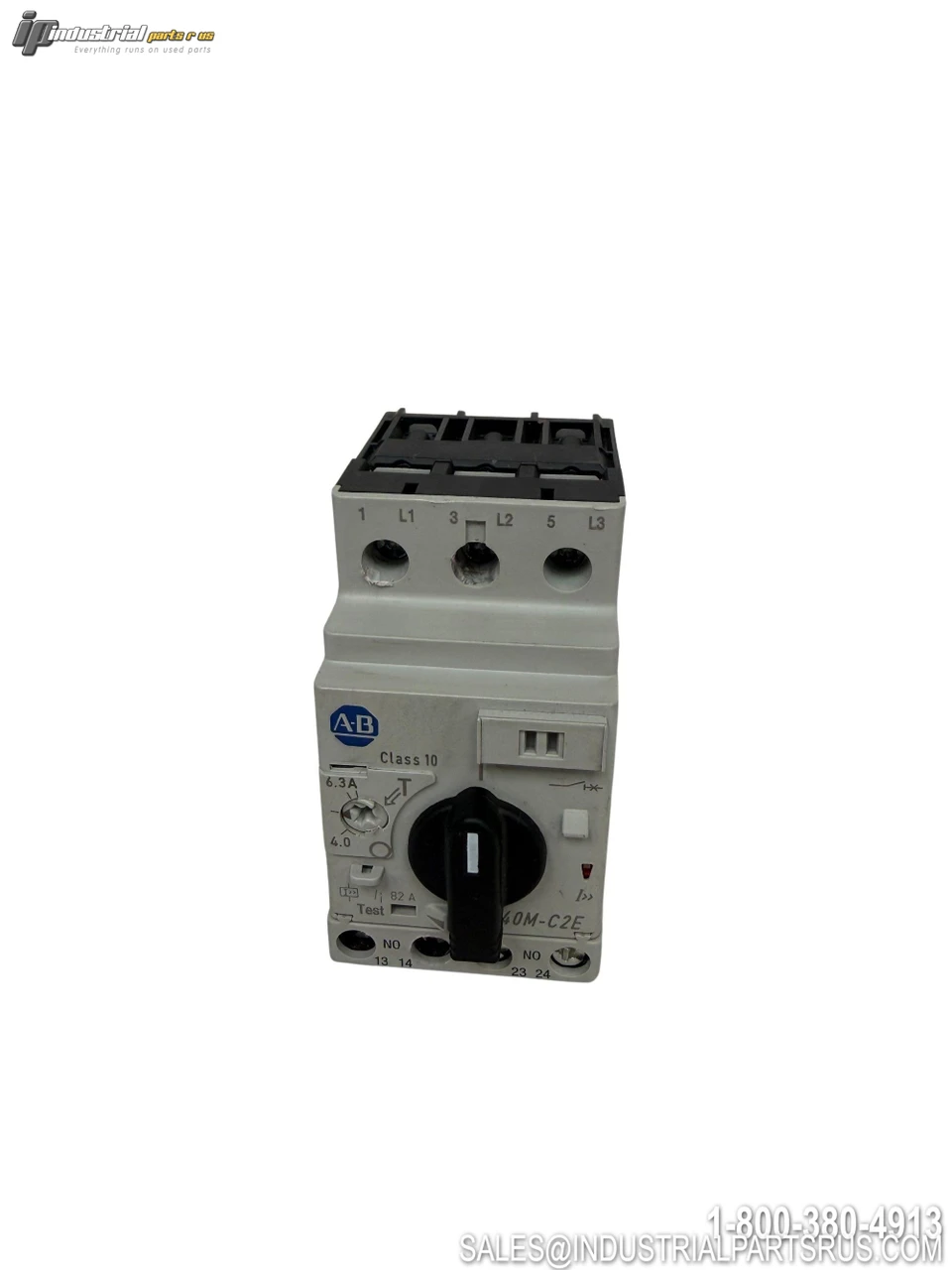

The Allen-Bradley 140M-C2E-B63 is a Bulletin 140M Motor Protection Circuit Breaker designed for motor switching and protection applications. This 3-pole unit features an adjustable current setting of 4.0 to 6.3 A, Class 10 overload protection, and a rotary manual operator. The unit is rated for 50/60 Hz operation and carries IEC/EN 60947-2 and 60947-4-1 markings.
The 140M-C2E-B63 can be used as a manual motor controller and provides overload and short-circuit protection when applied according to the manufacturer's specifications. Please verify compatibility and application requirements before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 140M-C2E-B63 |
| Series | C |
| Bulletin | 140M |
| Product Type | Motor Protection Circuit Breaker / Manual Motor Controller |
| Number of Poles | 3 |
| Adjustable Current Range | 4.0 - 6.3 A |
| Maximum Current Setting | 6.3 A |
| Trip Class | Class 10 |
| Magnetic Trip | 82 A |
| Frequency | 50/60 Hz |
| Rated Impulse Withstand Voltage | 6 kV |
| IEC Operational Voltage | Up to 690 VAC |
| UL Maximum Voltage | 600 VAC |
| IEC Breaking Capacity (400V) | 100 kA |
| IEC Breaking Capacity (690V) | 4 kA |
| Horsepower Rating - 3 Phase, 115V | 2 HP |
| Horsepower Rating - 3 Phase, 230V | 3 HP |
| Horsepower Rating - 3 Phase, 460V | 5 HP |
| Horsepower Rating - 3 Phase, 575V | 5 HP |
| Operator Type | Rotary Manual Operator |
| Test Function | Yes |
| Standards | IEC/EN 60947-2, IEC/EN 60947-4-1 |
| Country of Manufacture | Switzerland |
Note: Ratings and specifications above are based on the markings visible on the unit. Installation and application should follow the manufacturer's requirements.
