Product Description

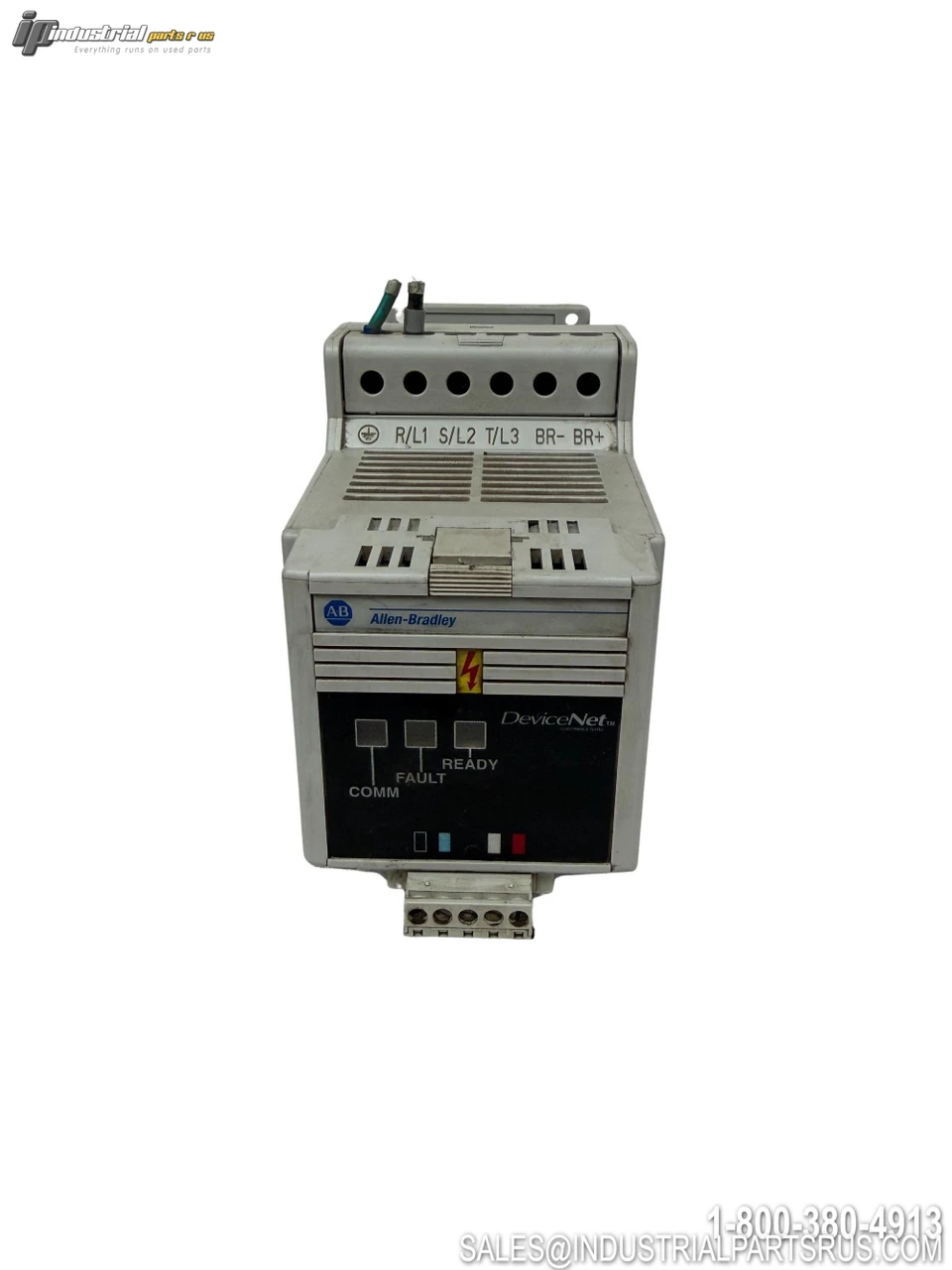

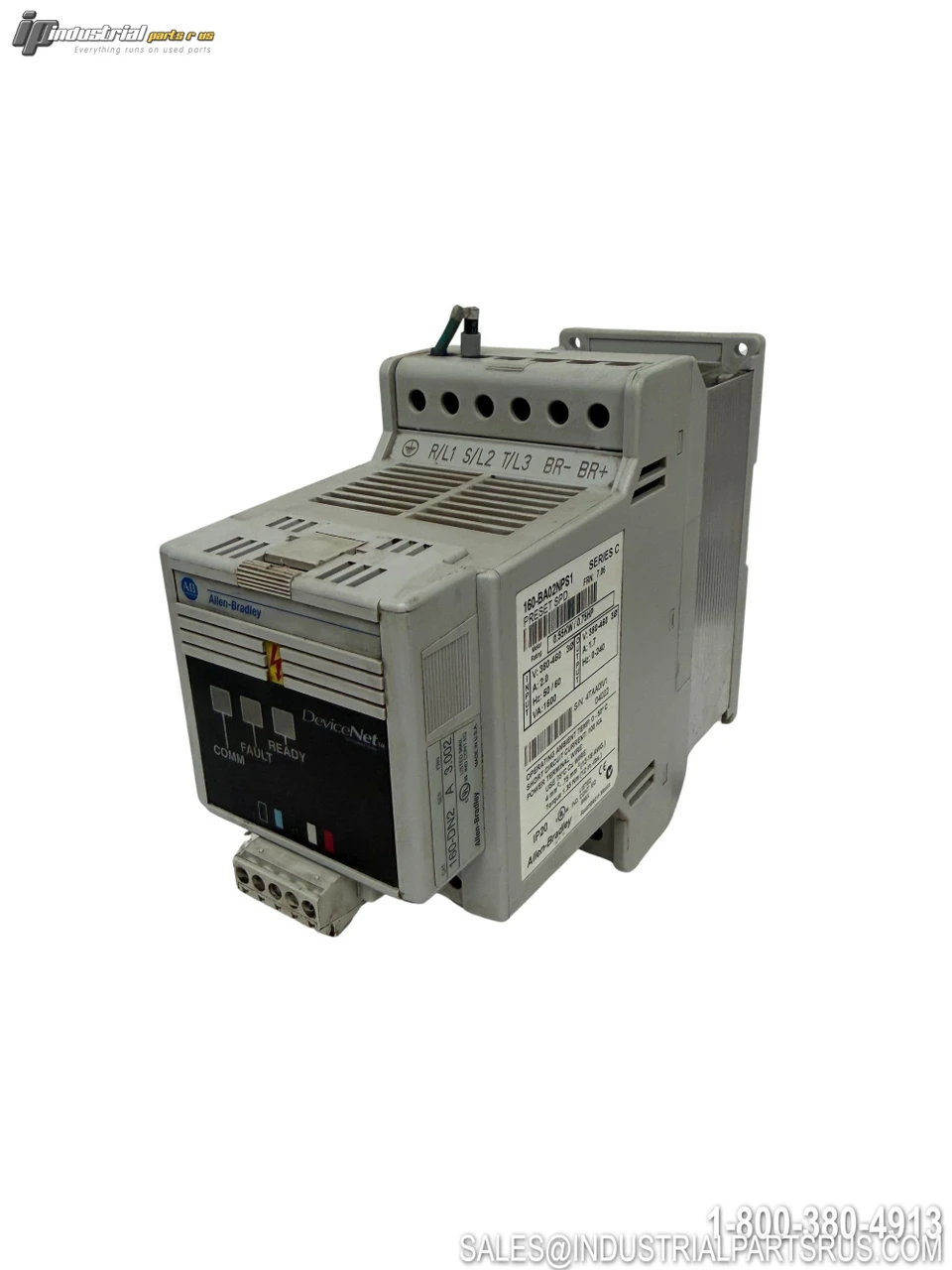

The Allen-Bradley 160-BA02NPS1 is a Bulletin 160 Smart Speed Controller (SSC), a compact variable frequency drive (VFD) designed for speed control of three-phase induction AC motors. It is microprocessor-controlled and fully programmable, accepting a 380–460V three-phase input and delivering up to 2.3A output current at a 0.75kW (1 HP) motor rating. This is the Preset Speed (NPS1) variant, offering up to eight user-defined preset speeds via open-collector control inputs, and features Sine Weighted PWM with Harmonic Compensation using IGBT switching technology.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 160-BA02NPS1 |
| Product Family | Bulletin 160 SSC (Smart Speed Controller) |
| Series | See label (B and C confirmed in market) |
| Firmware Revision (FRN) | See label |
| Drive Type | Variable Frequency Drive (VFD) / Variable Speed Drive |
| Control Mode | Preset Speed (NPS1) |
| Input Voltage | 380–460V AC |
| Input Frequency | 50/60 Hz |
| Input Phase | 3-Phase |
| Output Voltage | 380–460V AC (3-Phase) |
| Output Current Rating | 2.3A |
| Rated Power (kW) | 0.75 kW |
| Rated Power (HP) | 1 HP |
| Output Frequency Range | 0–240 Hz (programmable) |
| PWM Algorithm | Sine Weighted PWM with Harmonic Compensation |
| Switching Device | IGBT (Intelligent Power Module) |
| Carrier Frequency | 2–8 kHz adjustable (factory default 4 kHz) |
| Speed Control Method | Volts/Hertz (V/Hz), programmable ratio |
| Preset Speeds | Up to 8 preset speeds via open-collector inputs (SW1, SW2, SW3) |
| Enclosure Type | IP20 / Open Style (Chassis Mount) |
| Cooling Method | Convection cooled |
| Operating Temperature | 0–50°C |
| Storage Temperature | -40–85°C |
| Mounting | Panel (flat vertical surface) or 35mm DIN Rail |
| Clearance Required | 12.5mm front, top, and bottom; none between units |
| Control Terminal Block | TB3 (Forward/Reverse, Start, Stop, SW1, SW2, SW3) |
| Relay Output | 1 programmable Form C relay (0.4A@125VAC, 0.2A@230VAC, 2A@30VDC) |
| Indicators | Ready and Fault indicator LEDs / panel |
| Optional Communications | DeviceNet, RS-232 (optional modules) |
| Motor Type | 3-Phase AC Induction Motor |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Status | Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type IP20 Open Style (Chassis Mount)
Part Number 160-BA02NPS1
Shelf E-19
Model 160-BA02NPS1
MPN 160-BA02NPS1
Type Variable Frequency Drive
