Product Description

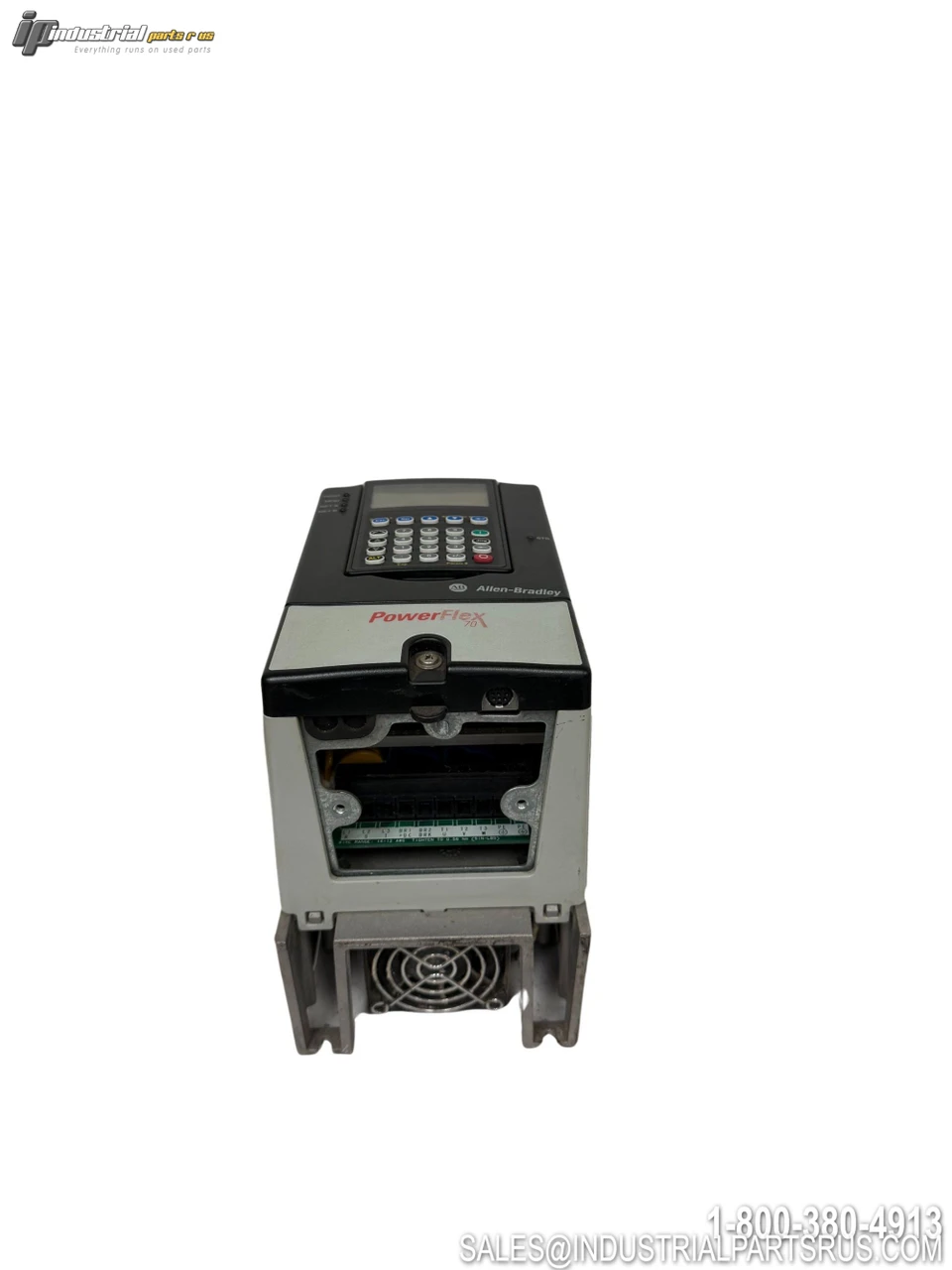

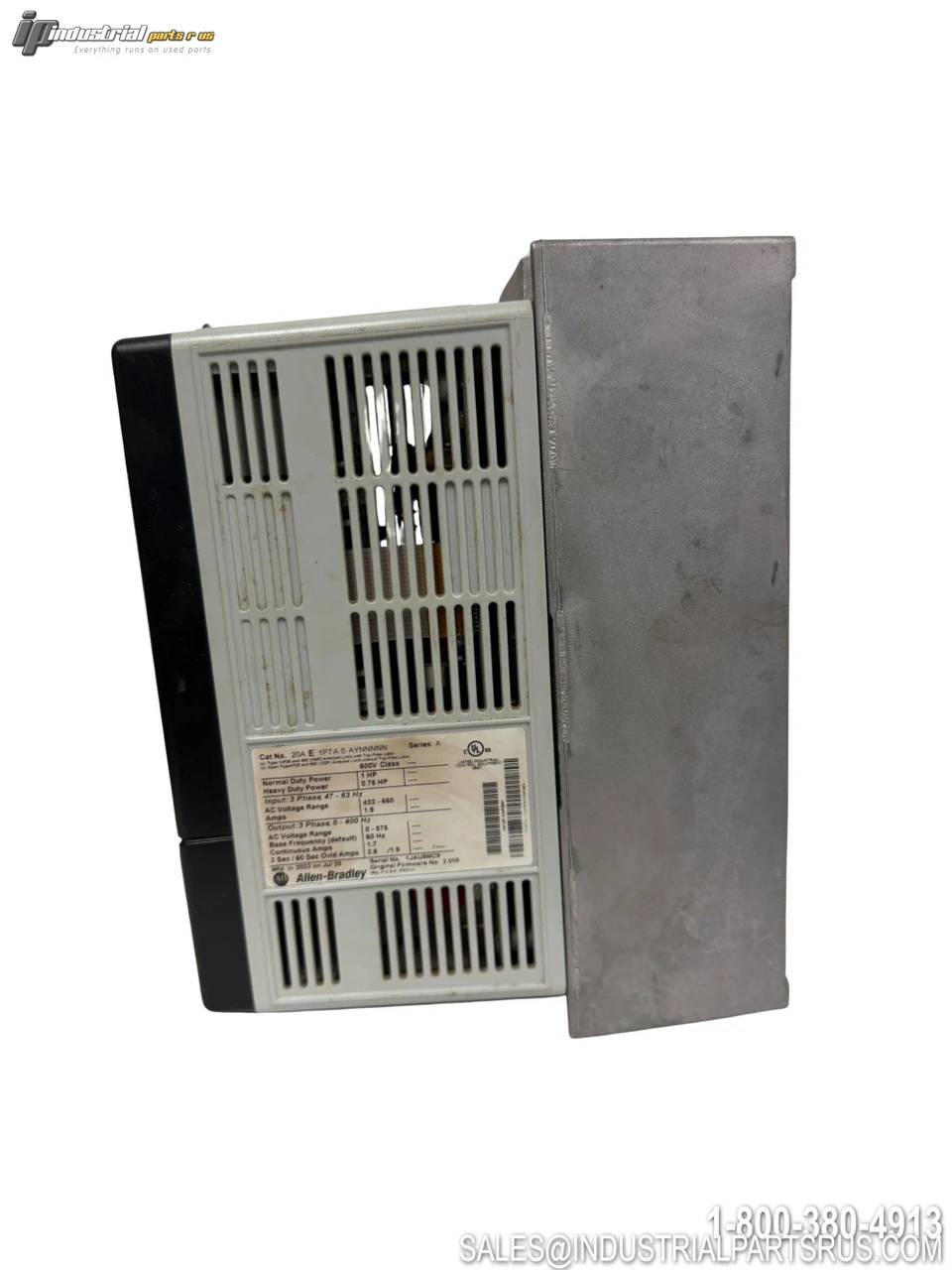

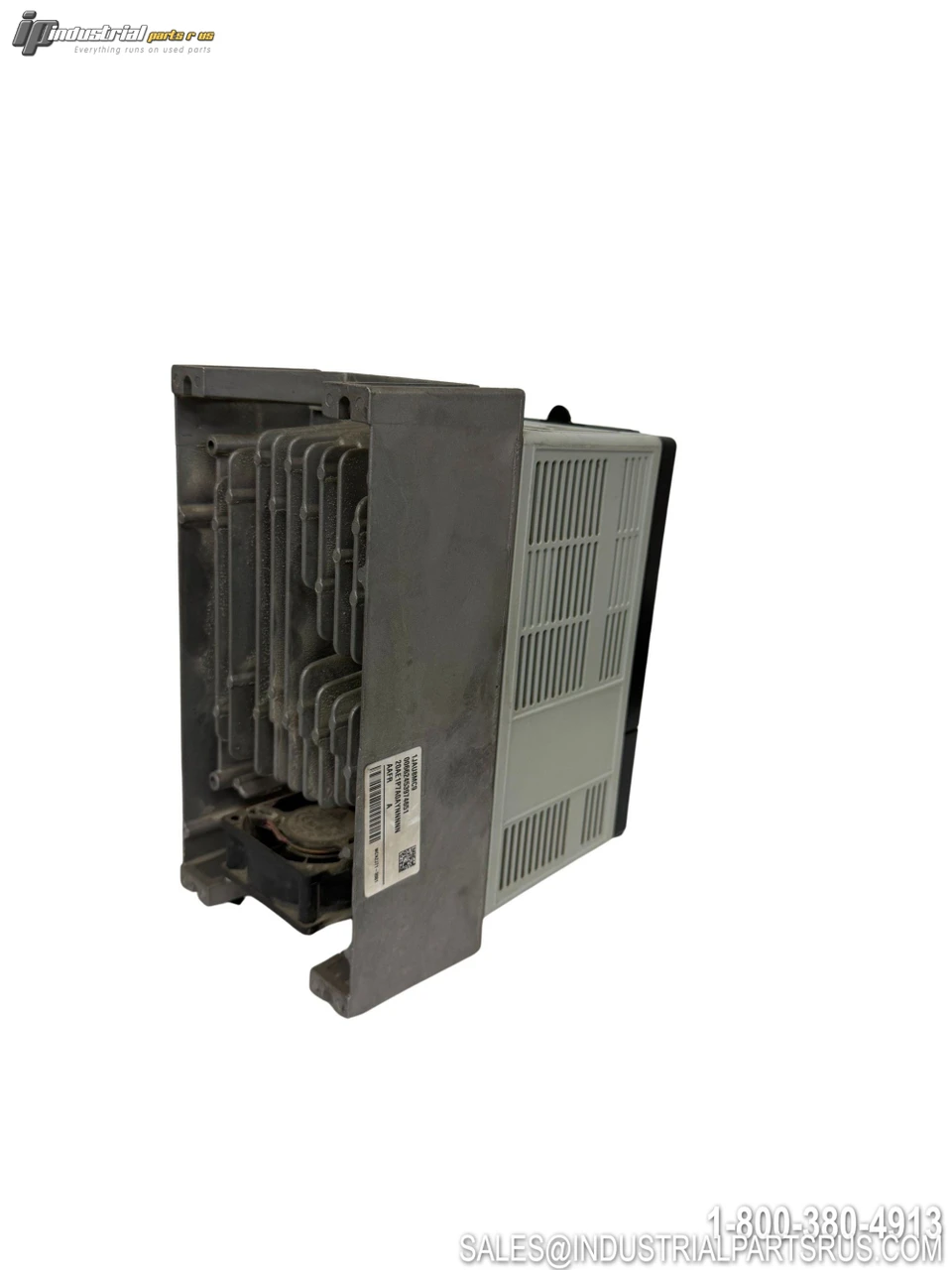

The Allen-Bradley 20AE1P7A0AYNNNNN is a PowerFlex 70 series adjustable frequency AC drive (VFD) rated for 600V AC three-phase input with a 1 HP (0.75 kW) normal-duty output at 1.7 amps continuous. It features a panel-mount IP20/NEMA Type 1 enclosure (Frame A), an integral brake IGBT, a blank cover (no HIM), standard control, no internal EMC filter, and no communication module. The PowerFlex 70 supports V/Hz, sensorless vector, and Vector control with FORCE Technology for demanding industrial motor speed and torque control applications. No bypass is included.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 20A E 1P7A 0 AYNNNNN |
| Platform / Product Family | PowerFlex 70 |
| Product Type | Variable Frequency Drive (VFD) / AC Drive |
| Input Voltage | 432–660V AC (Nominal 600V AC) |
| Output Voltage | 0–575V AC |
| Phase | 3-Phase |
| Input Amperage | 1.9 A |
| Output Current (Continuous / ND) | 1.7 A |
| Output Current (1 min overload) | 1.9 A |
| Output Current (3 sec overload) | 2.6 A |
| Normal Duty (ND) Power Rating | 1 HP / 0.75 kW |
| Heavy Duty (HD) Power Rating | 0.75 HP / 0.55 kW |
| Frame Size | A |
| Enclosure Type | IP20 / NEMA UL Type 1 (Panel Mount) |
| Mounting Type | Panel Mount |
| Output Frequency Range | 0–400 Hz |
| HIM / Operator Interface | Blank Cover (No HIM) |
| Brake IGBT | Yes (Integral) |
| Internal Brake Resistor | No |
| EMC / RFI Filter | None (Not Filtered) |
| Communication Module | None |
| Control Type | Standard Control (V/Hz, Sensorless Vector) |
| Feedback | No Feedback |
| Documentation Included | English User Manual & Multi-Language Quick Start |
| ND Overload Capability | 110% for 60 sec; 150% for 3 sec |
| HD Overload Capability | 150% for 60 sec; 200% for 3 sec |
| Operating Temperature | 0 to 50°C |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Digital Inputs | 6 |
| Relay Outputs | 2 |
| PTC Input | 1 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Allen-Bradley
Enclosure Type IP20 / NEMA UL Type 1
Part Number 20A E 1P7A 0 AYNNNNN
Shelf E-19
Input Voltage 432-660V AC (600V Nominal)
Model 20A E 1P7A 0 AYNNNNN
MPN 20A E 1P7A 0 AYNNNNN
Type VFD
