Product Description

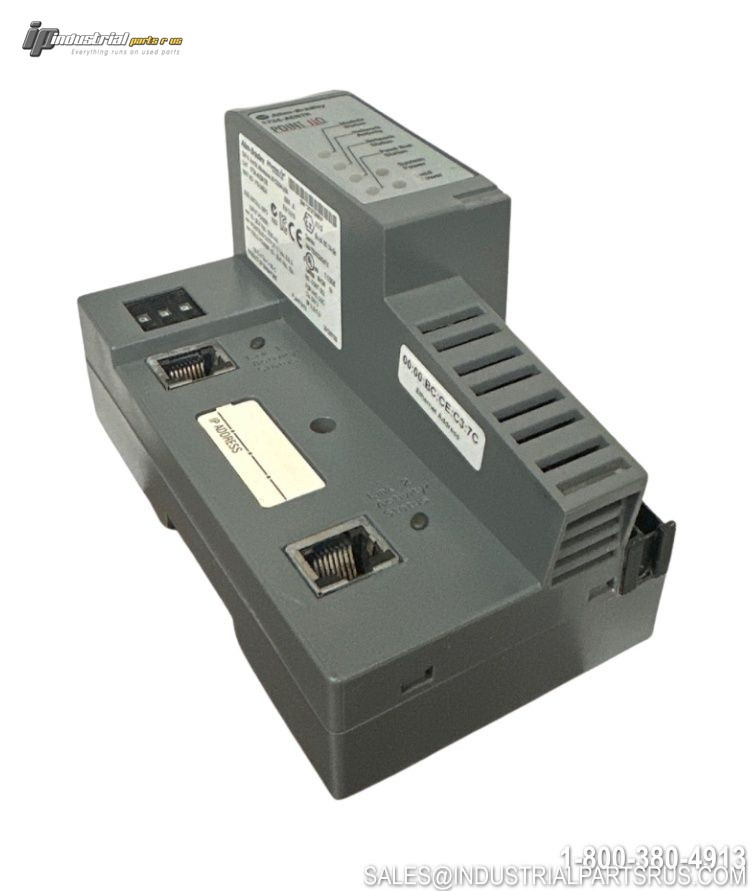

The Allen-Bradley 1734-AENTR is a POINT I/O Dual Port EtherNet/IP Network Adapter Module designed for industrial automation applications. This dual Ethernet communication module interfaces POINT I/O racks to the central controller in the Ethernet/IP network. It features two ports configured as embedded switches with Category 5 RJ-45 connectors supporting ring, daisy chain/linear, star, and tree network topologies.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1734-AENTR |
| Series | POINT I/O |
| Module Type | Ethernet/IP Adapter Module |
| Input Voltage | 24 VDC |
| Input Voltage Range | 10-28.8 VDC |
| Communication Rate | 10/100 Mbps Half/Full Duplex |
| Ethernet Ports | 2 Ports (Embedded Switch) |
| Maximum Power Consumption | 10.4 Watts at 28.8 VDC |
| Maximum I/O Capacity | 63 Modules |
| Maximum Inrush Current | 6 Amps for 10ms |
| Operating Temperature | -20°C to 60°C |
| Isolation Voltage | 50V Continuous |
| Dimensions | 76.2 x 73.0 x 133.4 mm |
| Weight | 0.62 pounds (280g) |
| Mounting Type | DIN Rail |
| Enclosure Type | Open |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 6 Amps for 10ms
Manufacturer Allen-Bradley
Enclosure Type Open
Part Number 1734-AENTR
Controller Platform POINT I/O
Shelf K-46
Model 1734-AENTR
MPN 1734-AENTR
Type Communication Module
