Product Description

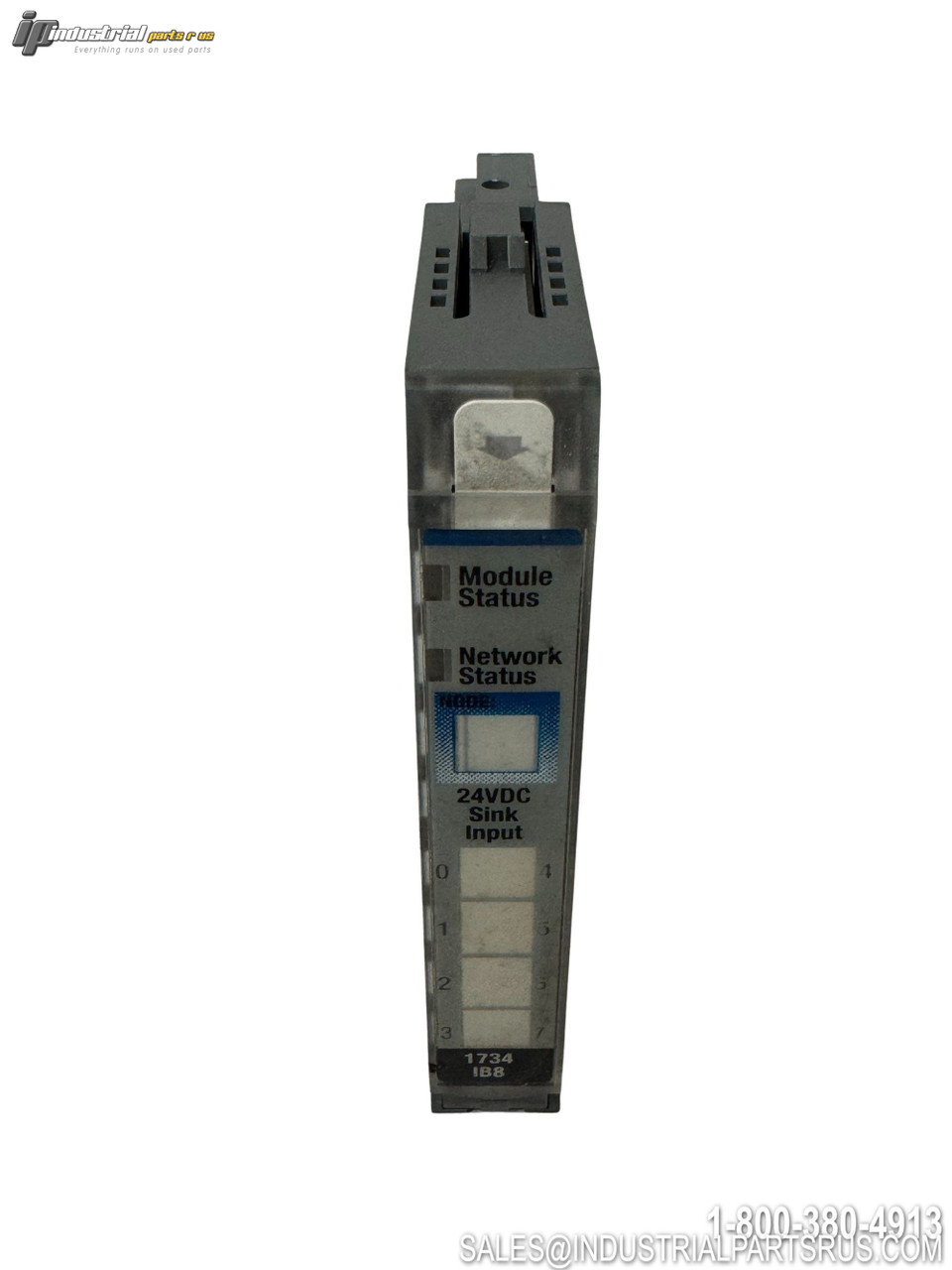

The Allen-Bradley 1734-IB8 Series D is a POINT I/O digital input module designed for industrial automation applications. This module provides 8 channels of digital DC input with sinking configuration, operating at 24 volts DC nominal with a wide input voltage range from 10 to 28.8 volts DC.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 1734-IB8 Ser.D |
| Platform | POINT I/O |
| Series | D |
| Input Points | 8 |
| Input Type | Digital DC Sinking |
| Input Voltage (Nominal) | 24VDC |
| Input Voltage Range | 10-28.8VDC |
| On-State Current (Min) | 2mA |
| On-State Current (Max) | 5mA |
| On-State Current (Nominal) | 4mA @ 24VDC |
| Off-State Voltage (Max) | 5VDC |
| Off-State Current (Min) | 1.5mA |
| Input Impedance (Nominal) | 3.6 kΩ |
| Input Impedance (Max) | 4.7 kΩ |
| POINTBus Current (Max) | 75mA @ 5VDC |
| Power Dissipation (Max) | 1.6W @ 28.8VDC |
| Thermal Dissipation | 5.5 BTU/hr @ 28.8VDC |
| Isolation Voltage | 50VDC (continuous) |
| LED Indicators | 1 Network Status, 1 Module Status, 8 Input Status |
| Enclosure Type | Open Style |
| Mounting Type | DIN Rail |
| Compatible Terminal Base | 1734-TB, 1734-TBS |
| Bulletin | 1734 |
| UPC | 612598308576 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 2mA
Manufacturer Allen-Bradley
Enclosure Type Open Style
Part Number 1734-IB8 SER.D
Controller Platform POINT I/O
Shelf F-3 Tub11
Model 1734-IB8 SER.D
MPN 1734-IB8 SER.D
Type I/O Module
