Product Description

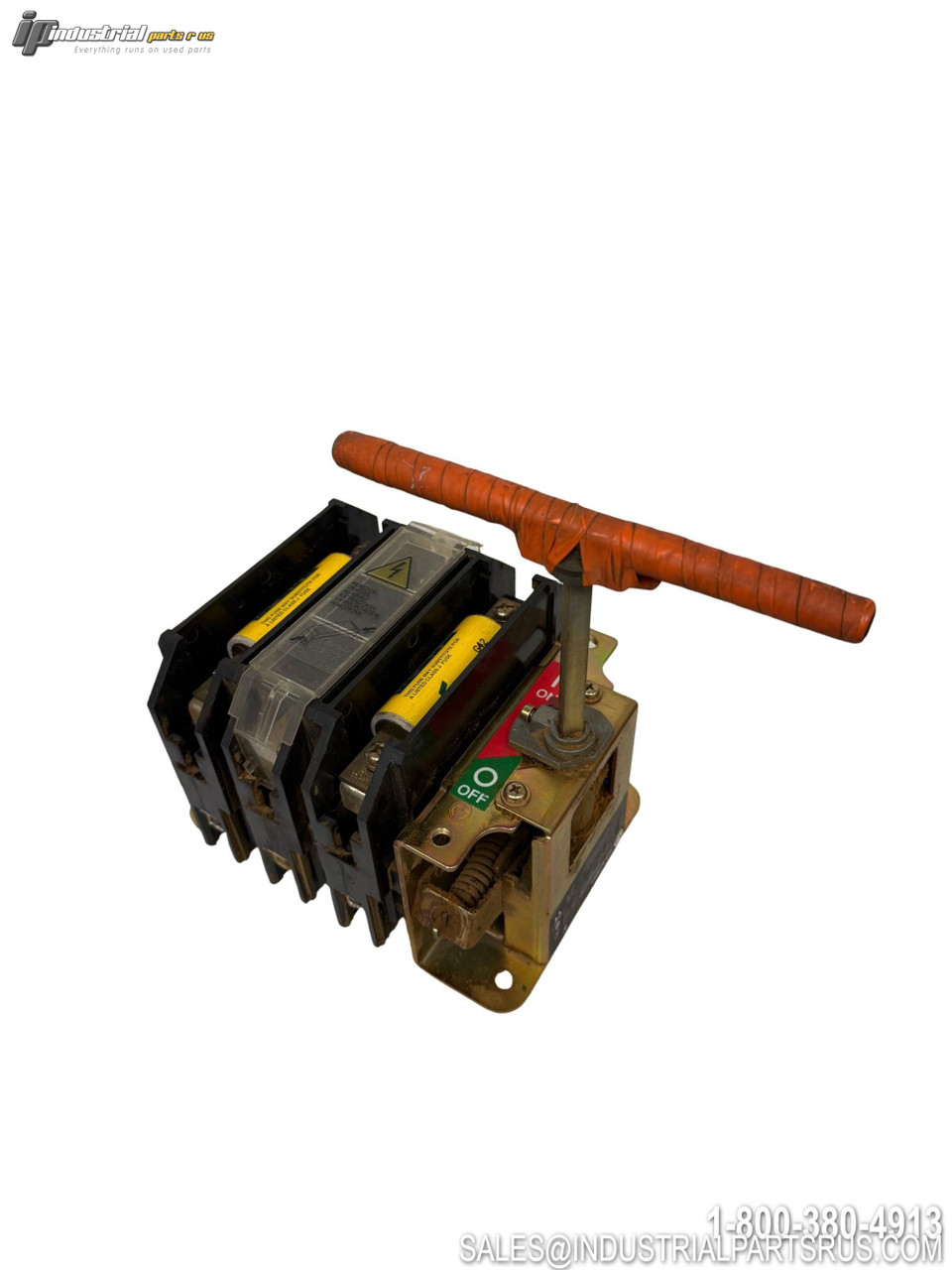

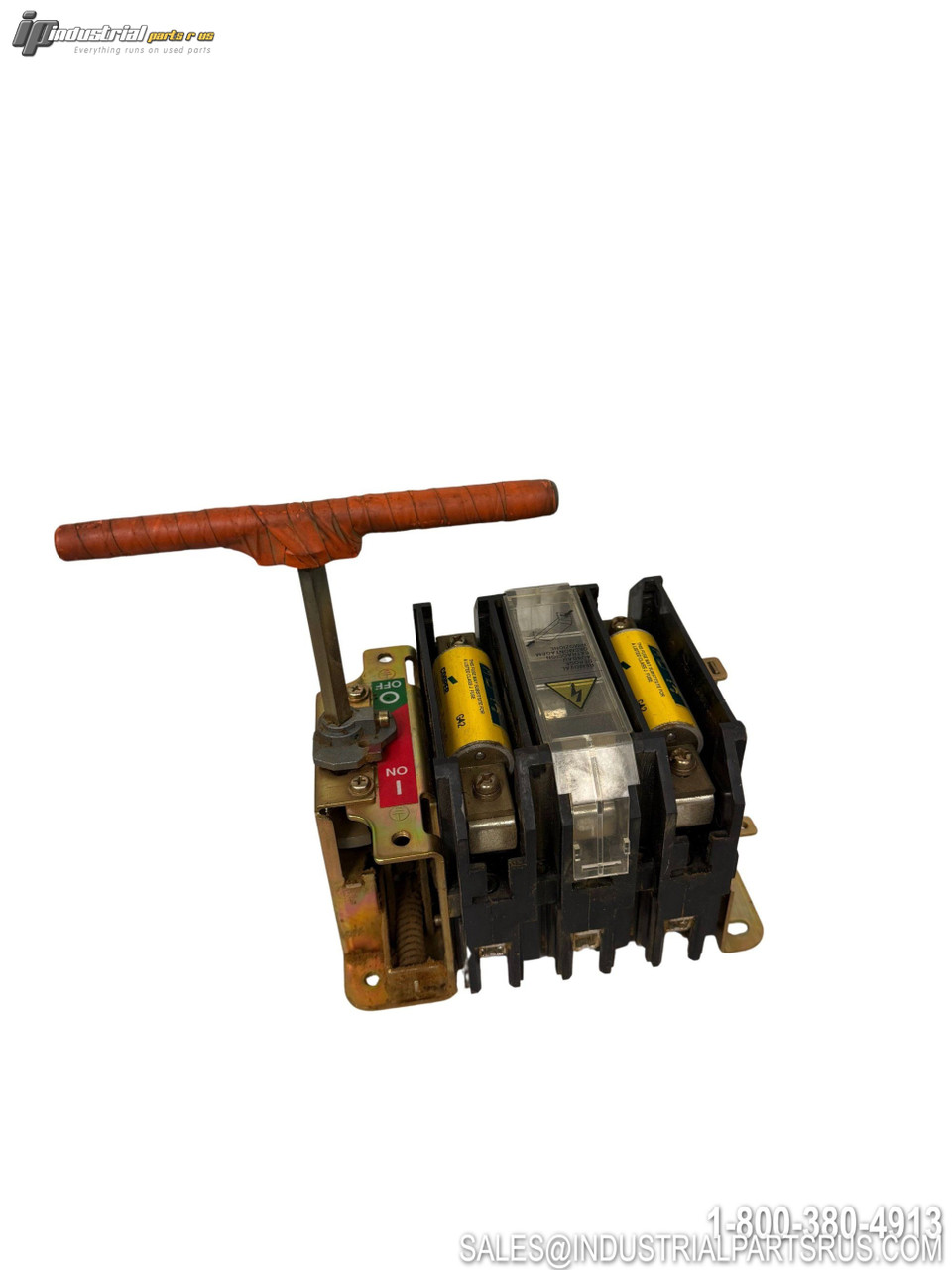

The Allen-Bradley 194R-NJ100P3 is an IEC fused rotary disconnect switch designed for industrial power distribution and motor control applications. This 100-amp, 3-pole switch provides reliable electrical isolation and overcurrent protection, featuring open-style construction compatible with UL Class CC and Class J fuses.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 194R-NJ100P3 |
| Product Type | IEC Fused Disconnect Switch |
| Series | 194R |
| Current Rating | 100A |
| Voltage Rating AC | 600VAC |
| Voltage Rating DC | 250VDC |
| Number of Poles | 3 |
| Style | Open |
| Switch Type | Rotary |
| Fuse Type Compatibility | UL Class CC & J, CSA HRCI-J |
| Standard | IEC 60947-3 |
| Certifications | UL Listed, CSA Certified |
| Weight | 9.50 lbs |
| Replacement Model | 194R-J100-1753 |
| Status | Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Part Number 194R-NJ100P3
Shelf C-12
Model 194R-NJ100P3
MPN 194R-NJ100P3
Type Disconnect
