Product Description

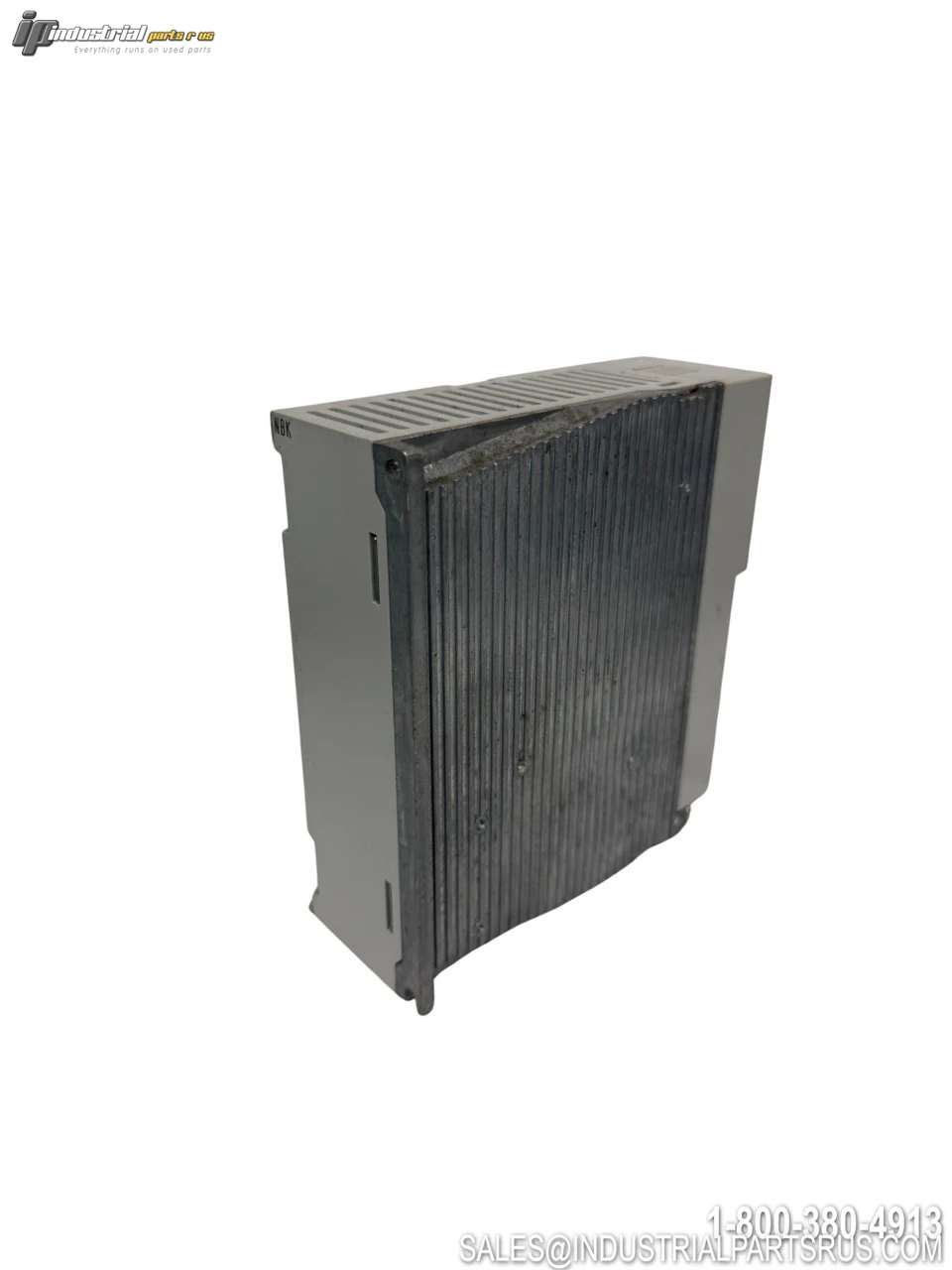

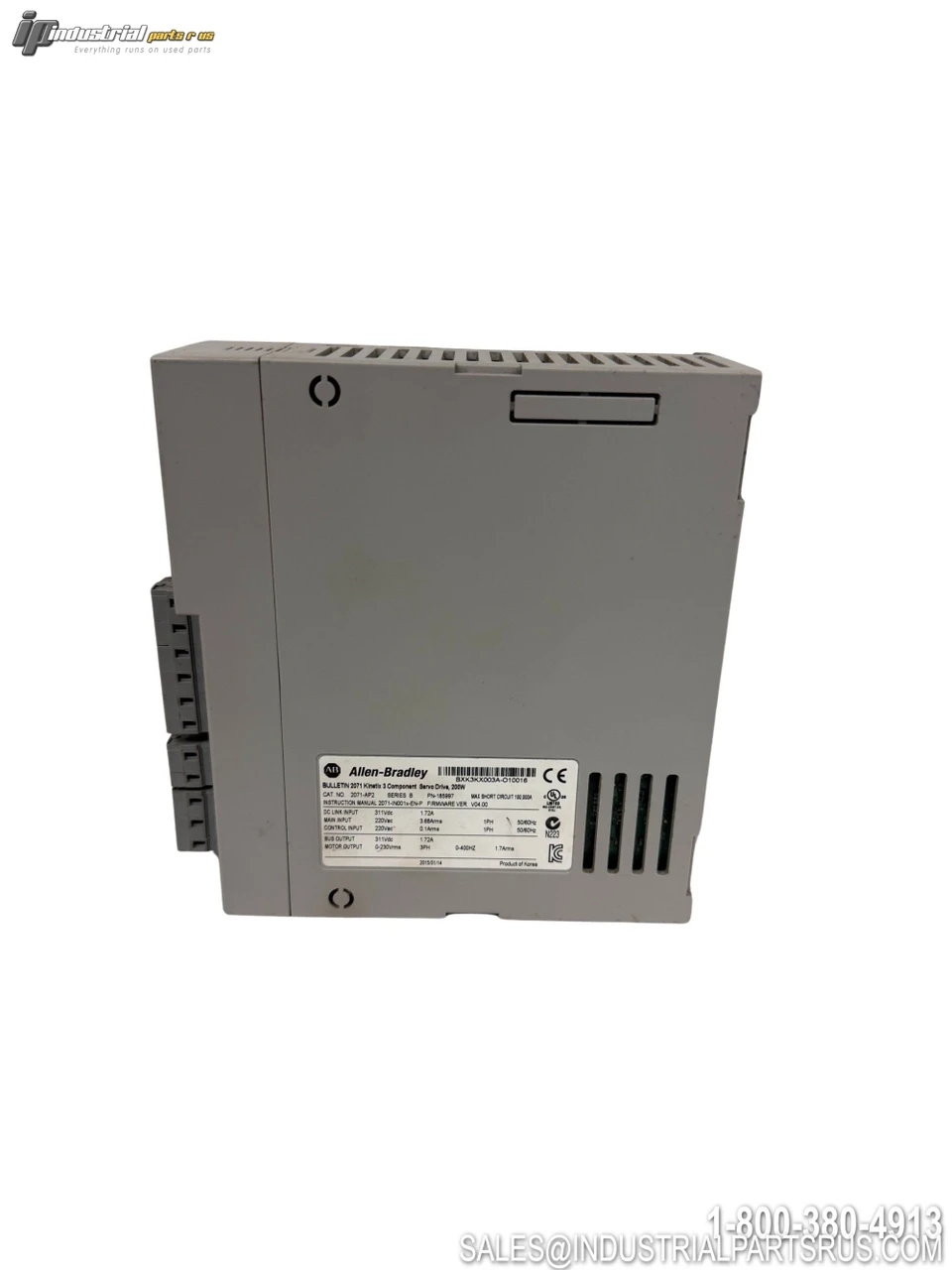

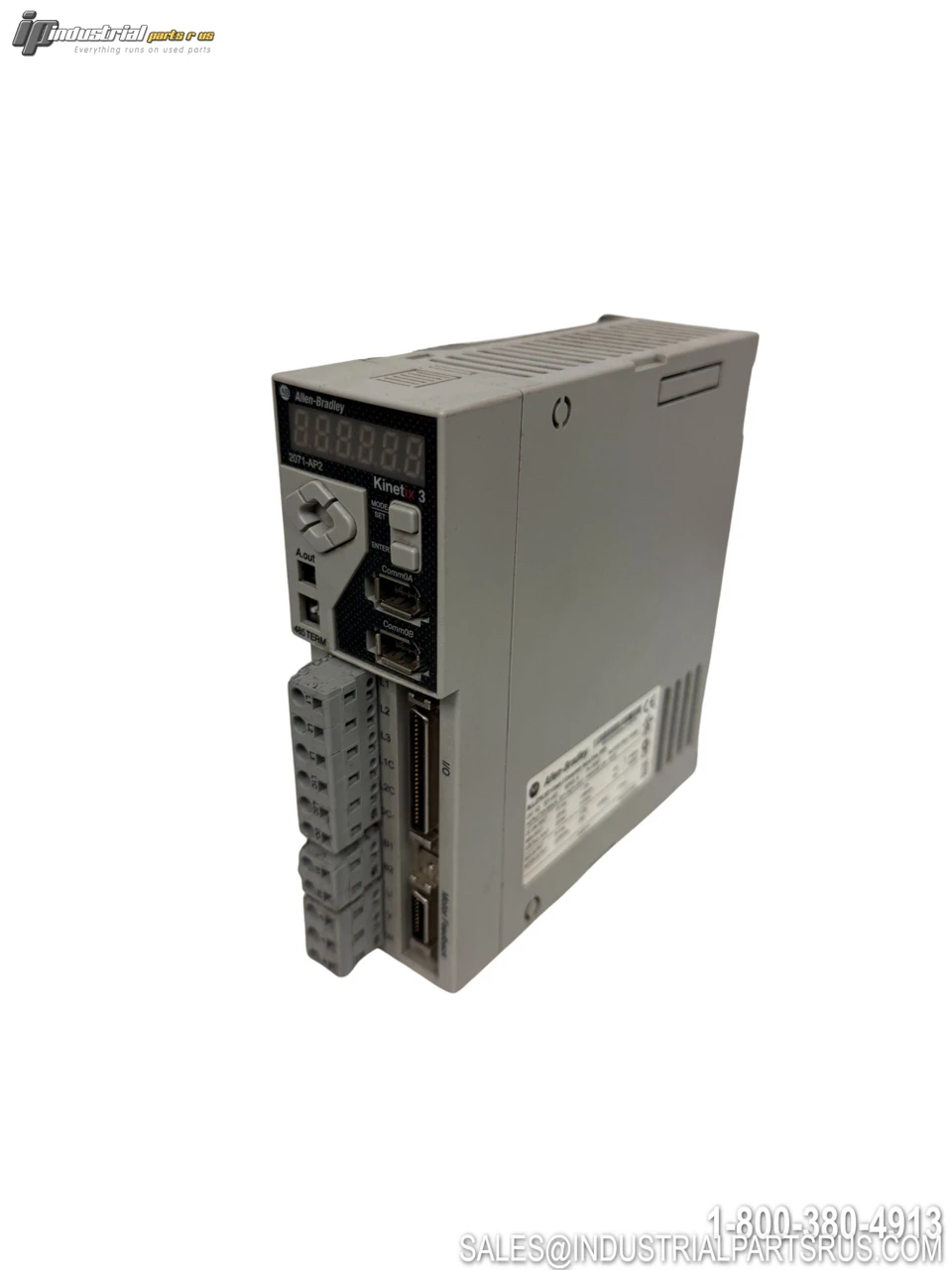

The Allen-Bradley 2071-AP2 is a Kinetix 3 Component Servo Drive designed for single-axis motion control applications. It operates on 200–240V AC single-phase input power and delivers a rated output of 200 Watts with 1.7A continuous RMS output current, making it well-suited for compact, low-axis-count automation systems. This drive is compatible with TL-Series and TLY-Series rotary motors and integrates with MicroLogix and Micro800 controller platforms via RS-232 and RS-485 serial communication (Modbus RTU). It supports up to 64 indexing points and includes an external temperature sensor input for enhanced motor protection. Note: This product reached End-of-Life status on 2022-12-31; the functional replacement is catalog number 2198-E1004-ERS.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 2071-AP2 |
| Platform / Family | Kinetix 3 (Bulletin 2071) |
| Series (Hardware Revision) | A |
| Product Description | Kinetix 3 Single Axis Component Servo Drive |
| Input Voltage | 200–240V AC RMS |
| Input Phase | Single-Phase (1Ø) |
| Rated Output Power | 200 Watts |
| Continuous Output Current (RMS) | 1.7 A RMS |
| Peak Output Current (0-pk) | 2.40 A (0-pk) |
| Input Current (RMS) | 3.68 A RMS |
| Built-In Shunt Resistor | No |
| Wire Gauge | 14 AWG |
| Communication Ports | 2 × Serial Interface (Comm 0A, Comm 0B) |
| Communication Standard | RS-232 / RS-485 (Modbus RTU) |

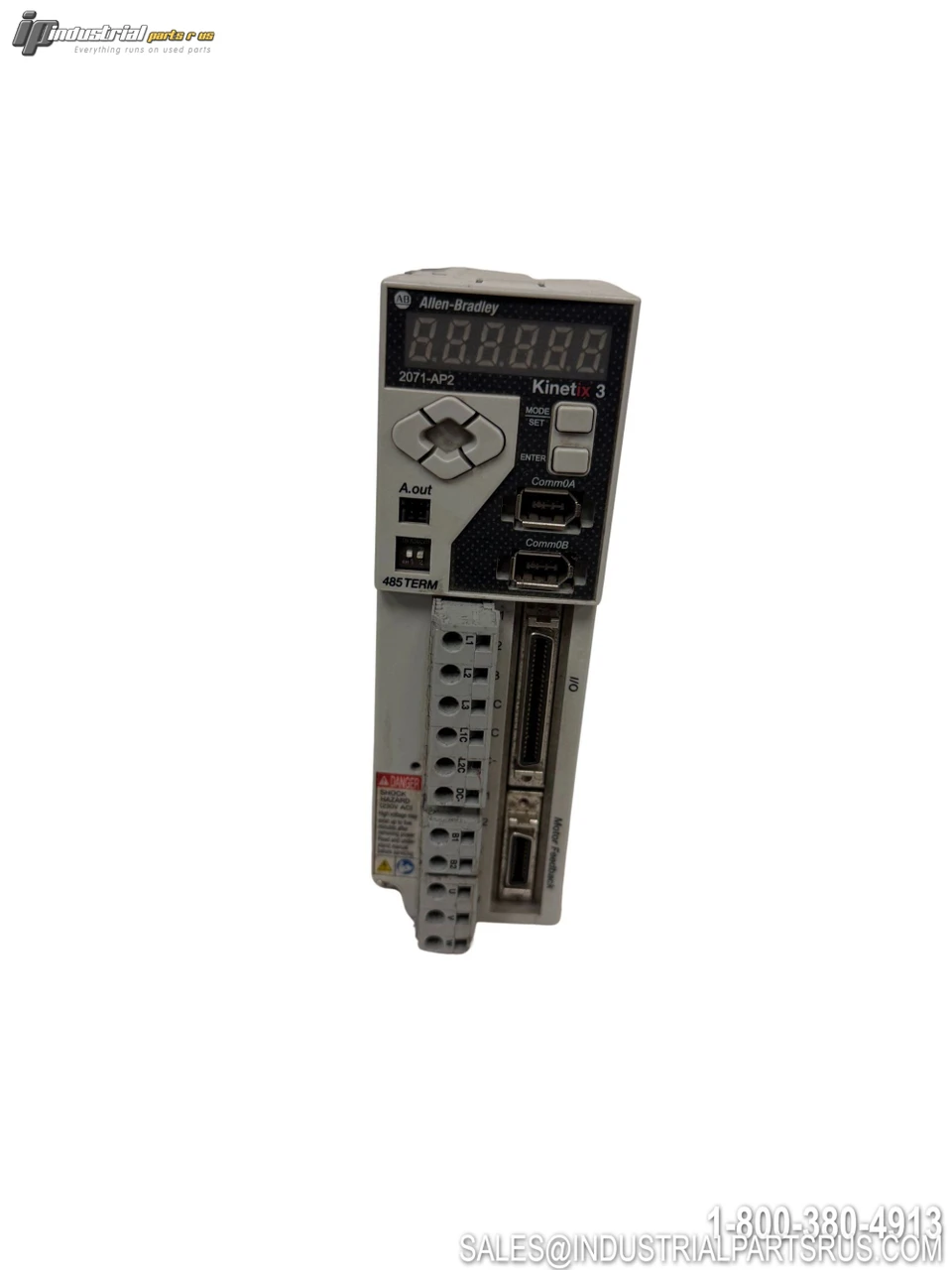

| User Interface | 7-segment status indicator, power indicator, arrow keys, Enter key, Mode/Set key |
| Compatible Motor Series | TL-Series, TLY-Series (Bulletin TL / TLY) Rotary Motors |
| Compatible Controllers | MicroLogix, Micro800 (Micro810, Micro830, Micro850) |
| Indexing Points | 64 |
| Motor Overload Protection | Solid-state, UL 508C compliant |
| Mounting Orientation | Upright (vertical) panel mount |
| Mounting Hardware | M4 × 10 bolts |
| Lifecycle Status | End of Life (discontinued 2022-12-31) |
| Functional Replacement | 2198-E1004-ERS |
| Manufacturer | Rockwell Automation / Allen-Bradley |
