Product Description

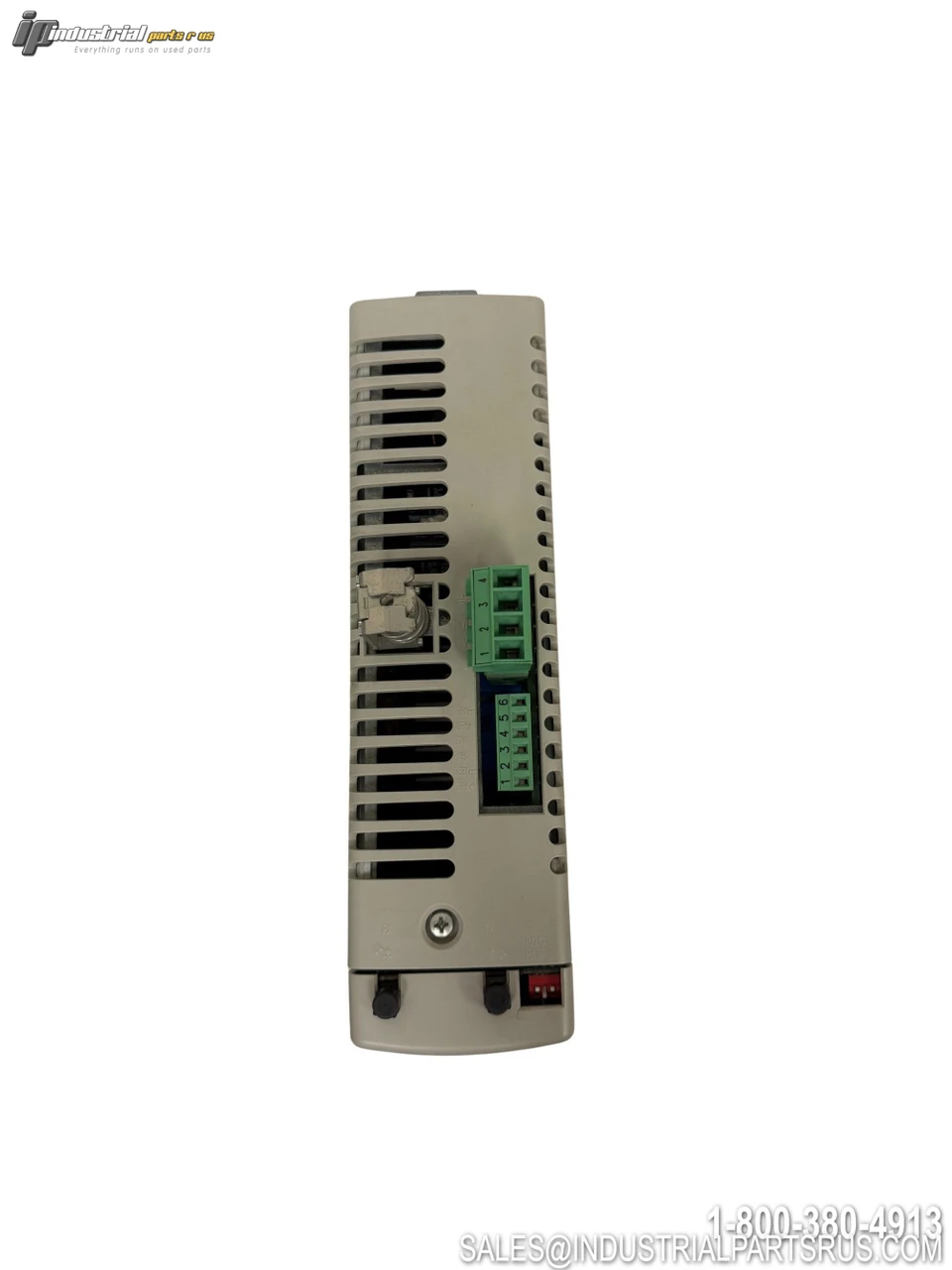

The Allen-Bradley 2094-BM01 is a Kinetix 6000 Axis Module (AM) designed for multi-axis servo motion control applications on the Logix platform. It operates on a 360/480V nominal (324–528V rms) three-phase input and delivers 3.9 kW of rated output power with a continuous output current of 6.1 A and an 8.6 A inverter rating. This is the base variant of the BM01 family — it does not include the Safe Torque-Off (STO) safety feature, distinguishing it from the 2094-BM01-S and 2094-BM01-M variants. The module mounts directly to a Kinetix 6000 power rail alongside the Integrated Axis Module (IAM) and connects to servo motors via feedback and I/O cables.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 2094-BM01 |
| Platform / Product Family | Kinetix 6000 |
| Module Type | Axis Module (AM) |
| Nominal Input Voltage | 360 / 480 VAC (3-Phase) |
| Input Voltage Range | 324–528V rms, 3-Phase |
| Rated Power Output | 3.9 kW |
| Inverter Current Rating | 8.6 A (rms) |
| Continuous Output Current | 6.1 A |
| Peak Output Current (Series A) | 9.2 A (rms) / 12.9 A (0-pk) |
| Efficiency | 98% |
| Short-Circuit Current Rating | 200,000 A (rms) Symmetrical |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Bandwidth | 1300 Hz |
| PWM Frequency | 8 kHz |
| Safe Torque-Off (STO) | No (not included) |
| Series Available | A, B, C |
| Voltage Class | 400V Class |
| Compliance / Certifications | UL, CUL, C-TICK, CCC, KC |
| Manufacturer Status | Discontinued (09/30/2009) |
| Manufacturer | Rockwell Automation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 8.6 A
Manufacturer Allen-Bradley
Part Number 2094-BM01
Shelf E-15
Model 2094-BM01
MPN 2094-BM01
Type Servo Drive
