Product Description

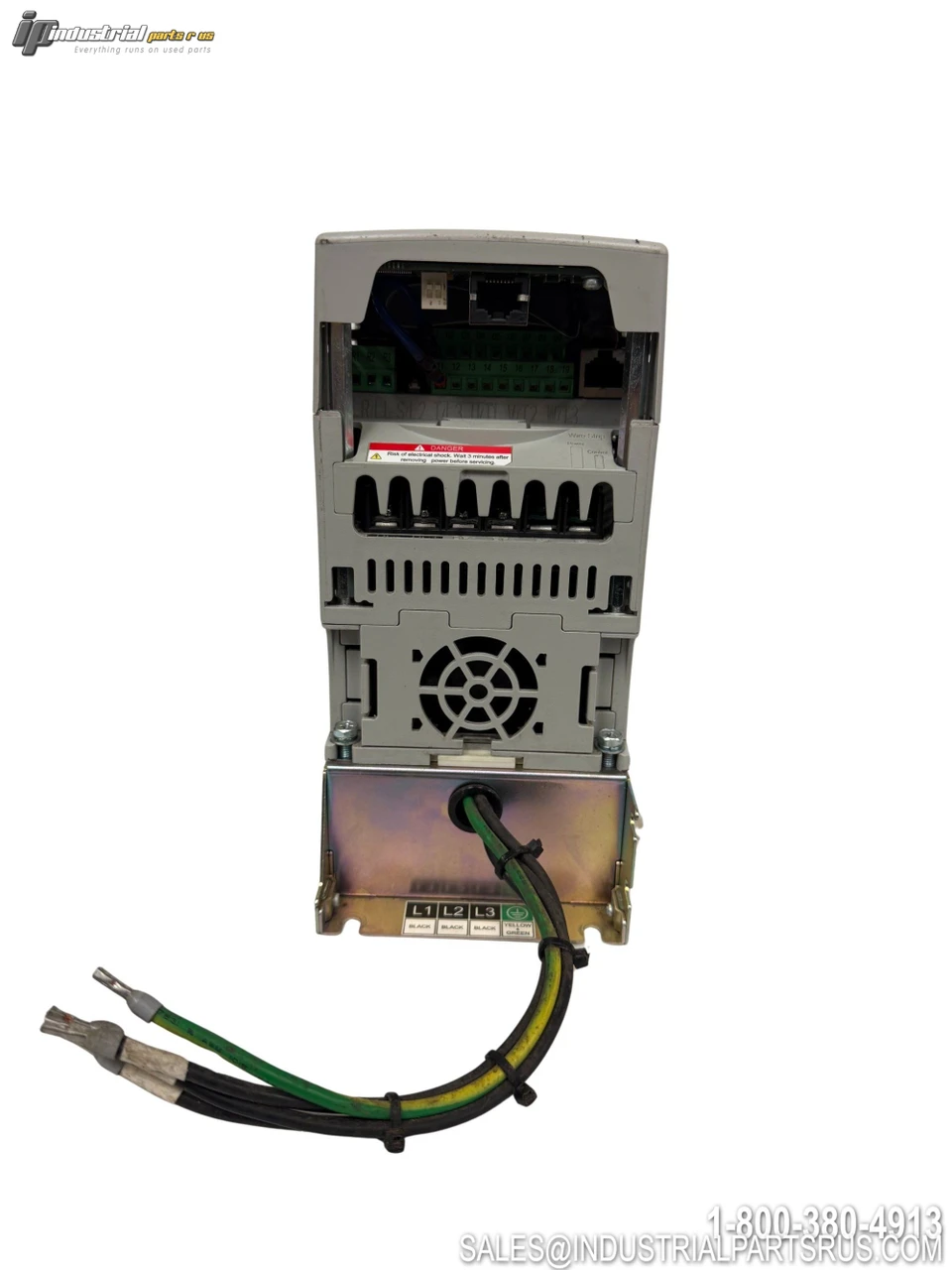

The Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 adjustable frequency AC drive designed for precise motor speed control in a compact, panel-mount form factor. It accepts 380–480V AC three-phase input and delivers up to 1.5 kW (2 HP) of output power at 4 amps, making it suitable for machine tools, fans, pumps, conveyors, and material handling applications. The drive features sensorless vector control, an integrated LED display with digital keypad, and built-in RS-485 communications with optional expansion to EtherNet/IP, DeviceNet, and ControlNet networks.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 22B-D4P0N104 |
| Platform / Series | PowerFlex 40 |
| Product Type | Variable Frequency Drive (VFD / AC Drive) |
| Input Voltage | 380–480V AC (Nominal 480V AC) |
| Input Voltage Range | 342–528V AC |
| Input Phase | 3-Phase |
| Input Current | 5.7 Amps |
| Output Voltage | 0–460V AC (3-Phase) |
| Output Current (Rated) | 4.0 Amps |
| Output Power | 1.5 kW (2 HP) |
| Output Frequency | 0–400 Hz (Programmable) |
| Frame Size | B |
| Enclosure Type | IP20 / NEMA/UL Type Open |
| Mounting Type | Panel Mount |
| Human Interface Module (HIM) | Fixed Keypad – LED Display, Digital Keypad |
| Communication (Built-In) | RS-485 (DSI) |
| Optional Communications | EtherNet/IP, DeviceNet, ControlNet |
| EMC Filter | No CE Compliant Filter (Not Filtered) |
| Brake | Standard Brake (Internal Brake IGBT) |
| Control Mode | Sensorless Vector Control |
| Analog Inputs | 2 Channels (0–10V or 4–20mA) |
| Analog Output | 0–10V or 4–20mA |
| Efficiency | 97.5% (Typical) |
| Power Dissipation (IP20) | 70 Watts |
| Recommended Input Fuse | 10A |
| Recommended Motor Protector | 140M-C2E-B63 |
| Recommended Contactor | 100-C09 |
| Replacement Product | 25B-D4P0N104 (PowerFlex 525) |
| Manufacturer | Rockwell Automation / Allen-Bradley |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type IP20 / NEMA Type Open
Part Number 22B-D4P0N104
Shelf E-19
Model 22B-D4P0N104
MPN 22B-D4P0N104
Type VFD
