Product Description

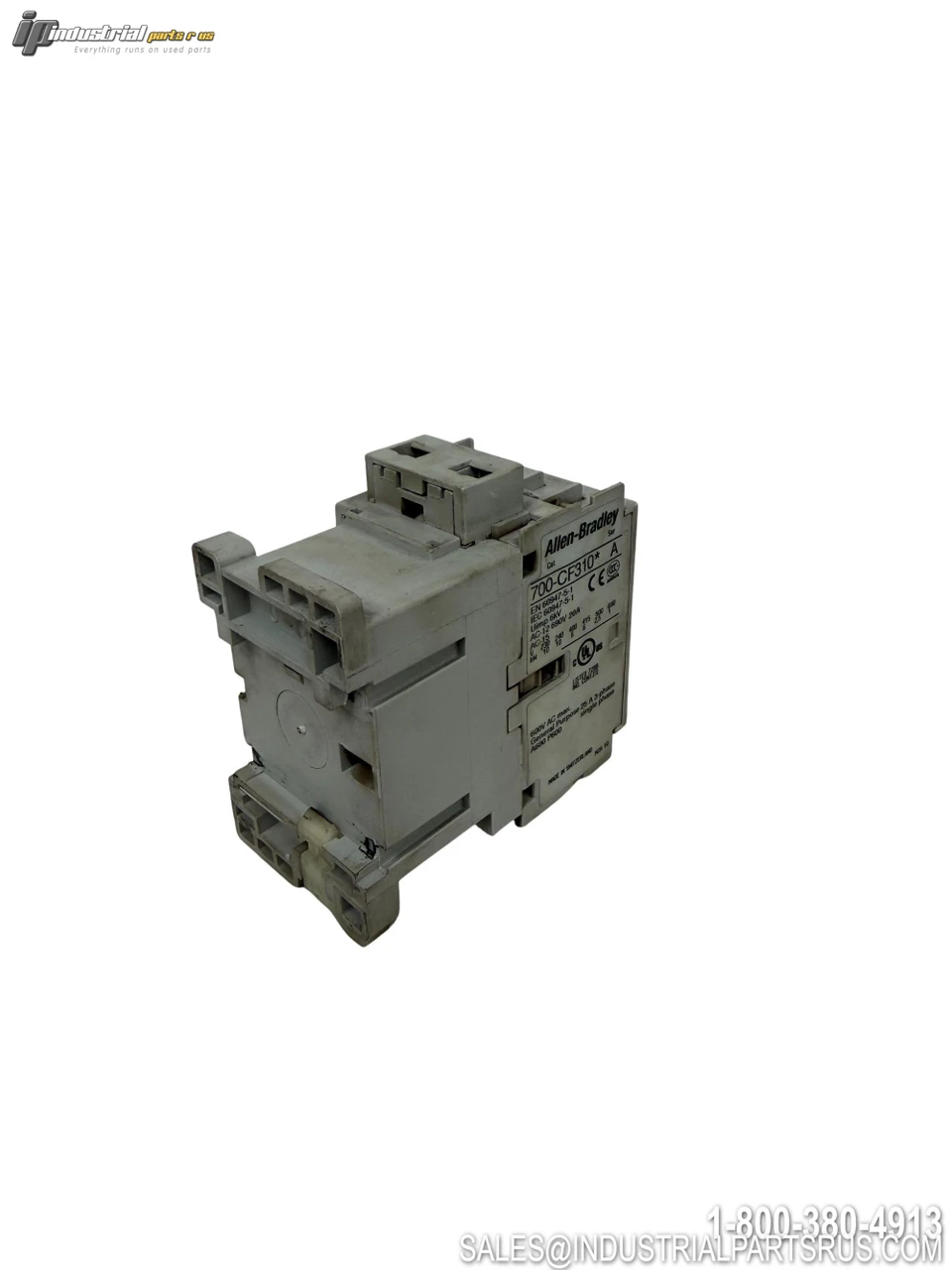

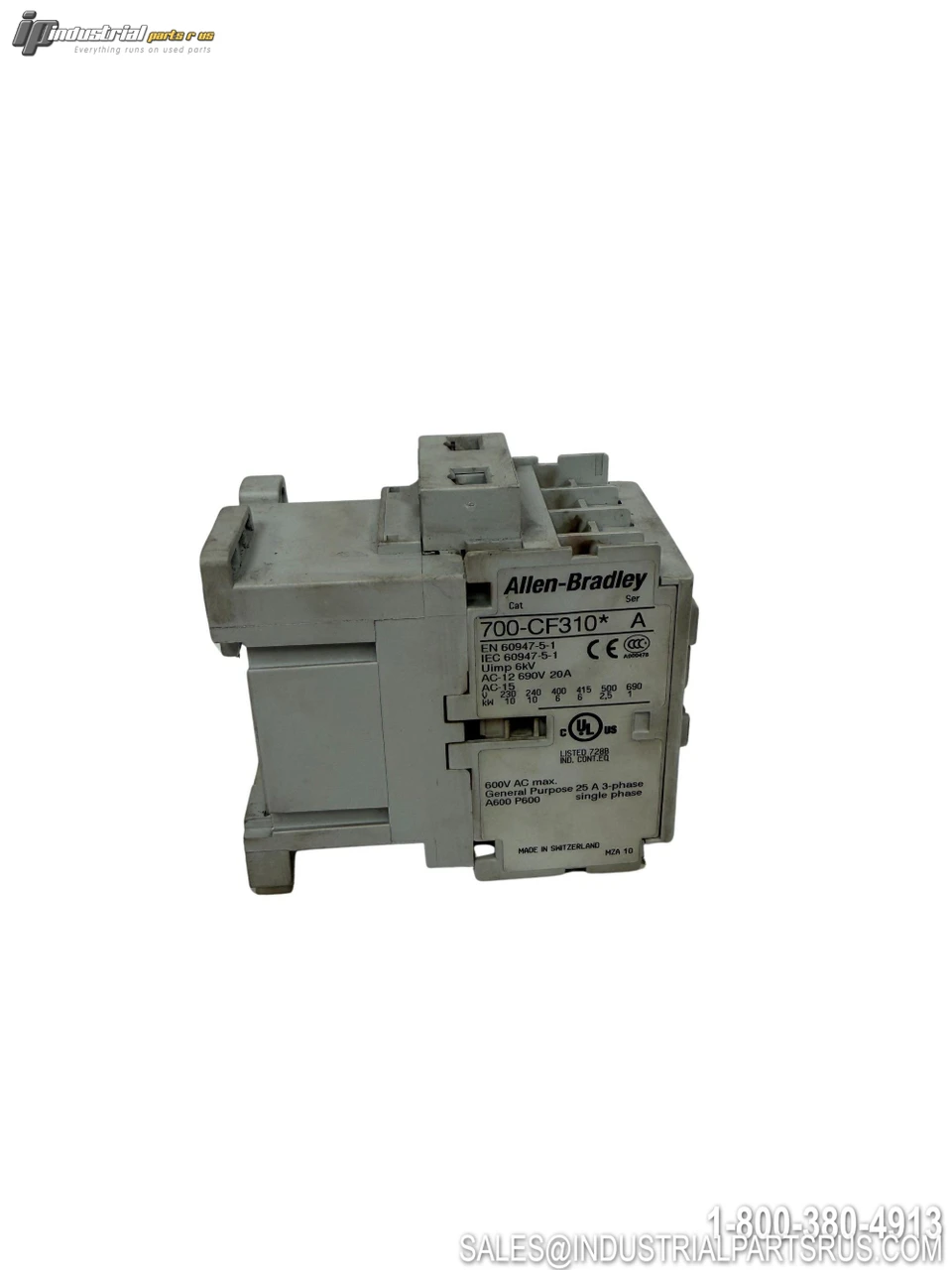

The Allen-Bradley 700-CF310* is a Bulletin 700-CF IEC industrial control relay designed for industrial control, switching, and automation applications. This unit features a 4-pole configuration with 3 normally open (NO) and 1 normally closed (NC) contacts.
The complete catalog number includes a coil-voltage suffix in place of the asterisk (*). The specific coil voltage of this unit should be verified from the coil markings before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 700-CF310* |
| Series | A |
| Product Type | IEC Industrial Control Relay |
| Bulletin | 700-CF |
| Number of Poles | 4 |
| Contact Configuration | 3 N.O. / 1 N.C. |
| AC-12 Rating | 690V / 20A |
| AC-15 Rating | 10A @ 230V; 10A @ 240V; 6A @ 400V; 6A @ 415V; 2.5A @ 500V; 1A @ 690V |
| Maximum UL Voltage | 600 VAC |
| General Purpose Rating | 25A, 3-Phase |
| Rated Impulse Withstand Voltage | 6 kV |
| Standard | IEC / EN 60947-5-1 |
| Coil / Control Voltage | Not Identified - Verify Coil Markings |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley |
Important: The asterisk (*) in the catalog number represents additional catalog/coil information. The coil/control voltage is not visible in the provided markings and should be verified by the buyer for their application.
Please review all photos carefully for the exact configuration, markings, and condition of the item being sold.
We warranty all items for 30 days from date of purchase.
