Product Description

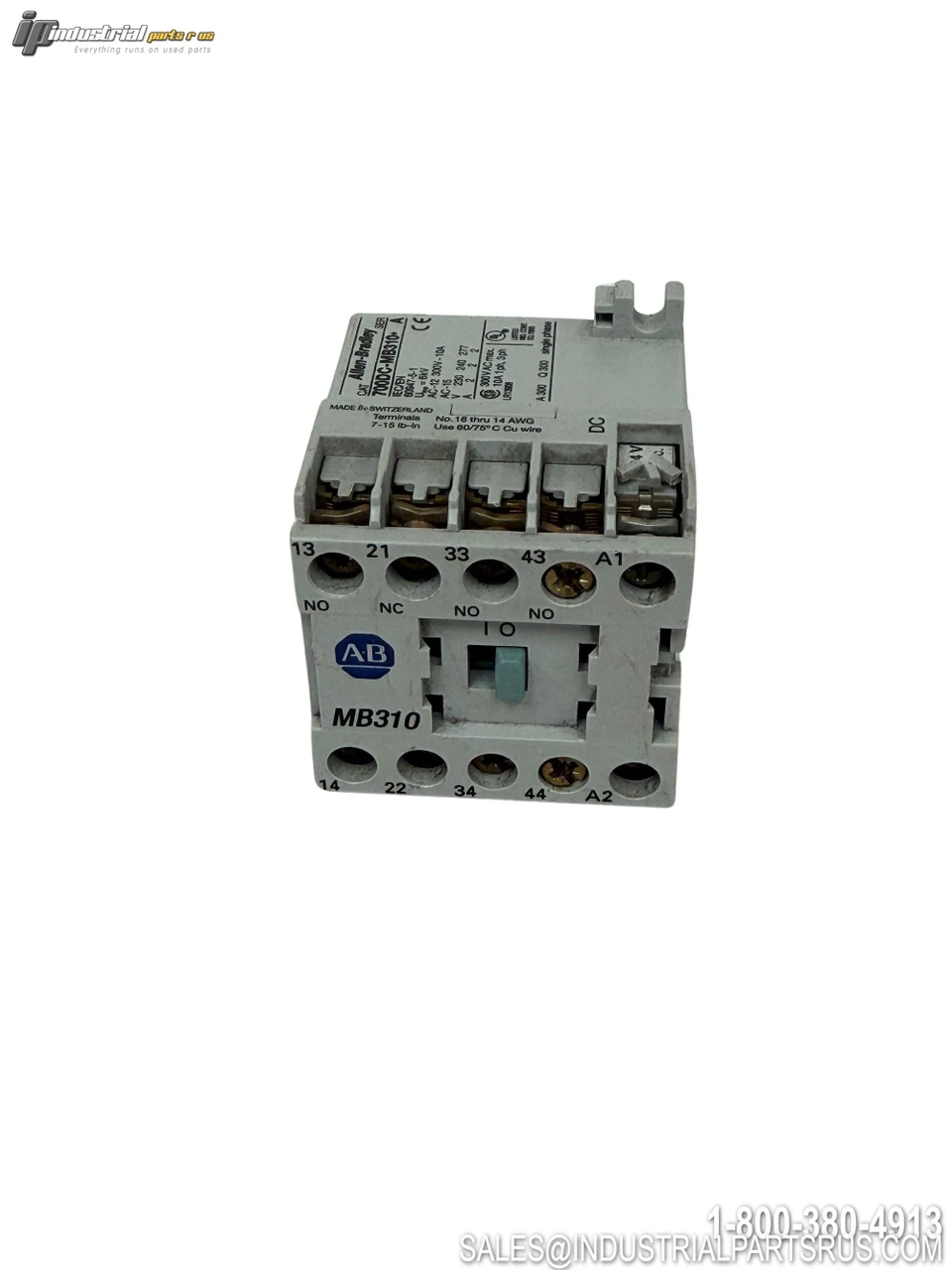

The Allen-Bradley 700DC-MB310 is an IEC miniature DC control relay from the Bulletin 700-MB series, designed for reliable switching in industrial control applications. It features bifurcated "H-style" Silver Nickel (AgNi) contacts that increase switching reliability at lower power levels, and is rated for 300VAC at 10A with a contact configuration of 3 Normally Open (N.O.) and 1 Normally Closed (N.C.). This relay uses a DC coil (coil voltage specified by suffix — e.g., Z24=24VDC, Z12=12VDC, Z48=48VDC) and includes positively guided contacts across all 4 main poles per IEC 60947-5-1 Annex L, meeting IEC/EN 60947-5-1 and VDE 0660 standards. Suitable for industrial automation, machine safety circuits, PLC output control, and motor starter auxiliary control.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 700DC-MB310* |
| Series | A |
| Product Type | Industrial Control Relay |
| Contact Configuration | 3 N.O. / 1 N.C. |
| Number of Contacts | 4 |
| Coil Type | DC |
| Coil Voltage | Verify Coil Markings |
| AC-12 Rating | 300V / 10A |
| AC-15 Rating | 2A @ 230V; 2A @ 240V; 2A @ 277V |
| General Purpose Rating | 300V AC Max., 10A, 1-Phase / 3-Phase |
| Pilot Duty Rating | A300 / Q300 |
| Rated Impulse Withstand Voltage | 6 kV |
| Terminal Type | Screw Terminals |
| Wire Range | No. 18 through 14 AWG |
| Standard | IEC/EN 60947-5-1 |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley / Rockwell Automation |
Note: The asterisk (*) in the catalog number represents additional coil-voltage information. The specific DC coil voltage is not clearly identified in the provided photos and should be verified from the unit's coil markings prior to installation.
