Product Description

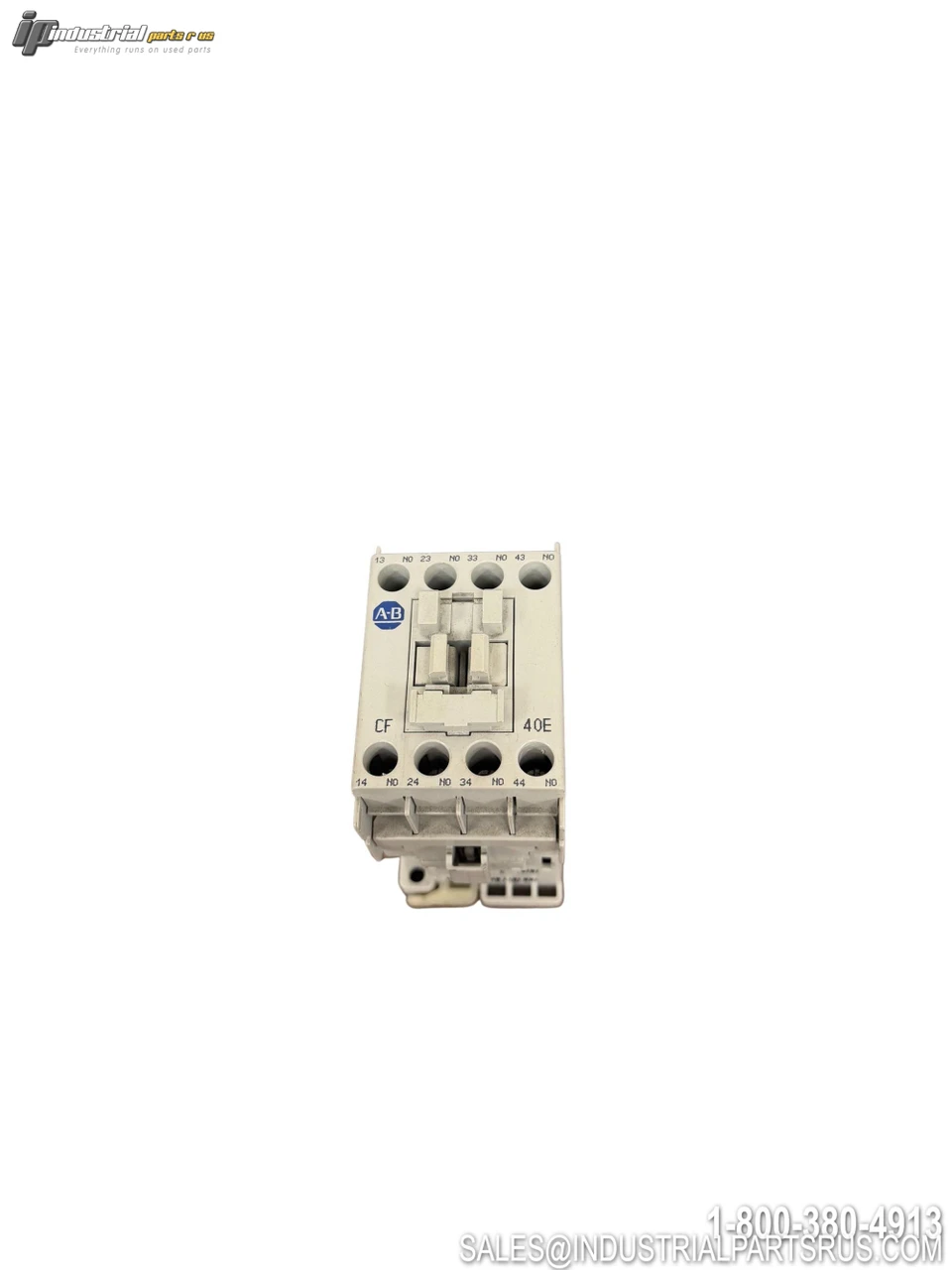

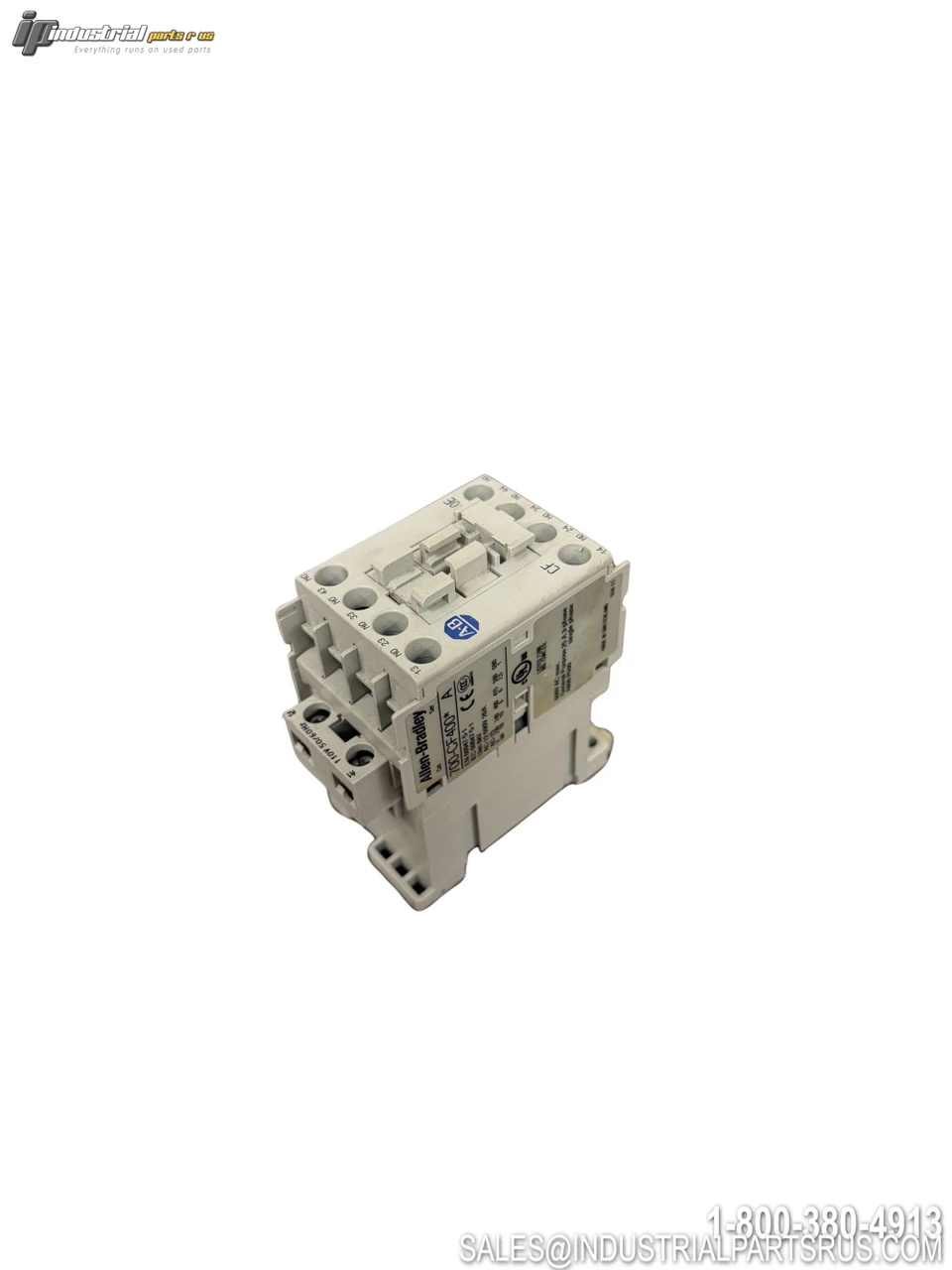

The Allen-Bradley 700-CF400* is a Bulletin 700-CF industrial control relay designed for switching and auxiliary control applications. This unit features four normally open (N.O.) contacts, identified by terminals 13-14, 23-24, 33-34, and 43-44.
This unit is Series A. The complete catalog number includes additional coil information represented by the asterisk (*) in 700-CF400*. The specific coil/control voltage is not clearly identified in the provided photos and should be verified from the coil markings before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 700-CF400* |
| Series | A |
| Product Type | Industrial Control Relay |
| Number of Contacts | 4 |
| Contact Configuration | 4 N.O. (Normally Open) |
| Terminal Identification | 13-14, 23-24, 33-34, 43-44 |
| Identification Marking | 40E |
| AC-12 Rating | 690V / 20A |
| AC-15 Rating | 10A @ 230/240V; 6A @ 400/415V; 2.5A @ 500V; 1A @ 690V |
| Maximum UL Voltage | 600 VAC |
| General Purpose Rating | 25A, 3-Phase |
| Pilot Duty Rating | A600 / P600 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Coil / Control Voltage | Not Identified - Verify Coil Markings |
| Standards | EN 60947-5-1 / IEC 60947-5-1 |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley / Rockwell Automation |
Important: The asterisk (*) in the catalog number represents additional catalog/coil information. The specific coil/control voltage is not clearly visible in the provided photos and should be verified from the unit's coil markings before installation.
