Product Description

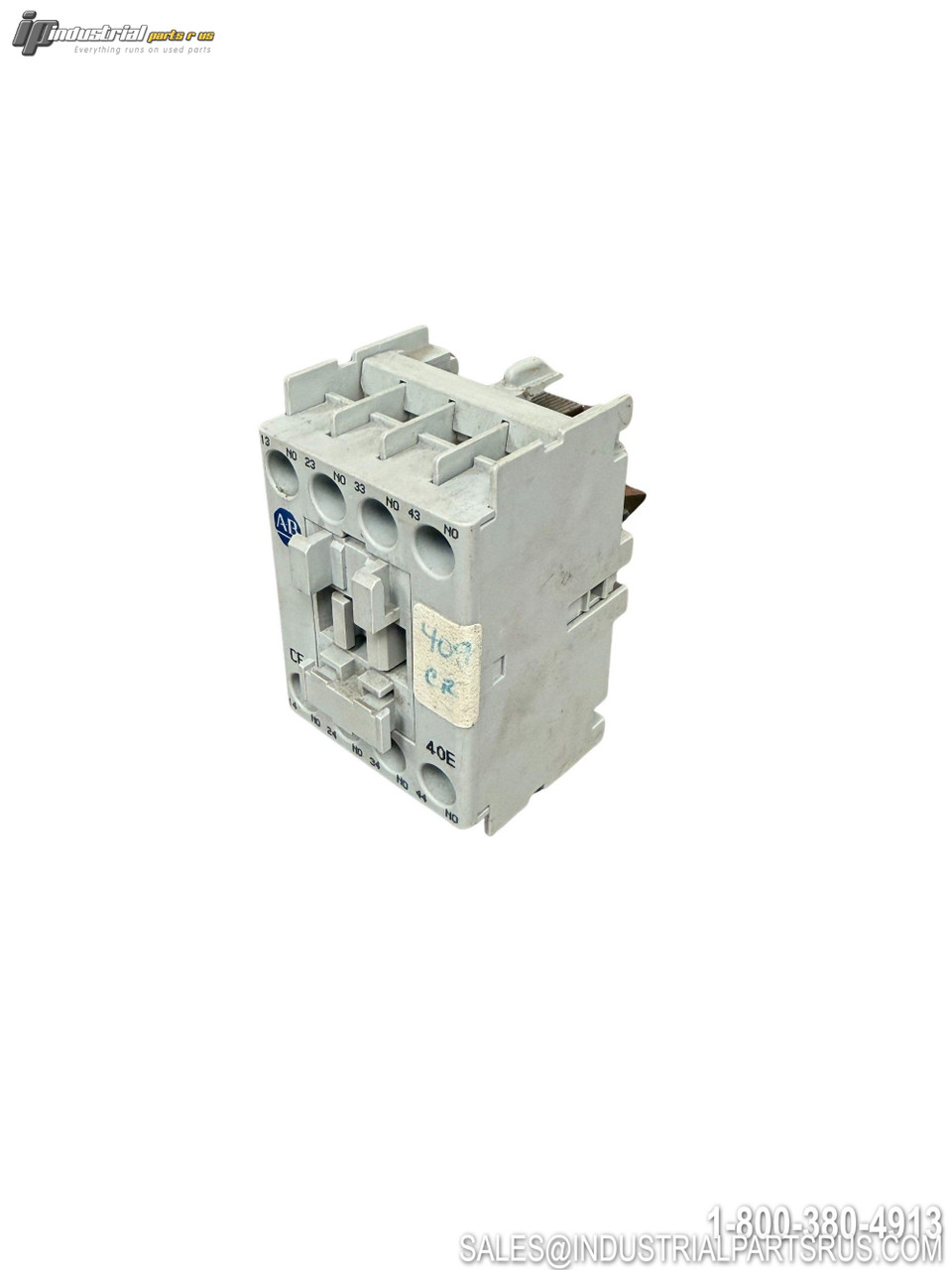

The Allen-Bradley 700-CF400D* is a Bulletin 700-CF IEC industrial control relay designed for industrial control, switching, interlocking, and auxiliary control applications. This Series A unit features four normally open (4 N.O.) contacts with terminals 13-14, 23-24, 33-34, and 43-44.
The complete catalog number includes additional coil information represented by the asterisk (*). The specific coil/control voltage is not clearly identified in the provided markings and should be verified from the coil markings before installation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Catalog Number | 700-CF400D* |
| Series | A |
| Product Type | IEC Industrial Control Relay |
| Bulletin | 700-CF |
| Contact Configuration | 4 Normally Open (4 N.O.) |
| Number of Contacts | 4 |
| Contact Terminals | 13-14, 23-24, 33-34, 43-44 |
| Coil / Control Voltage | Not Identified - Verify Coil Markings |
| AC-1 Rating | 690V / 25A |
| AC-15 Rating @ 230V | 10A |
| AC-15 Rating @ 240V | 10A |
| AC-15 Rating @ 400V | 5A |
| AC-15 Rating @ 415V | 5A |
| AC-15 Rating @ 500V | 2.5A |
| AC-15 Rating @ 690V | 1A |
| Maximum UL Voltage | 600 VAC |
| General Purpose Rating | 25A, 3-Phase / Single-Phase |
| Pilot Duty | A600 / P600 |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Connection Type | Screw Terminals |
| Standard | IEC / EN 60947 |
| Country of Manufacture | Switzerland |
| Manufacturer | Allen-Bradley |
Important: The catalog number on this unit is marked 700-CF400D*. The asterisk represents additional catalog/coil information. The specific coil/control voltage is not clearly identified in the provided photos and should be verified before installation.
We warranty all items for 30 days from date of purchase.
