Product Description

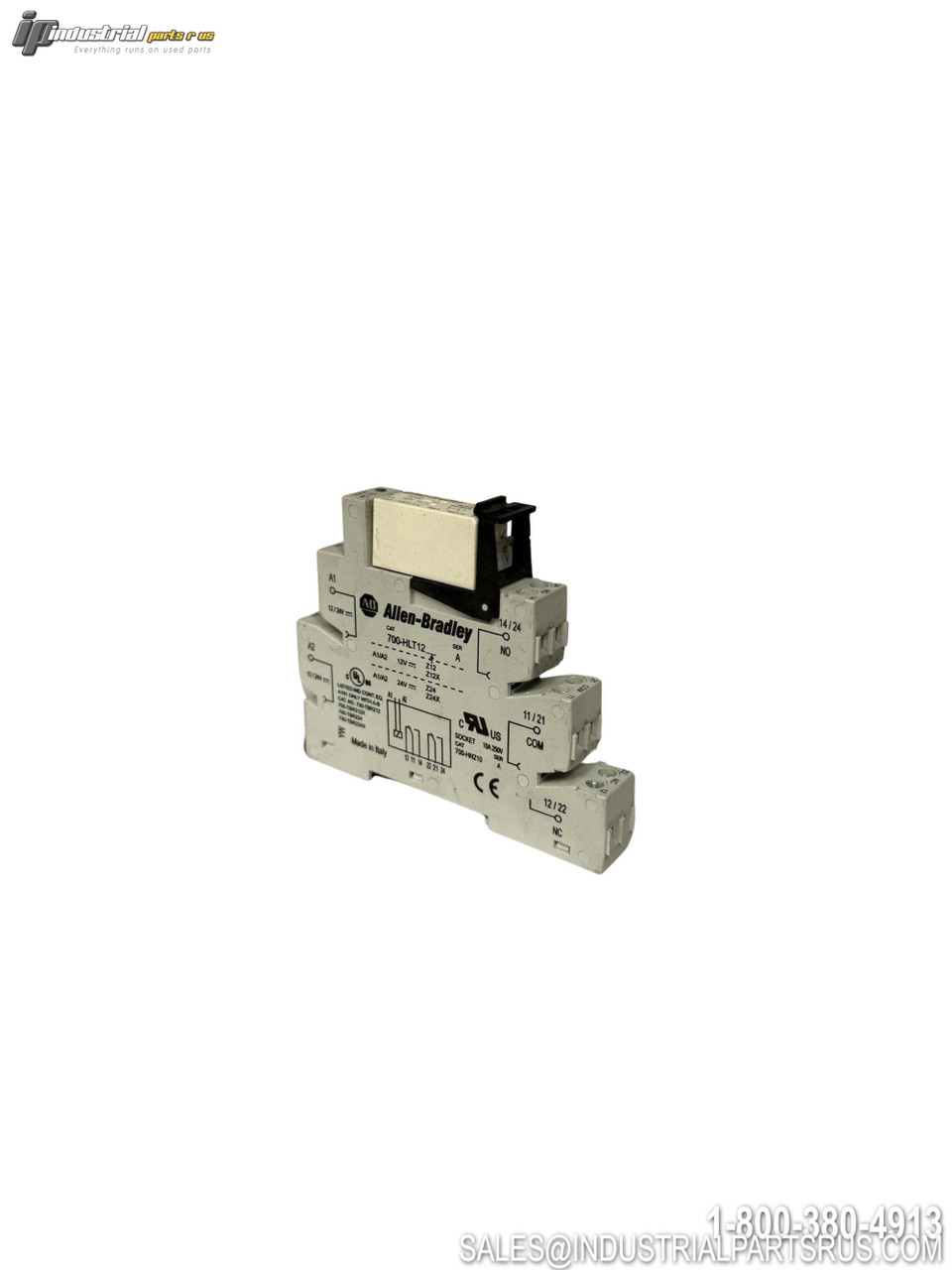

The Allen-Bradley 700-HLT12 is a Terminal Block Relay Output Module designed for industrial automation and control applications. This module provides the contact portion of the 700-HL series relay system and requires a separate coil module for complete operation. It features DPDT (Double Pole, Double Throw) contact configuration with screw terminal connections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 700-HLT12 |
| Product Type | Terminal Block Relay Output Module |
| Contact Configuration | DPDT (2 C/O) |
| Contact Type | Standard Silver Contacts |
| Contact Rating | 10A @ 250V |
| Terminal Type | Screw Terminals |
| Construction | Touch Safe Terminal Construction |
| Width | 6.2 mm per pole |
| Series | 700-HL |
| Application | Interposing/Isolation |
| Coil Requirements | Requires separate coil module |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style Terminal Block
Current Rating 10 A
Application Interposing/Isolation
Manufacturer Allen-Bradley
Part Number 700-HLT12
Shelf F-3 Tub 9
Model 700-HLT12
Coil Voltage 110-125 V
MPN 700-HLT12
Type Control Relay
