Product Description
The Allen-Bradley 700-HA32A2 is a Bulletin 700-HA General Purpose Tube Base (ice cube) relay featuring pin-style terminals and bifurcated AgNi contacts. It is a 2-pole double-pole double-throw (DPDT) relay with a 10-amp contact rating and a 240V AC 50/60 Hz coil, designed for general-purpose switching, interposing, and PLC output isolation in industrial control applications including motor control centers, machine tool, pulp and paper, and transportation OEM. The relay plugs into an octal 8-pin socket (sold separately, e.g., 700-HN100 or 700-HN125), includes a transparent dust cover, and features a standard mechanical ON/OFF flag indicator.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Relay Catalog Number | 700-HA32A2 |
| Relay Series | D |
| Product Type | General Purpose Control Relay |
| Coil Voltage | 240V AC |
| Contact Configuration | DPDT / 2 Changeover Contacts |
| Number of Poles | 2 |
| Contact Rating | Ith 10A |
| Relay Mounting | Plug-In Socket |
| Relay Cover | Clear Protective Cover |
| Socket Catalog Number | 700-HN204 |
| Socket Series | A |
| Socket Rating | 10A / 300V |
| Accessory Module | 700-AW3R |
| Accessory Module Series | A |
| Accessory Module Voltage | 110–240V AC |
| Manufacturer | Allen-Bradley / Rockwell Automation |

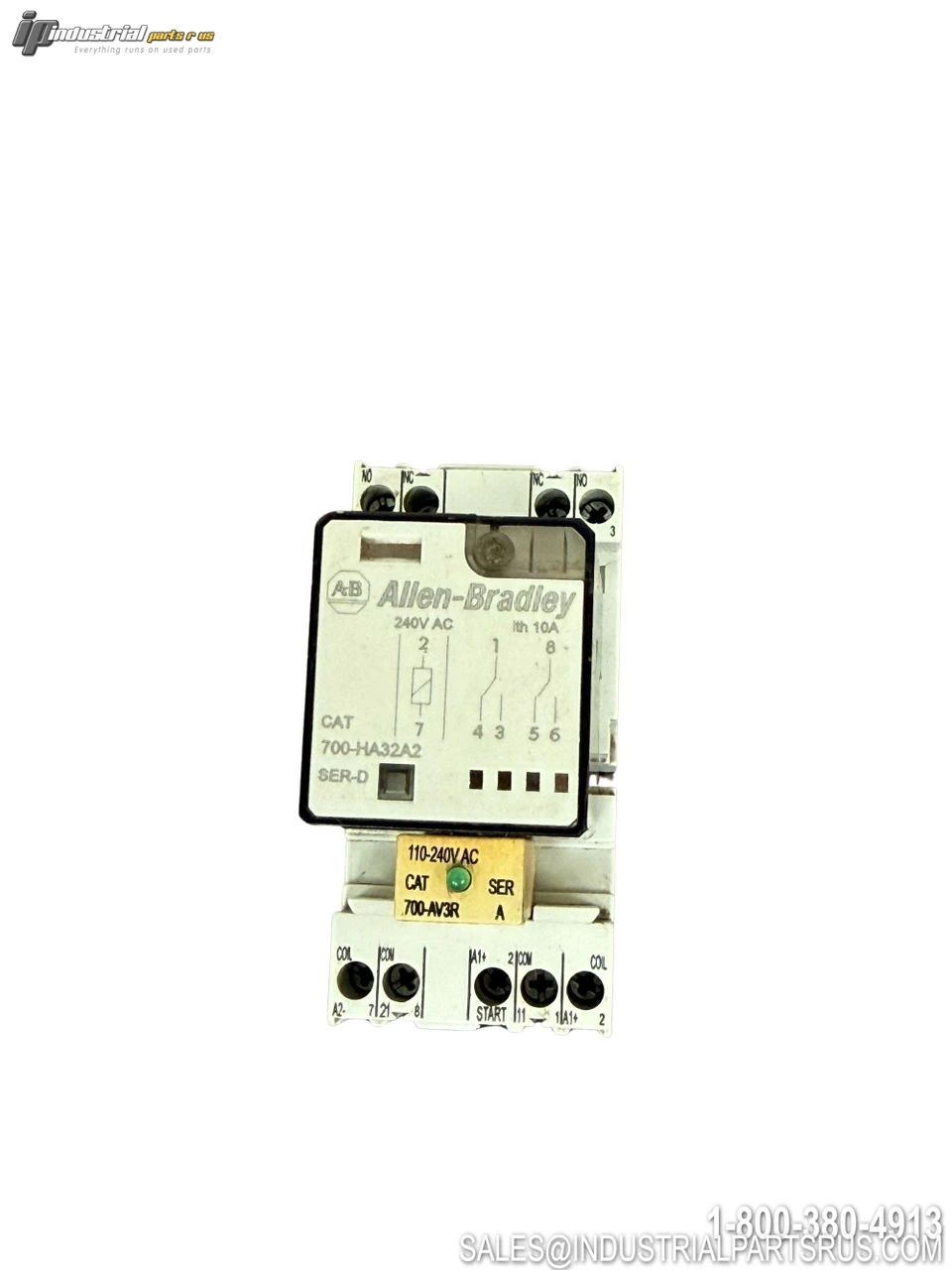

Included: Allen-Bradley 700-HA32A2 relay, 700-HN204 socket, and 700-AW3R module as pictured.
We warranty all items for 30 days from date of purchase.
