Product Description

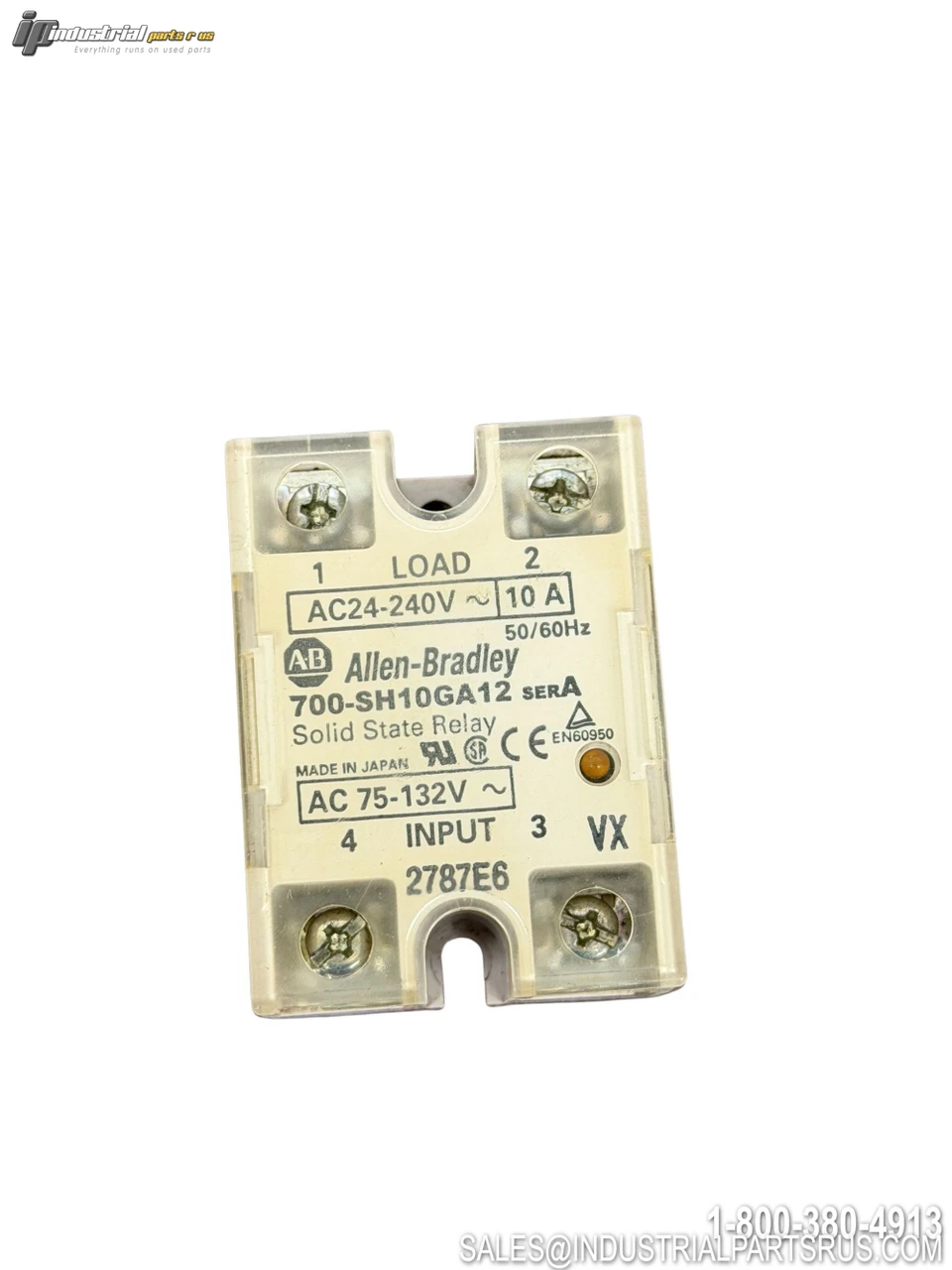

The Allen-Bradley 700-SH10GA12 is a Bulletin 700-SH Hockey Puck style Solid State Relay (SSR) rated for 10 amps of continuous load output current at 24–240V AC, with a 100–120V AC control input voltage range. It uses photocoupler (optocoupler) input-to-output isolation and incorporates a zero cross switching function to minimize electrical noise and inrush current when switching AC loads. Key built-in features include an LED status indicator for input/logic ON/OFF monitoring, a varistor for surge protection, and a protective finger-safe cover meeting the VDE 106 standard.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 700-SH10GA12 |
| Series | Series A |
| Product Type | Solid State Relay (SSR) |
| Load Voltage | 24–240VAC |
| Load Current | 10A |
| Load Frequency | 50/60Hz |
| Control Input Voltage | 75–132VAC |
| Load Terminals | 1 & 2 |
| Input Terminals | 3 & 4 |
| Terminal Type | Screw Terminal |
| Indicator | Status Indicator |
| Mounting | Panel / Surface Mount |
| Country of Manufacture | Japan |
| Markings | UL, CSA, CE, EN60950 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type AC
Manufacturer Allen-Bradley
Part Number 700-SH10GA12
Shelf C-11 Tub 1
Model 700-SH10GA12
MPN 700-SH10GA12
Type Solid State Relay
