Product Description

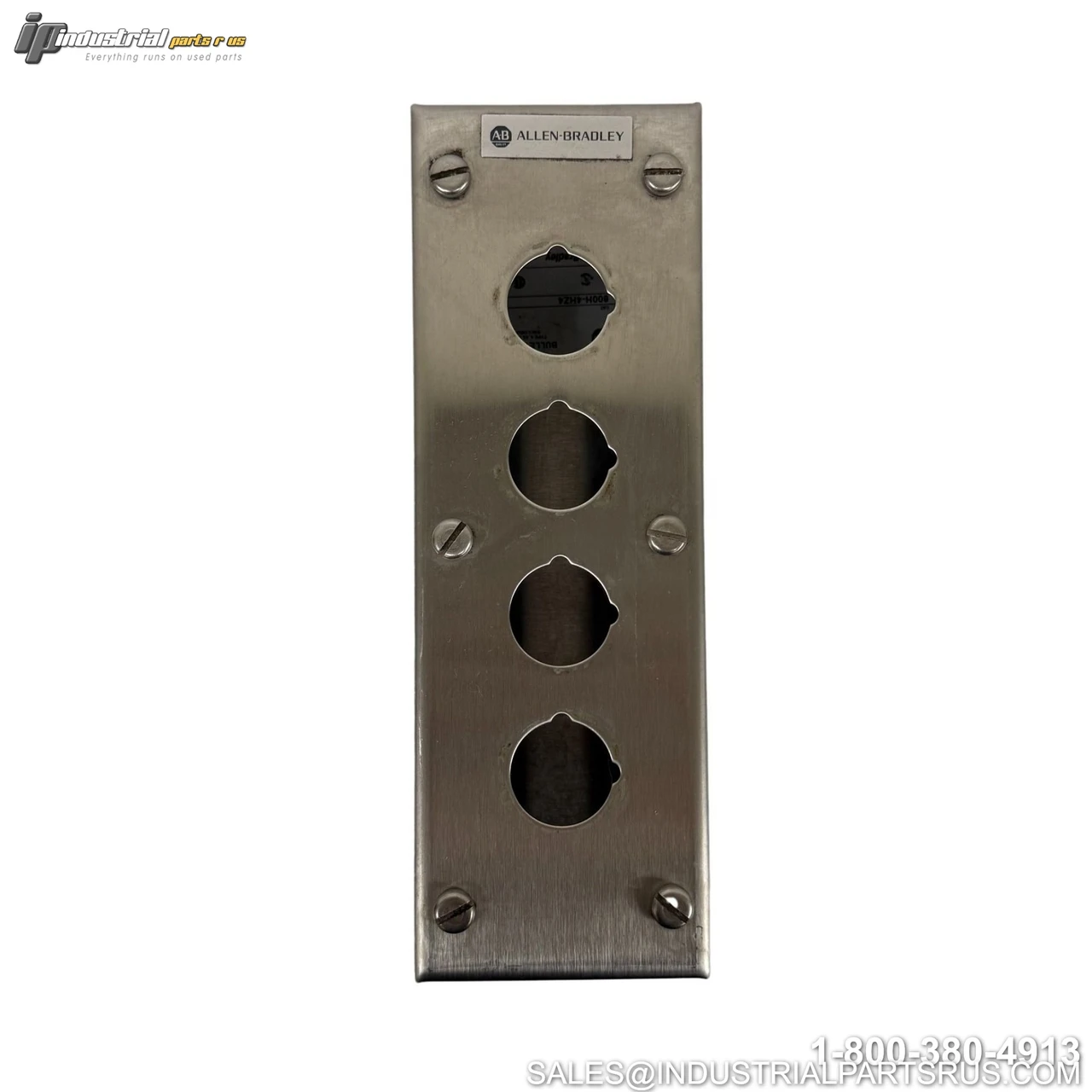

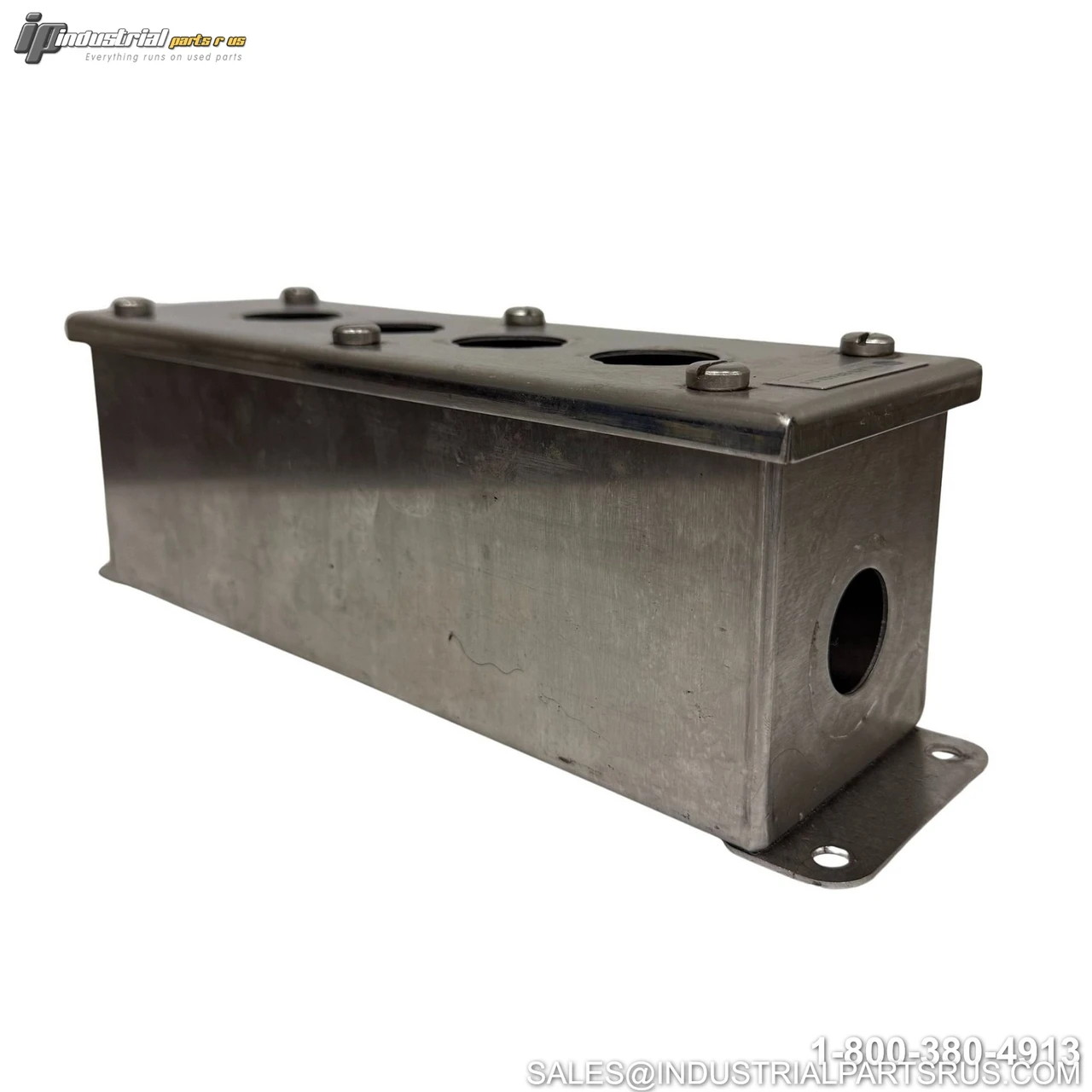

The Allen-Bradley 800H-4HZ4 is a 30.5 mm four-hole push button control station enclosure constructed from 304 stainless steel, designed for demanding industrial environments requiring NEMA Type 4, 4X, and 13 protection. It accommodates up to four 800H series 30 mm push button operators and features a bottom conduit entry with a 3/4-inch knockout hub. This enclosure is part of Rockwell Automation's Bulletin 800H product family and carries a wide range of international certifications including UL, CSA, CE, CUL, CCC, C-TICK, KC, and MARINE.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 800H-4HZ4 |
| Product Family / Sub-Brand | 800H |
| Product Type | Push Button Control Station Enclosure |
| Configuration | Four (4) 30mm Push Button Holes |
| Operator Size | 30.5 mm |
| Enclosure Material | 304 Stainless Steel |
| NEMA Rating | Type 4 / 4X / 13 |
| IP Rating | IP65 / IP66 |
| Conduit Entry | Bottom, 1 x 3/4 in. Knockout Hub |
| Height | 250 mm (9.84 in.) |
| Width | 80 mm (3.15 in.) |
| Depth | 50 mm (1.97 in.) |
| Weight | 3.56 lb (1.62 kg) |
| Operating Temperature | -40 to 55°C |
| Standards / Certifications | C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL |
| Compatible With | 800H 30mm Push Button Operators |
| Recommended Tightening Torque | 1.0–1.2 Nm (9–11 lb-in.) |
| Grounding | Grounding Screw Provided Inside Enclosure |
| Technical Publication | 800-TD009 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture United States
Material 304 Stainless Steel
Torque 1.0–1.2 Nm (9–11 lb-in.)
Ratio Four 30mm Push Button Holes
Manufacturer Allen-Bradley
Empty Weight 3.56 lb
Enclosure Type NEMA 4/4X/13
Part Number 800H-4HZ4
Controller Platform Bulletin 800H
Series 800H
Shelf I-17
Model 800H-4HZ4
MPN 800H-4HZ4
Type Push Button
