Product Description

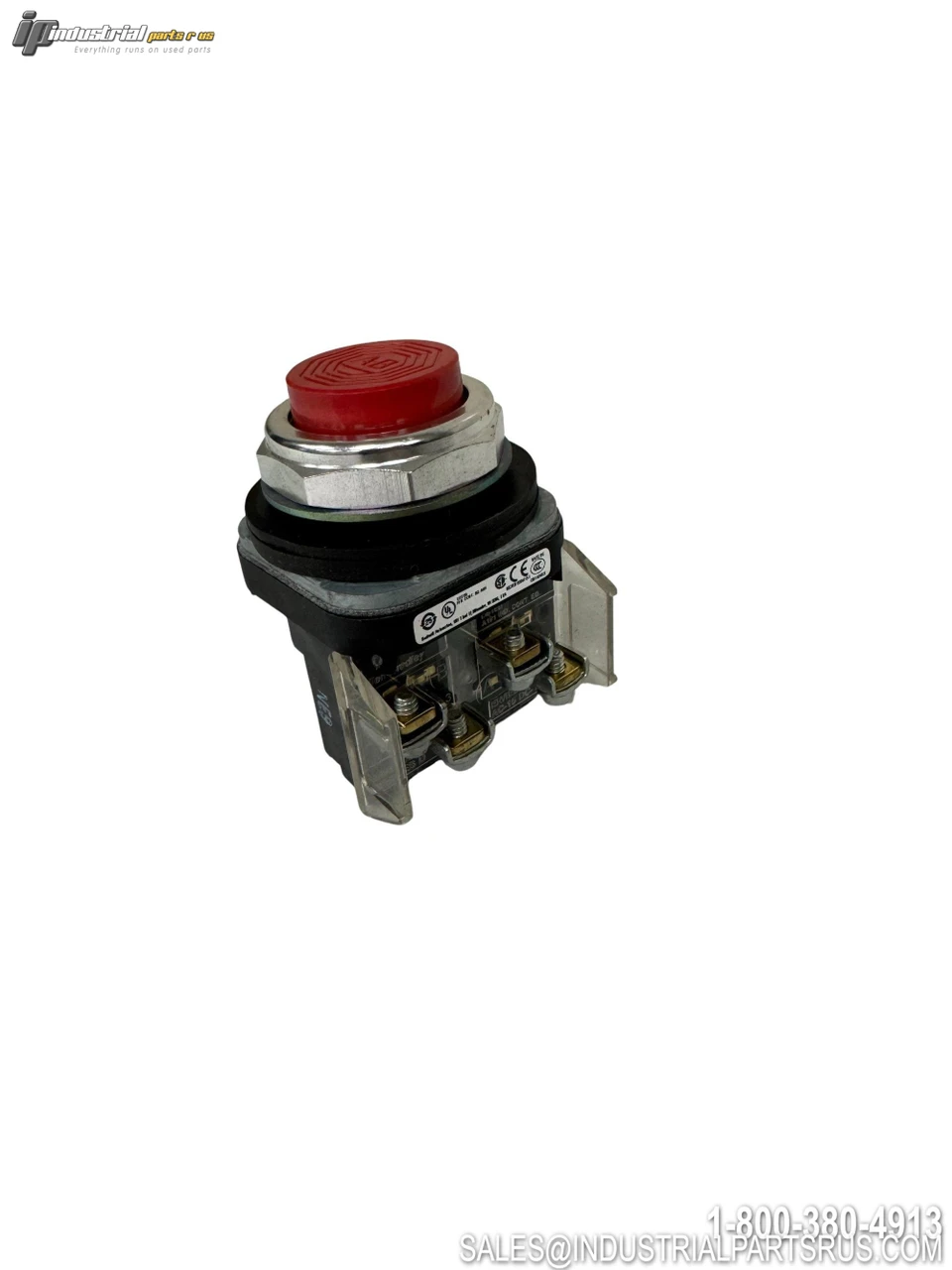

The Allen-Bradley 800T-86A is a 30 mm red push-pull mushroom head push button from the Bulletin 800T series, designed for demanding industrial control panel applications. It features a two-position maintained action with 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) contact block and carries a NEMA/UL Type 4/13 enclosure rating. The 800T series uses metal (die-cast zinc) construction and shares the standard 30 mm North American panel cutout used across the Bulletin 800T product family.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 800T-86A |
| Series | T |
| Product Type | Push-Pull Push Button |
| Bulletin | 800T |
| Operator Type | Push-Pull (Mushroom Head) |
| Button / Cap Color | Red |
| Number of Positions | 2 (Maintained) |
| Contact Configuration | 1 N.O. / 1 N.C. |
| Contact Block Type | Standard Shallow Block |
| Panel Cutout Diameter | 30 mm (30.5 mm) |
| NEMA / UL Enclosure Rating | Type 1 / 4 / 12 / 13 |
| IP Rating | IP65 |
| Body / Operator Material | Metal (Die-Cast Zinc) |
| Illuminated | No |
| Hazardous Location Rating | No (Standard) |
| Maximum Continuous Current (Ith) | 5 A |
| Voltage Rating | 600V AC |
| Electrical Design Life | 1,000,000 operations (at max. rated load) |
| Finger Safe Guards | No Guards |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Platform / Family | Bulletin 800T 30mm Push Button |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Cat
Enclosure Type NEMA Type 1/4/12/13
Part Number 800T-86A
Shelf J-48
Model 800T-86A
MPN 800T-86A
Type Push Button
