Product Description

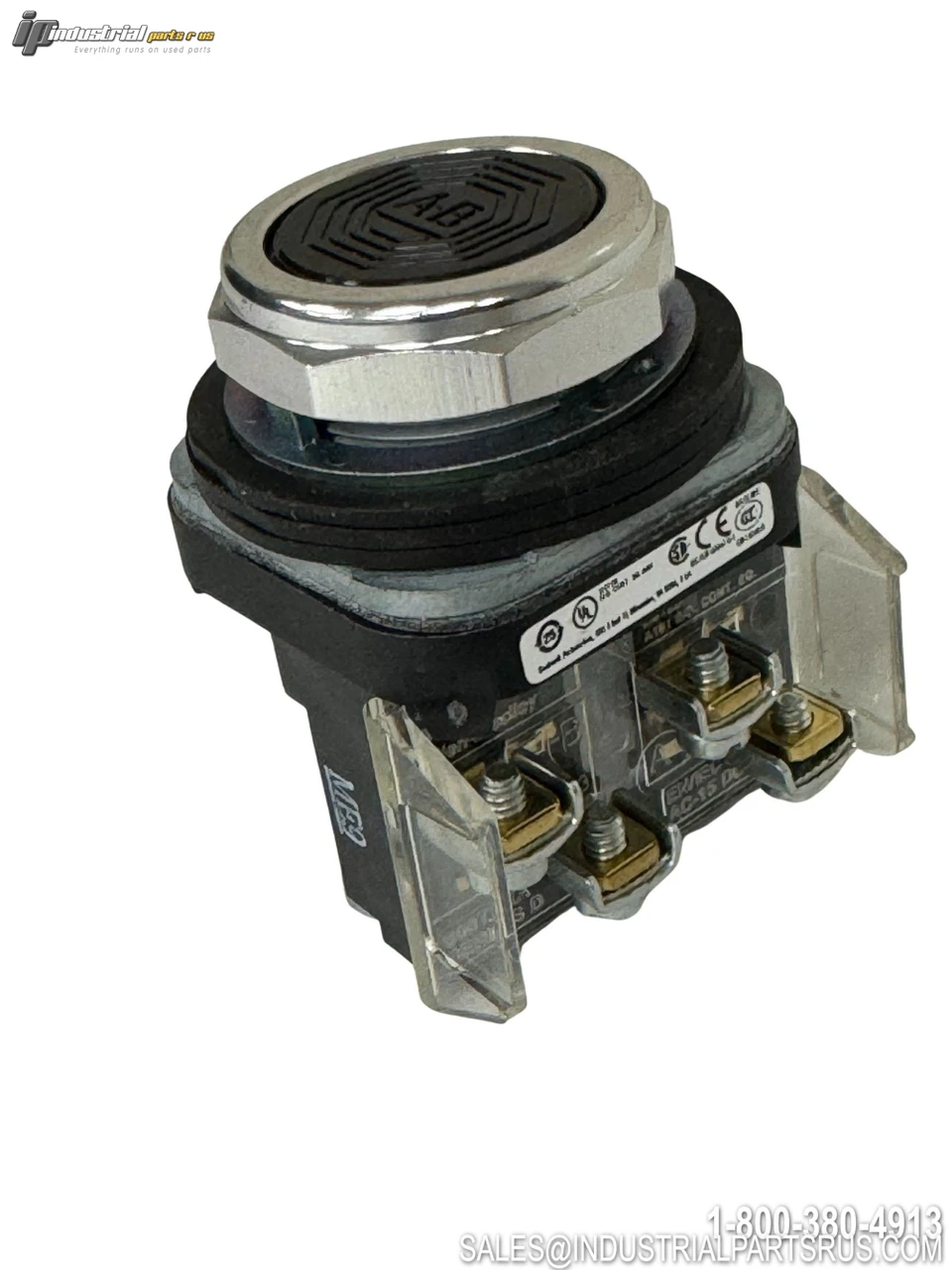

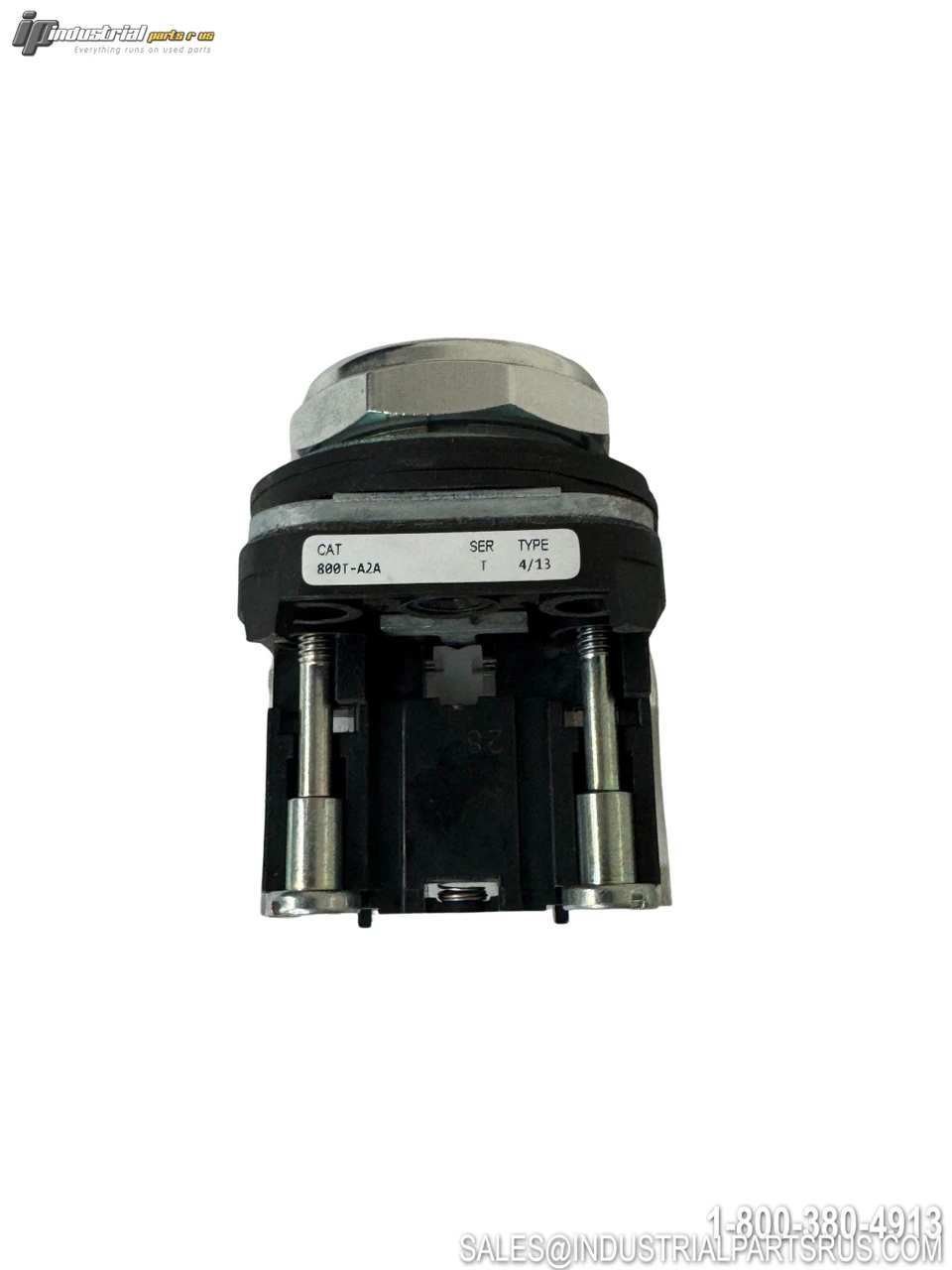

The Allen-Bradley 800T-A2A is a 30.5 mm non-illuminated, momentary-action push button from the Bulletin 800T heavy-duty metal operator series. It features a black flush head actuator, a die-cast zinc alloy operator bushing with diaphragm seal, and includes a standard 800T-XA contact block providing 1 Normally Open and 1 Normally Closed contacts on screw terminals. The unit is rated NEMA Type 4/13 (watertight and oiltight) and is designed for demanding industrial panel applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 800T-A2A |
| Manufacturer | Rockwell Automation |
| Product Series | Bulletin 800T |
| Product Type | Push Button |
| Operator Action | Momentary |
| Operator Type / Actuator | Flush Head |
| Illumination | Non-Illuminated |
| Color | Black |
| Operator Diameter | 30.5 mm |
| Panel Cutout Diameter | 30.6 mm |
| Contact Configuration | 1 NO / 1 NC (Standard) |
| Included Contact Block | 800T-XA |
| Contact Rating (AC) | 10A / 600VAC |
| Contact Rating (DC) | 2.5A / 600VDC |
| Voltage Rating | 600V |
| Current Rating | 10A |
| Terminal Type | Screw Terminals |
| NEMA Enclosure Rating | Type 4/13 (Watertight / Oiltight) |
| Bezel / Housing Material | Metal — Die-Cast Zinc Alloy |
| Cap / Button Material | Thermoplastic Polyester Resin |
| Seal Type | Diaphragm Seal (Riveted Assembly) |
| Block Type | Standard |
| Special Head | None |
| Guards on Terminals | None |
| Certifications | CCC, CE, CSA, cUL, KC, Marine, UL |
| Minimum Enclosure Size | 110 mm × 80 mm × 70 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Cat
Enclosure Type NEMA Type 4/13 (Watertight / Oiltight)
Part Number 800T-A2A
Shelf J-30
Model 800T-A2A
MPN 800T-A2A
Type Push Button
