Product Description

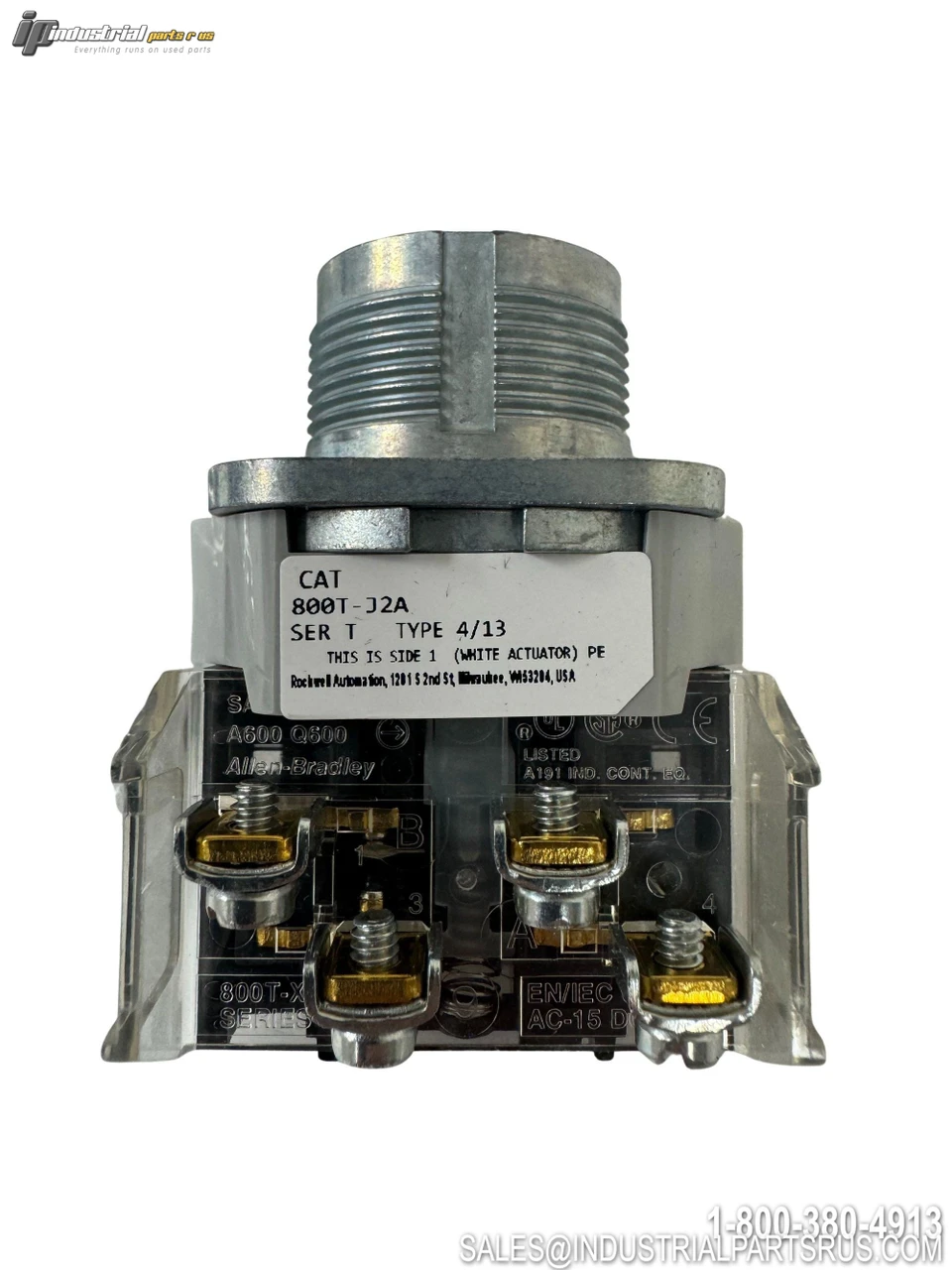

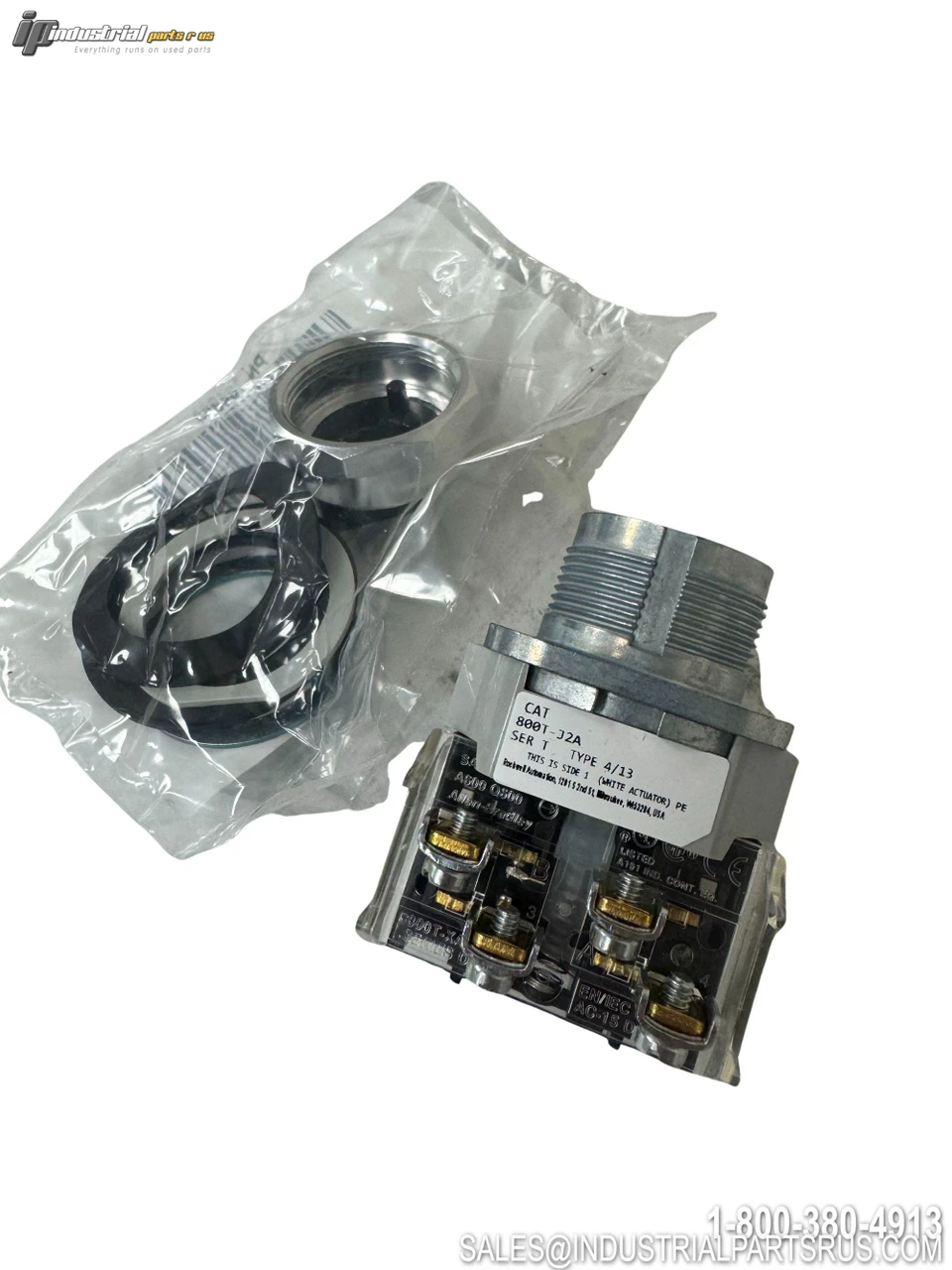

The Allen-Bradley 800T-J2A is a 30.5mm three-position maintained selector switch from the 800T Bulletin series, designed for industrial panel control applications. It features a standard black knob with white insert and a KB7 cam mechanism, providing stable latched switching in all three positions with 1 normally open and 1 normally closed contact block. Rated for 600V and 10A AC, this non-illuminated device meets NEMA Type 4/13 enclosure standards and carries UL, CSA, CE, CCC, KC, C-TICK, and Marine certifications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model / Part Number | 800T-J2A |
| Product Type | 3-Position Selector Switch |
| Series / Platform | 800T (30mm Operator Devices) |
| Mounting Hole Diameter | 30.5 mm |
| Number of Positions | 3 |
| Operator Function | Maintained |
| Head / Actuator Type | Standard Knob |
| Knob Color | Black with White Insert |
| Illuminated | No (Non-Illuminated) |
| Cam Type | KB7 |
| Contact Configuration | 1 NO, 1 NC |
| Contact Type | Standard Contacts |
| Current Rating (AC) | 10 A |
| Current Rating (DC) | 2.5 A |
| Voltage Rating | 120–600 V |
| Terminal Type | Screw |
| Enclosure / NEMA Rating | NEMA Type 4/13 (IEC IP65) |
| Guard on Terminals | No Guards |
| Mechanical Life | 1,000,000 cycles |
| Operating Temperature | -40°C to +55°C |
| Certifications / Standards | UL, CUL, CSA, CE, CCC, KC, C-TICK, Marine |
| Package | Device with Packaging |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Allen-Bradley
Enclosure Type NEMA Type 4/13
Part Number 800T-J2A
Shelf J-34
Model 800T-J2A
MPN 800T-J2A
Type Selector Switch
