Product Description

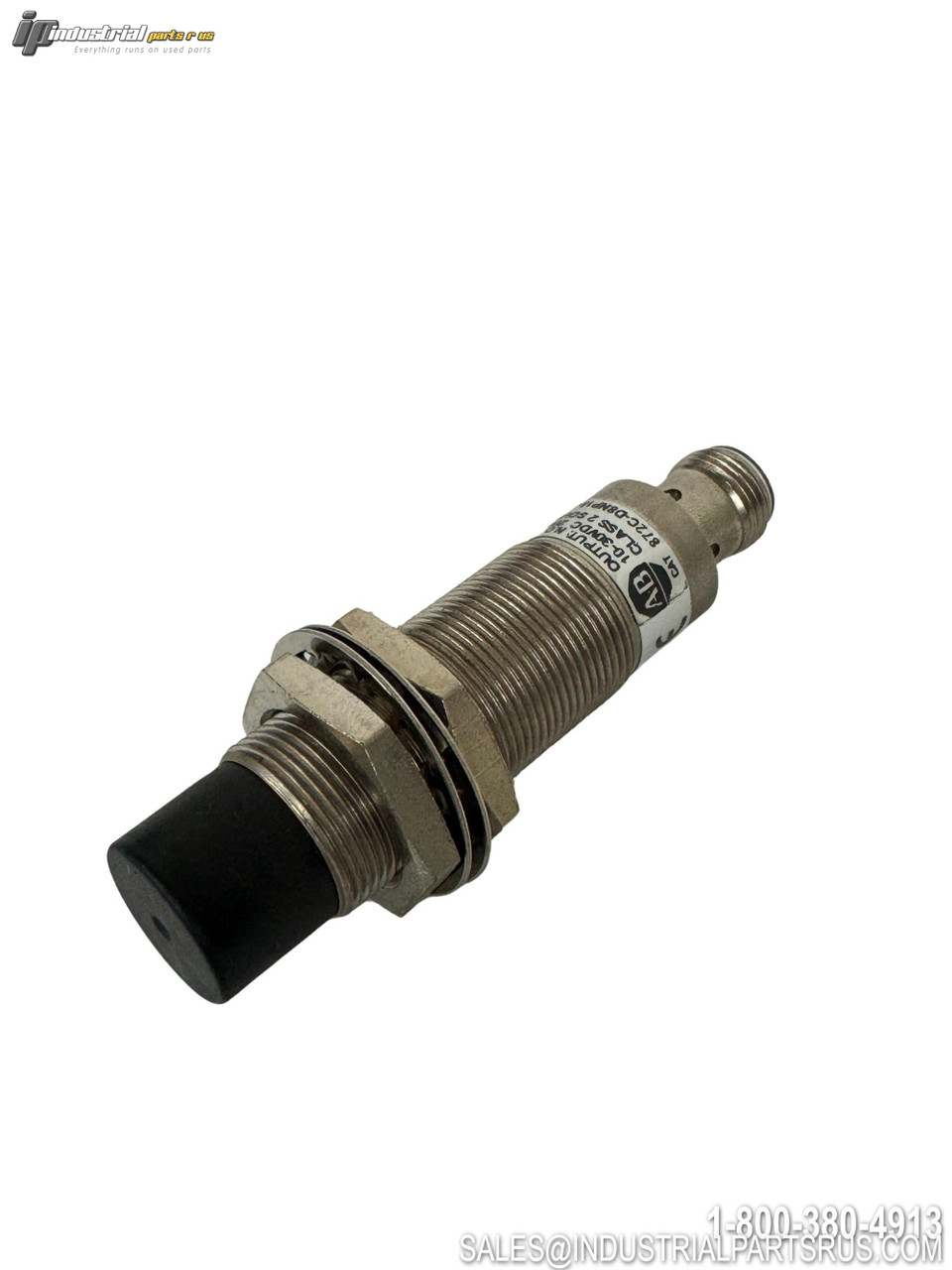

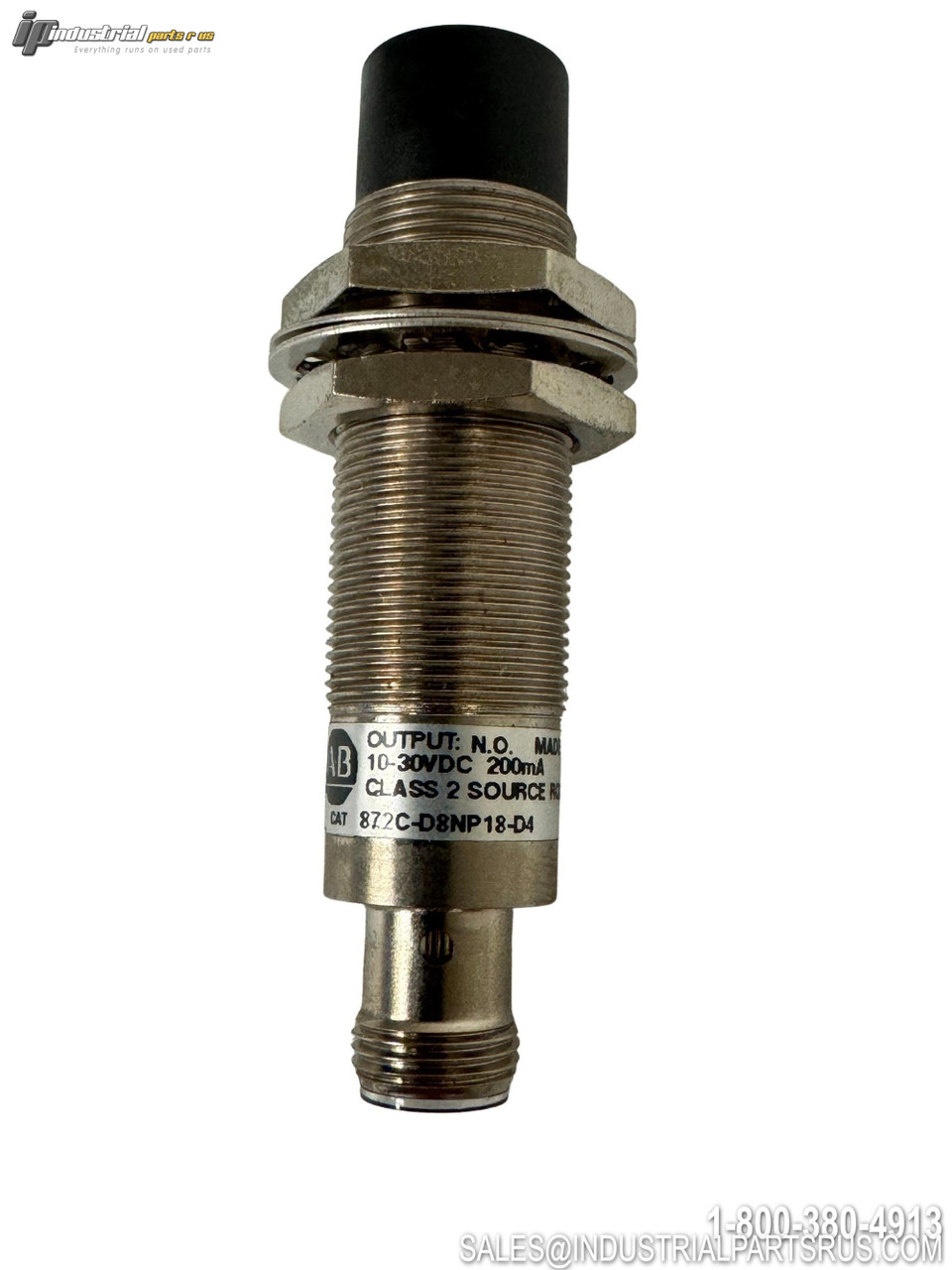

The Allen-Bradley 872C-D8NP18-D4 is an 18mm barrel inductive proximity sensor from the WorldProx series designed for non-contact detection of metallic objects in industrial automation applications. This unshielded sensor provides an 8mm sensing distance with a PNP normally open output configuration and operates on 10-30VDC power supply.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley |
| Model/Part Number | 872C-D8NP18-D4 |
| Product Type | Inductive Proximity Sensor |
| Series | 872C WorldProx |
| Barrel Diameter | 18mm |
| Sensing Distance | 8mm |
| Output Type | PNP (Source) |
| Output Function | Normally Open (N.O.) |
| Operating Voltage | 10-30VDC |
| Maximum Load Current | 200mA |
| Operating Frequency | 1500Hz |
| Wire Configuration | 3-Wire DC |
| Connection Type | 4-Pin DC Micro QD (M12) |
| Housing Material | Nickel Plated Brass |
| Barrel Type | Standard Cylindrical |
| Shielding | Unshielded |
| Mounting Type | Threaded (M18) |
| Target Type | Metallic Objects |
| Certifications | CE, UL, CUL, RCM, KC, CCC |
| Lifecycle Status | Active |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Inductive
Operating Distance 8mm
Full Load Amps 200mA
Manufacturer Allen-Bradley
Part Number 872C-D8NP18-D4
Shelf O-5
Model 872C-D8NP18-D4
MPN 872C-D8NP18-D4
Type Inductive Proximity Sensor
