Product Description

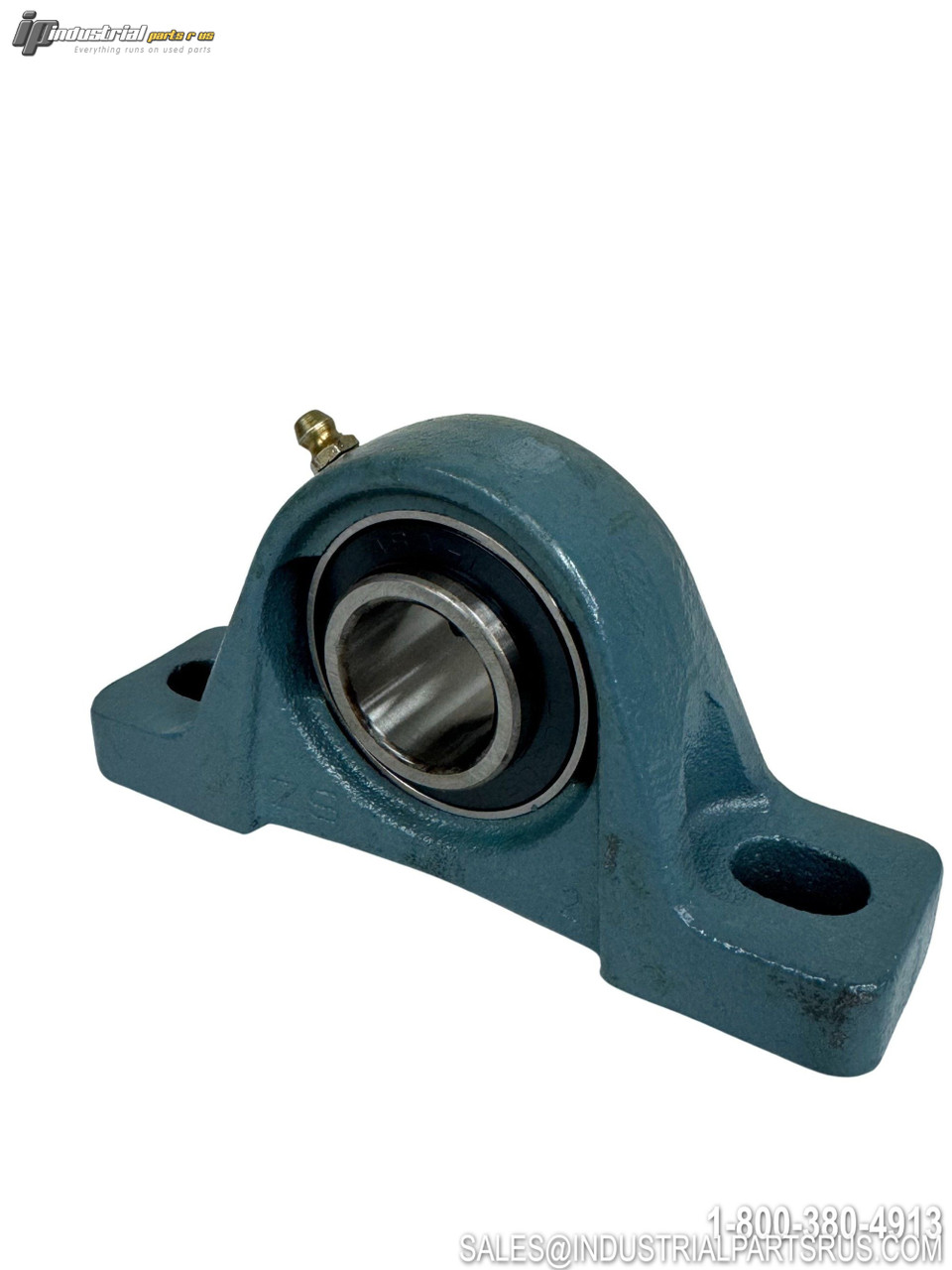

The AMI UCP205 is a set screw locking pillow block bearing unit designed for reliable shaft support in industrial applications. This metric bearing features a 25mm bore diameter and cast iron housing for durability in conveyor systems, machinery, and general industrial equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AMI |
| Model/Part Number | UCP205 |
| Bore Diameter | 25mm |
| Mounting Type | 2-Bolt Base |
| Housing Material | Cast Iron |
| Locking Device | Set Screw |
| Overall Height | 70mm |
| Overall Length | 140mm |
| Base Width | 38mm |
| Overall Width | 38.7mm |
| Bolt Size | M10 |
| Base to Bore Centerline | 36.50mm |
| Bolt Center to Center | 95-114mm |
| Dynamic Load Rating | 1430 kgf |
| Static Load Rating | 800 kgf |
| Series | UCP200 |
| Insert Bearing | UC205 |
| Seal Type | Contact with Slinger |
| Lubrication | Lubrication Fitting |
| Number of Mounting Holes | 2 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material 52100 Chrome Steel
Manufacturer Ami
Part Number UCP205
Shelf GS-35
Bore Diameter 25 mm
Model UCP205
MPN UCP205
Type Pillow Block
