Product Description

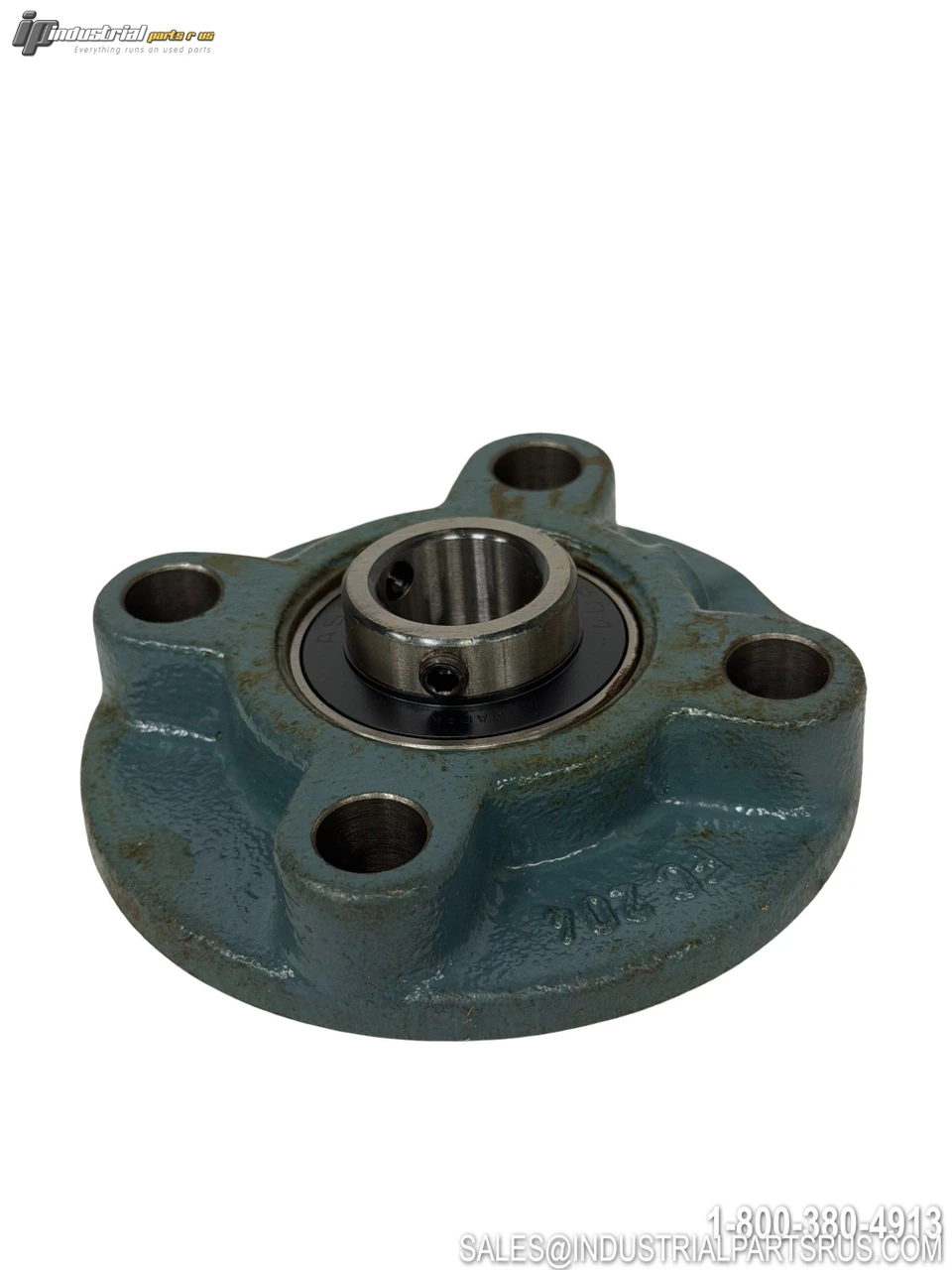

The AMI UCFC204 is a 4-bolt piloted flange mounted ball bearing unit featuring a 20mm bore diameter and cast iron housing. This standard duty pillow block bearing includes contact seals with flingers for protection against contaminants and is designed for reliable performance in industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Ami |
| Model/Part Number | Ucfc204 |
| Manufacturer | AMI Bearings, Inc. |
| Bearing Insert Type | UC204 |
| Bore Diameter | 20 mm |
| Housing Material | Cast Iron |
| Bearing Material | Chrome Steel |
| Mounting Type | 4-Bolt Piloted Flange |
| Locking Device | Set Screw |
| Overall Length | 100 mm |
| Bolt Circle Diameter | 78 mm |
| Pilot Diameter | 62 mm |
| Unit Standoff | 28.3 mm |
| Bolt Size | M10 |
| Dynamic Load Rating | 1310 kgf (12.8 kN) |
| Static Load Rating | 680 kgf (6.6 kN) |
| Bearing Insert | UC204 |
| Housing Number | FC204 |
| Series | UCFC |
| Seal Type | Contact Seal with Flinger |
| Duty Type | Standard Duty |
| Length Through Bore | 31 mm |
| Weight | 0.79 kg |
| Expansion Type | Non-Expansion (Fixed) |
| Lubrication | Relubricatable |
| Bore Type | Straight |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Chrome Steel
Manufacturer Ami
Part Number UCFC204
Shelf GS 7
Bore Diameter 20 mm
Model UCFC204
MPN UCFC204
Type Pillow Block
