Product Description

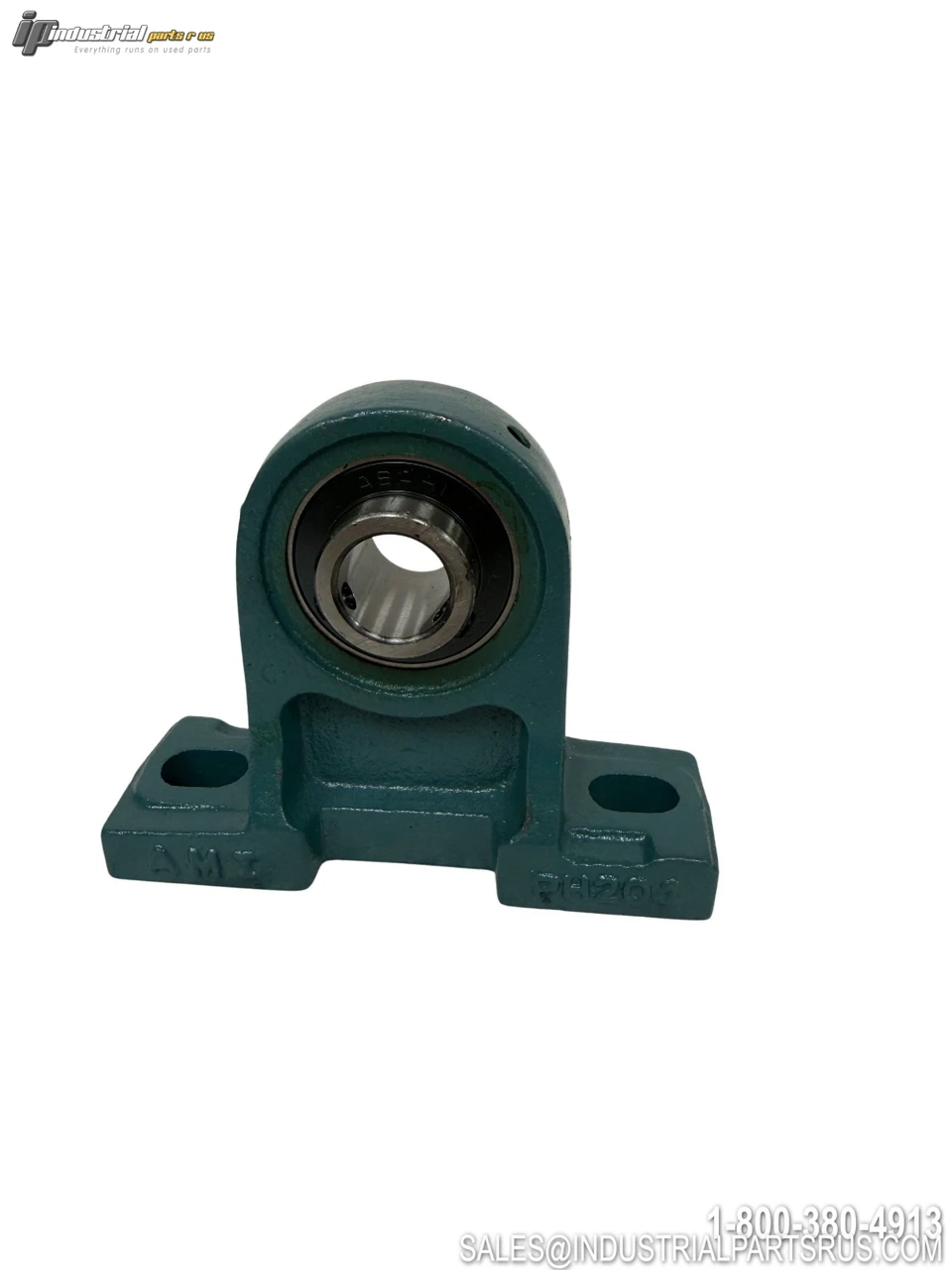

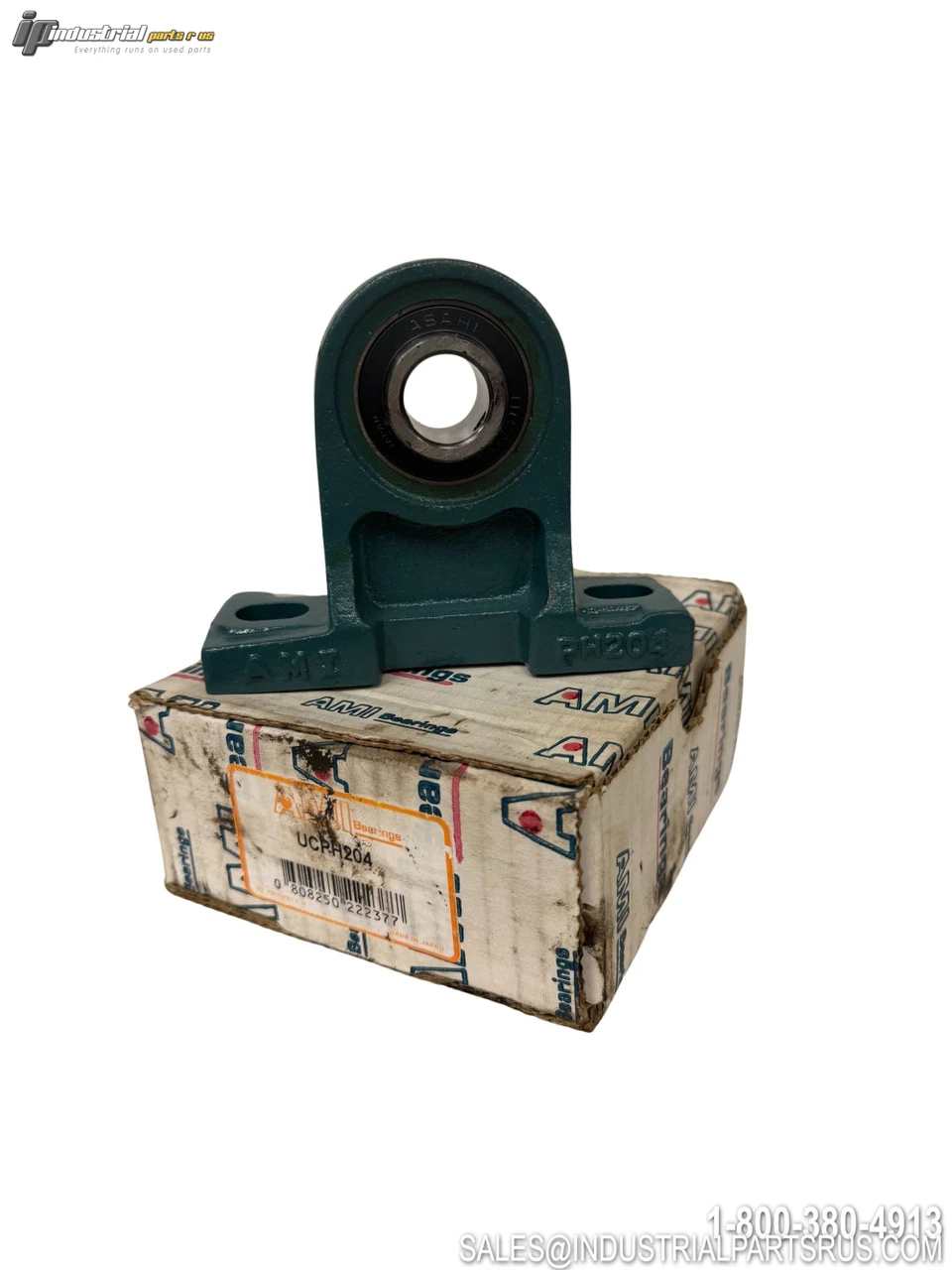

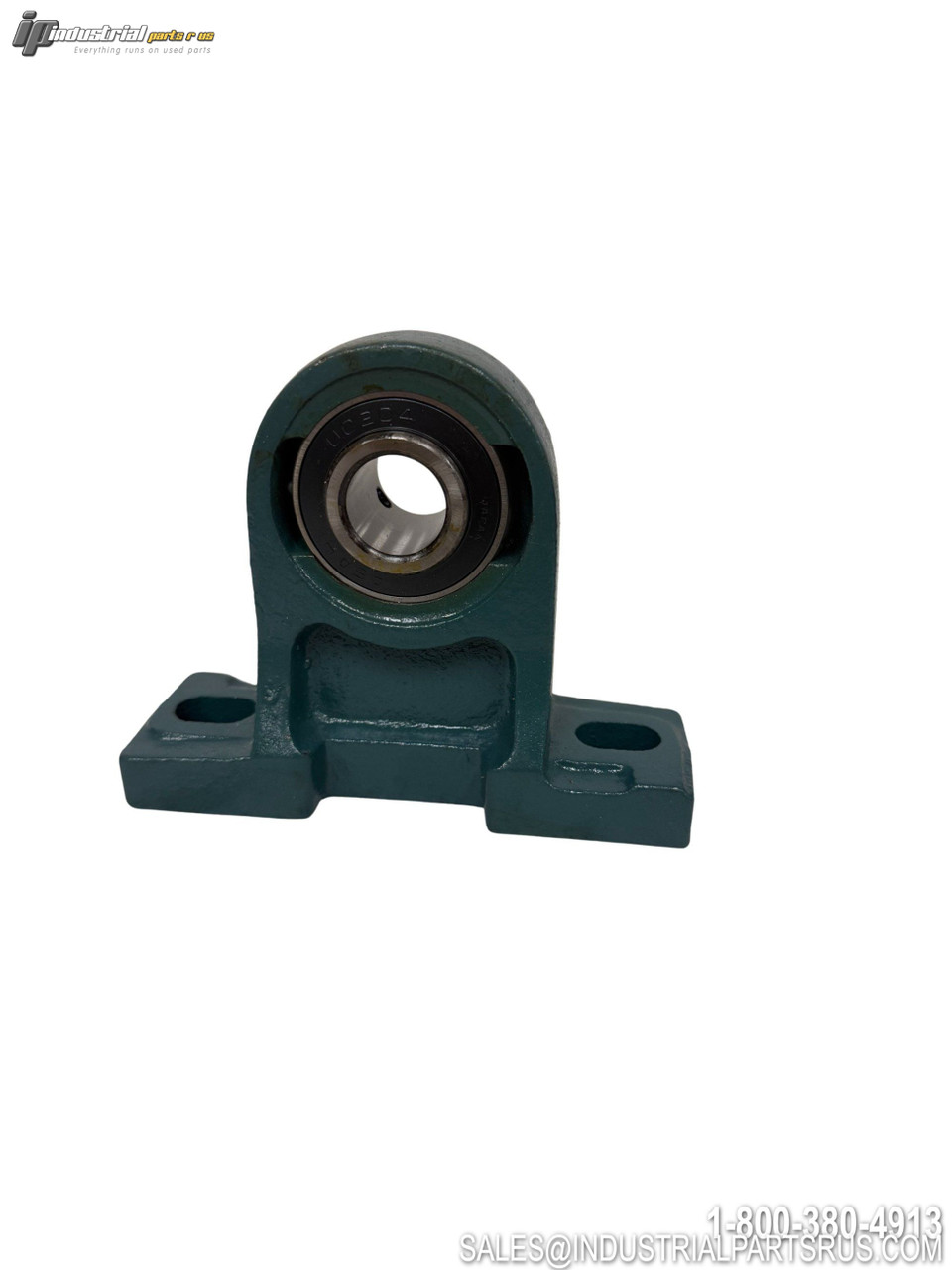

The AMI UCPH204 is a Pedestal High Center Height Pillow Block Bearing Unit with a Set Screw Insert Ball Bearing. This unit features a combination of a Cast Iron housing and a Chrome Steel Set Screw Insert Ball Bearing with two set screws that can be tightened onto a shaft. The set screw placement is at a 90 degree angle to optimize balance between holding power and inner ring distortion.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | AMI |
| Model/Part Number | UCPH204 |
| Product Type | Pillow Block |
| Series | UCPH200 |
| Bore Diameter | 20mm |
| Housing Material | Cast Iron |
| Housing Type | Pedestal Base High Center Height |
| Bearing Type | Chrome Steel Set Screw Insert Ball Bearing |
| Insert Bearing | UC204 |
| Housing Part | PH204 |
| Locking Mechanism | Set Screw |
| Set Screws | Two at 90° Angle |
| Bolt Holes | 2 |
| Bolt Spacing | 95mm |
| Weight | 0.96kg |
| Lubrication | Pre-lubricated with Grease |
| Grease Feed | Yes (Re-lubricatable) |
| Applications | Agriculture, Automotive, Construction, Industrial Equipment |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Material Chrome Steel
Manufacturer Ami
Part Number UCPH204
Shelf K-64
Bore Diameter 20 mm
Model UCPH204
MPN UCPH204
Type Pillow Block
