Product Description

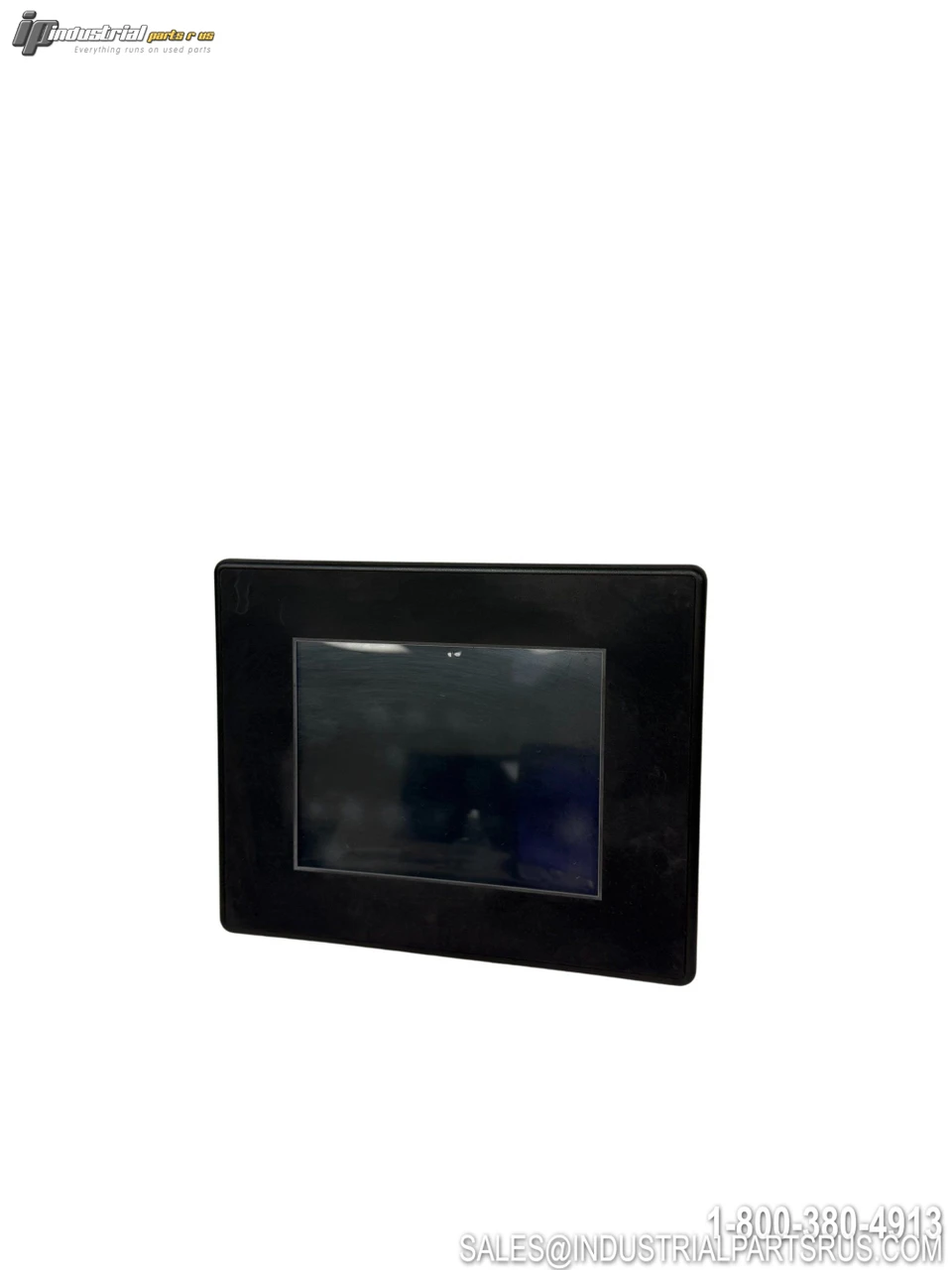

The Automation Direct EA7-T8C+12X19B022 is a C-More EA7 Series industrial Human-Machine Interface (HMI) touch panel featuring an 8.4-inch full-color TFT LCD display with 640x480 VGA resolution and over 64,000 colors. It operates on 24 VDC and supports serial (RS-232/422/485), Ethernet 10/100 Base-T, and dual USB 2.0 ports for flexible integration with PLCs and control systems. Compatible controller platforms include AutomationDirect DirectLOGIC, CLICK, Do-more/BRX, and Productivity Series, as well as Allen-Bradley, GE, Mitsubishi, Omron, and Modicon systems. The suffix "+12X19B022" appended to the catalog number is an Automation Direct internal manufacturing lot/date tracking code and does not denote a distinct variant — all technical specifications are identical to the standard EA7-T8C. This unit has been discontinued by the manufacturer; the current replacement is the EA9-T8CL.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Automation Direct |
| Model / Part Number | EA7-T8C+12X19B022 |
| Base Catalog Number | EA7-T8C |
| Series | C-More EA7 Series |
| Product Type | HMI / Touch Panel / Operator Interface |
| Display Size | 8.4 inch |
| Display Type | Color TFT LCD |
| Resolution | 640 x 480 pixels (VGA) |
| Colors | 64,000+ colors |
| Backlight | LED |
| Touchscreen Type | Analog resistive (single-point touch) |
| Supply Voltage | 24 VDC (dedicated switching power supply, min 1.5A) |
| Power Consumption | 15 Watts |
| Serial Port | 1x RS-232/422/485 (15-pin D-sub) |
| Ethernet Port | 1x 10/100 Mbps Base-T |
| USB Ports | 2x USB 2.0 (1x Type A, 1x Type B) |
| Memory Card Slot | 1x CompactFlash (CF) card |
| Project Storage Memory | 10 MB onboard |
| Programming Method | Via Ethernet or USB (C-more Programming Software) |
| Communication Protocols | RS-232, RS-422/485, Ethernet 10/100 Base-T |
| Built-in Features | Web server, e-mail client, FTP client/server, trend data logging, event manager |
| Audio | Line Out (stereo) — requires external amplifier and speaker |
| NEMA Rating | NEMA 4 / 4X |
| IP Rating | IP65 |
| Depth (rear of panel) | 3.157 in (80.2 mm) |
| Internal Battery | CR2354 / D2-BAT-1 (real-time clock backup) |
| EZTouch Compatibility | Drop-in replacement for EZ-S8C-F, EZ-S8C-FS, EZ-S8C-FST |
| Recommended Replacement | EA9-T8CL |
| Manufacturer Status | Discontinued |
| Weight | 3.0 lbs |
| Agency Approvals | UL, cUL |
